无机盐工业 ›› 2020, Vol. 52 ›› Issue (8): 57-62.doi: 10.11962/1006-4990.2019-0505

• 研究与开发 • 上一篇    下一篇

采用超高分子量聚乙烯过滤介质强化过滤过程的研究

胡宏韬1,宋丽健1,2,王士勇2(),吴芳2,马晓宇2,徐淑惠2

  1. 1.上海应用技术大学,上海 201418
    2.上海化工研究院有限公司
  • 收稿日期:2020-02-18 出版日期:2020-08-10 发布日期:2020-08-12
  • 通讯作者: 王士勇
  • 作者简介:胡宏韬(1964— ),男,博士副教授,主要研究方向为水处理技术及环境修复,已发表论文30余篇。
  • 基金资助:
    上海市科委技术标准专项项目《颗粒污染物控制用高效过滤材料性能的研究及相关标准的制定》(17DZ2202800)

Study on enhanced filtration process used by UHMWPE filter media

Hu Hongtao1,Song Lijian1,2,Wang Shiyong2(),Wu Fang2,Ma Xiaoyu2,Xu Shuhui2

  1. 1. Shanghai Institute of Technology,Shanghai 201418,China
    2. Shanghai Research Institute of Chemical Industry
  • Received:2020-02-18 Online:2020-08-10 Published:2020-08-12
  • Contact: Wang Shiyong

摘要:

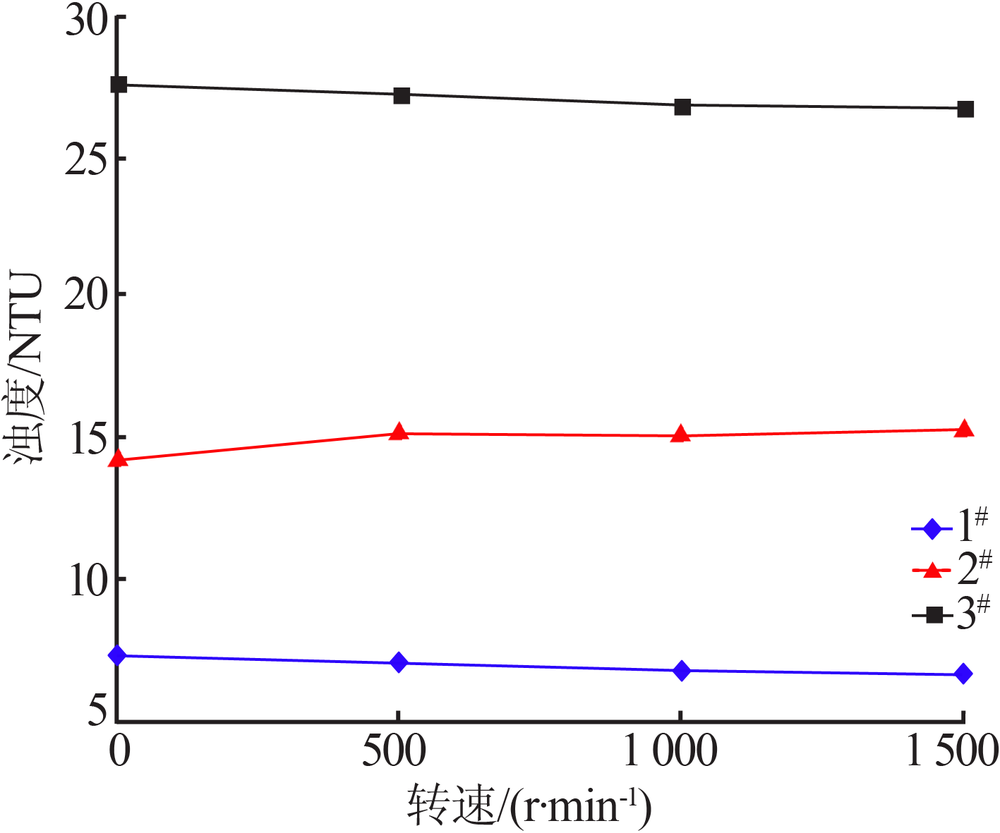

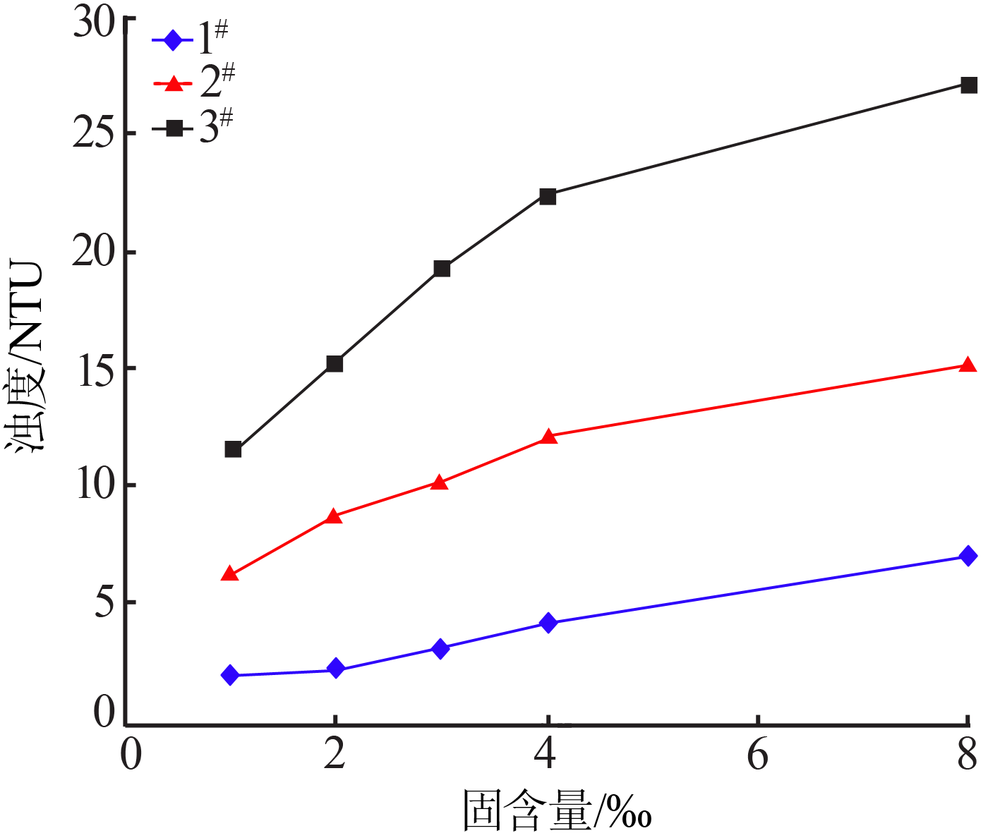

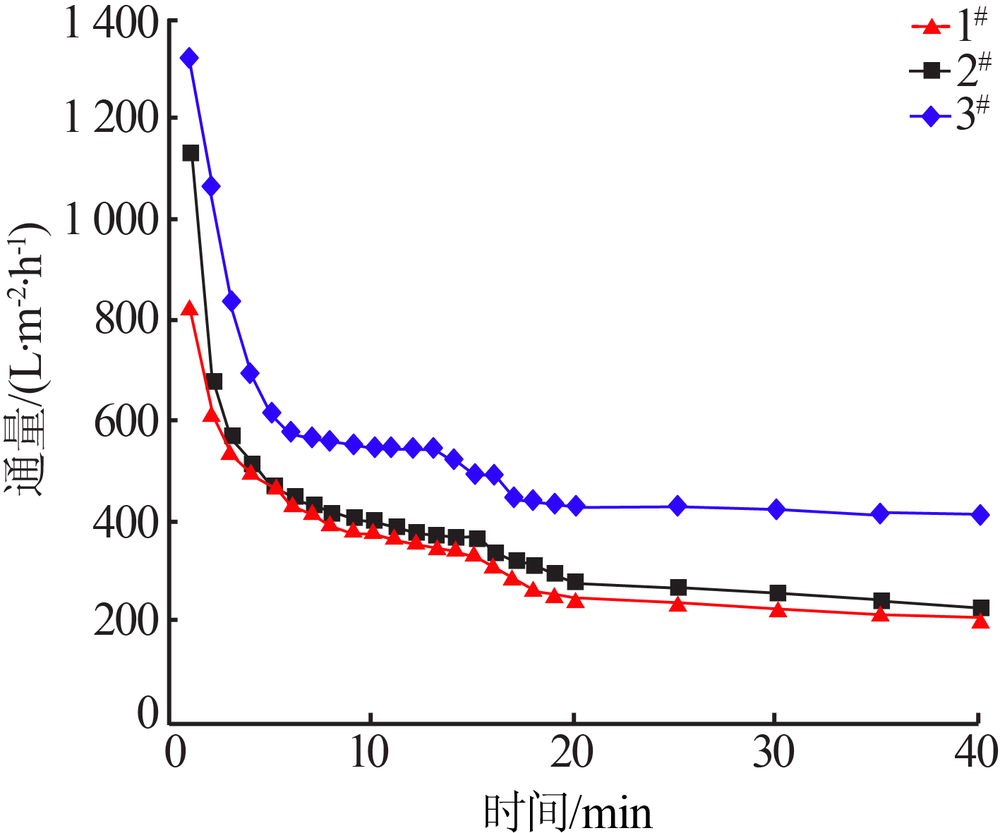

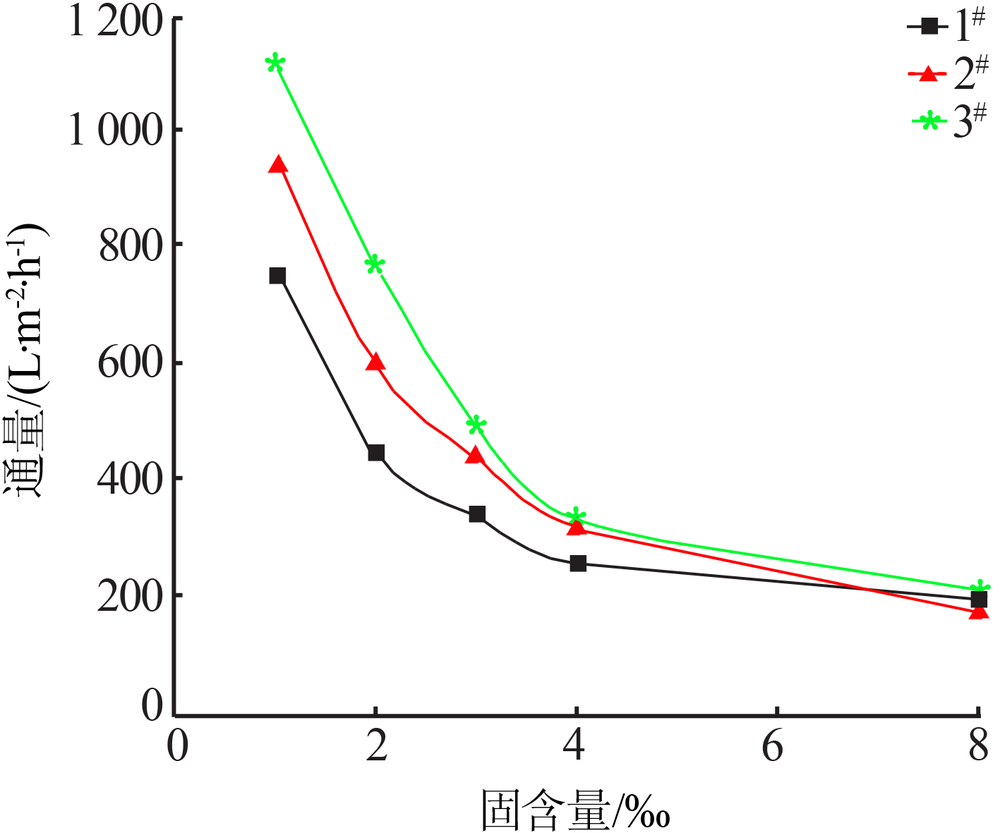

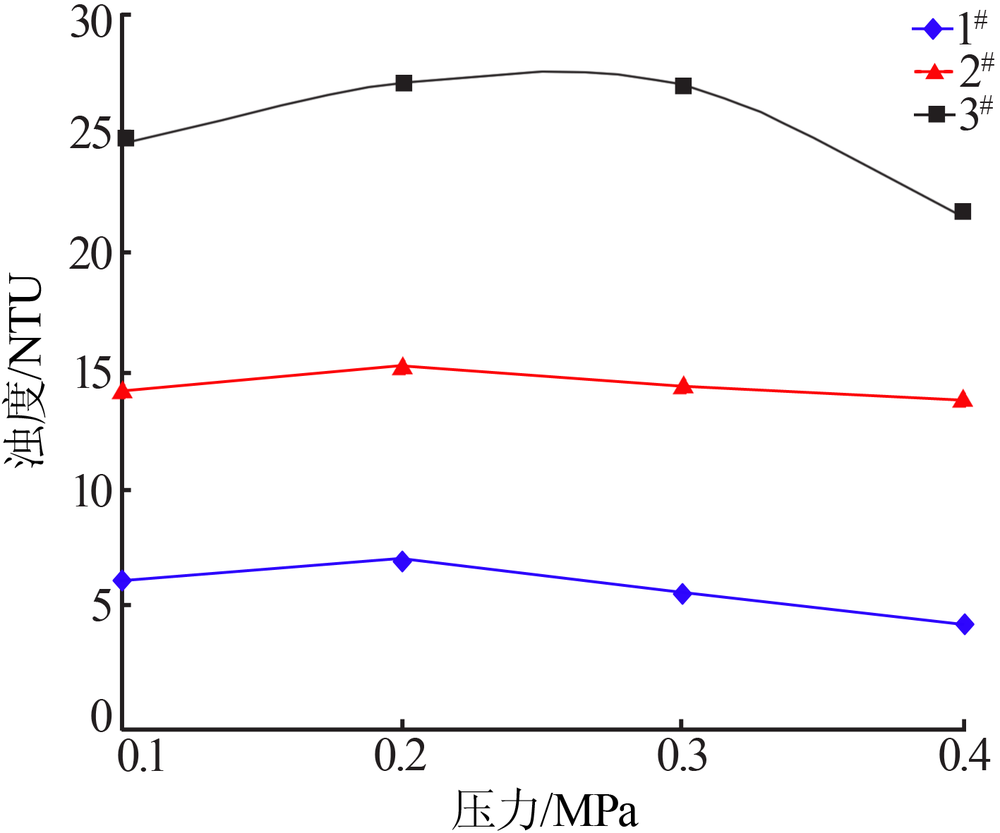

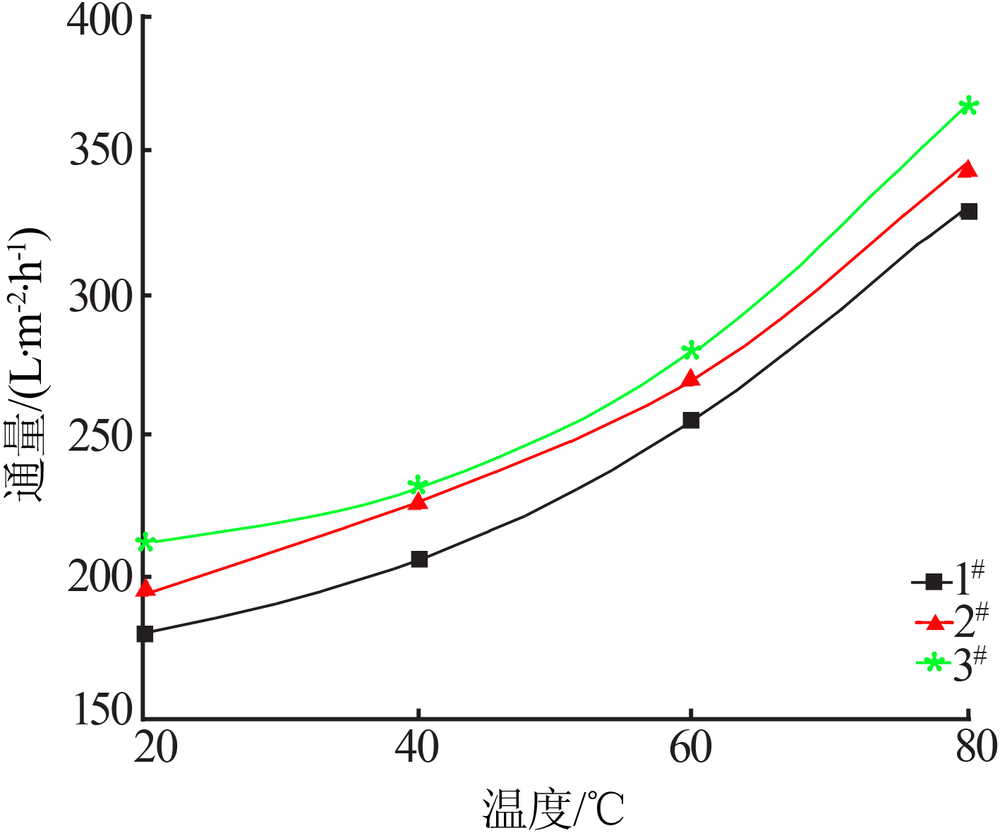

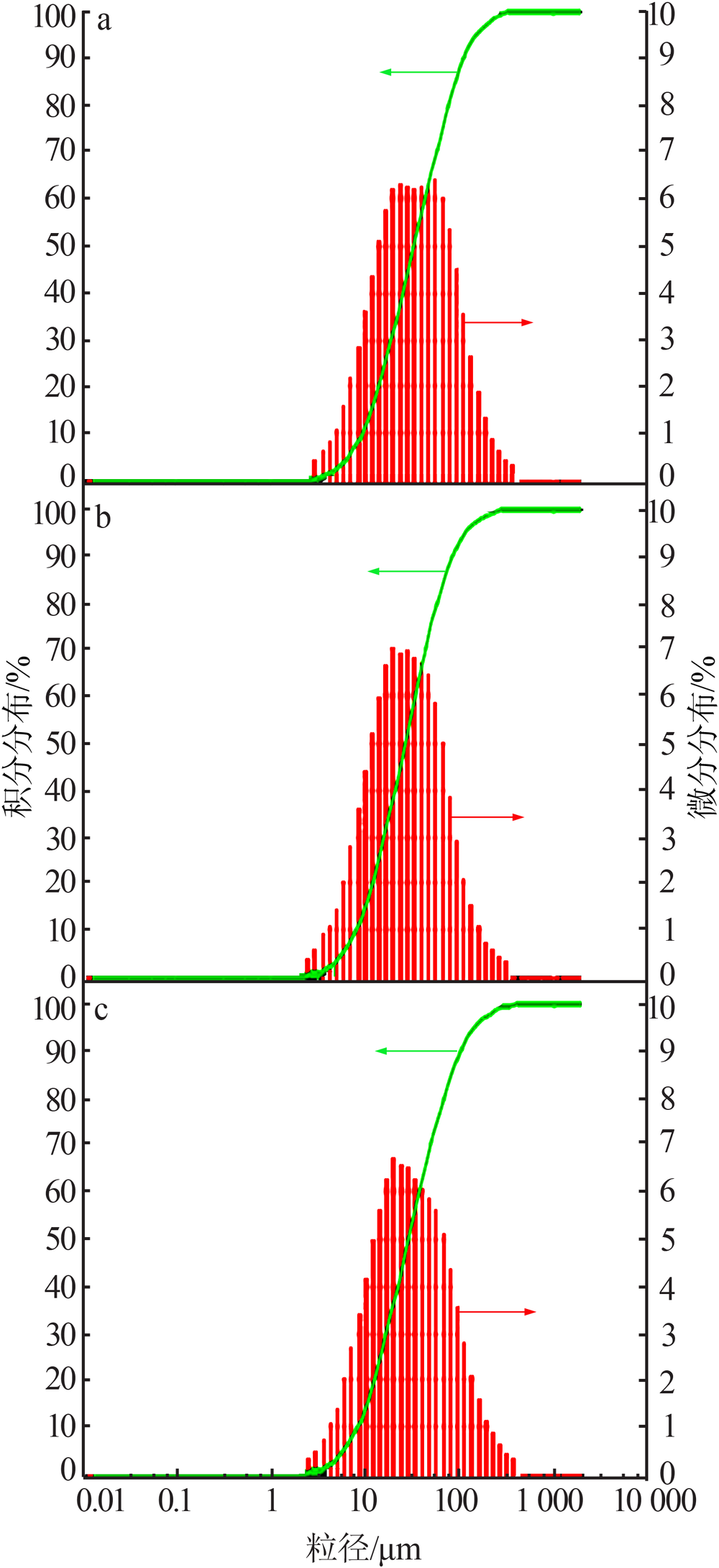

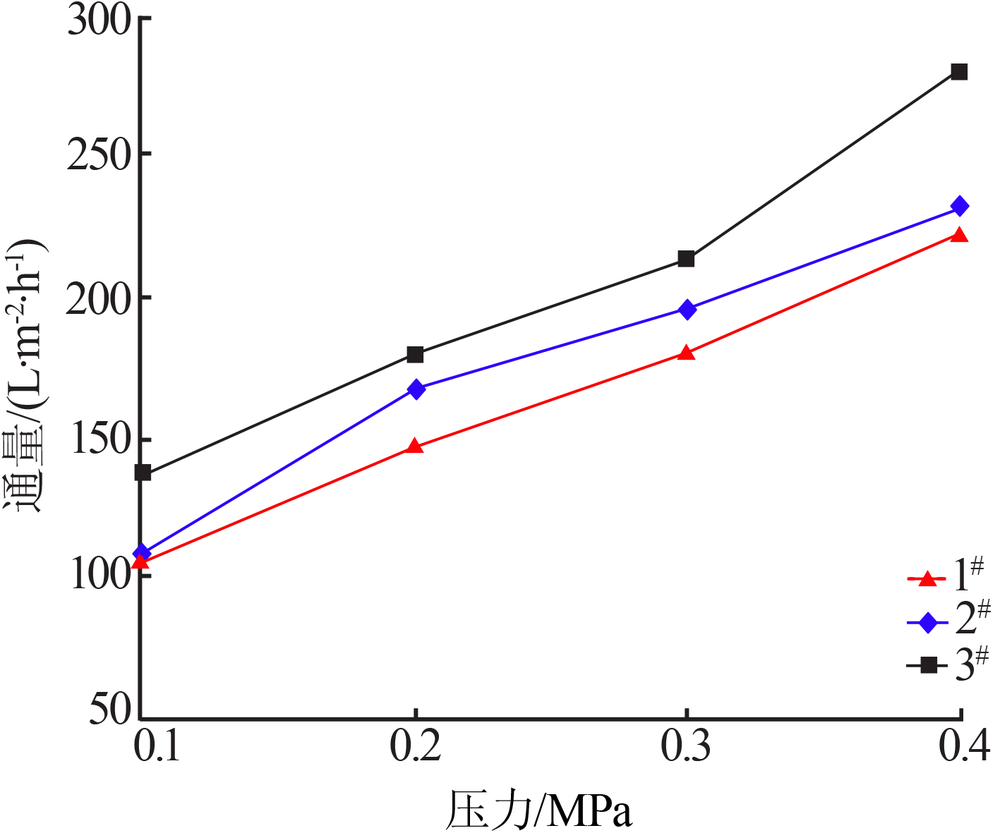

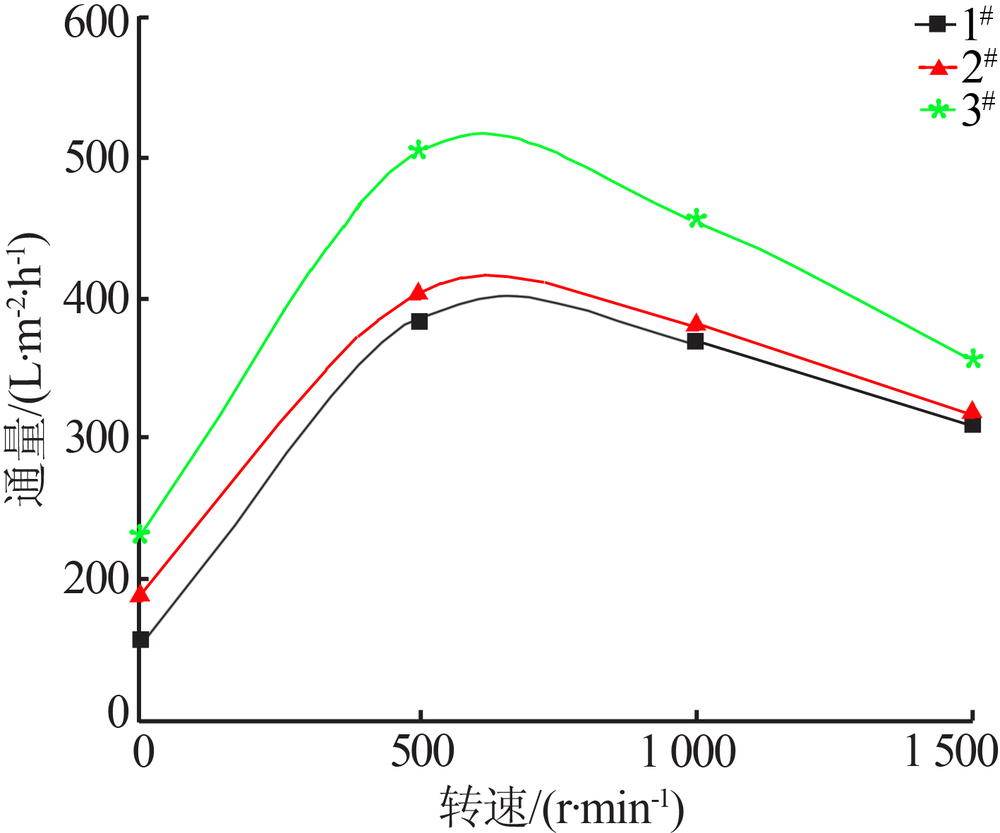

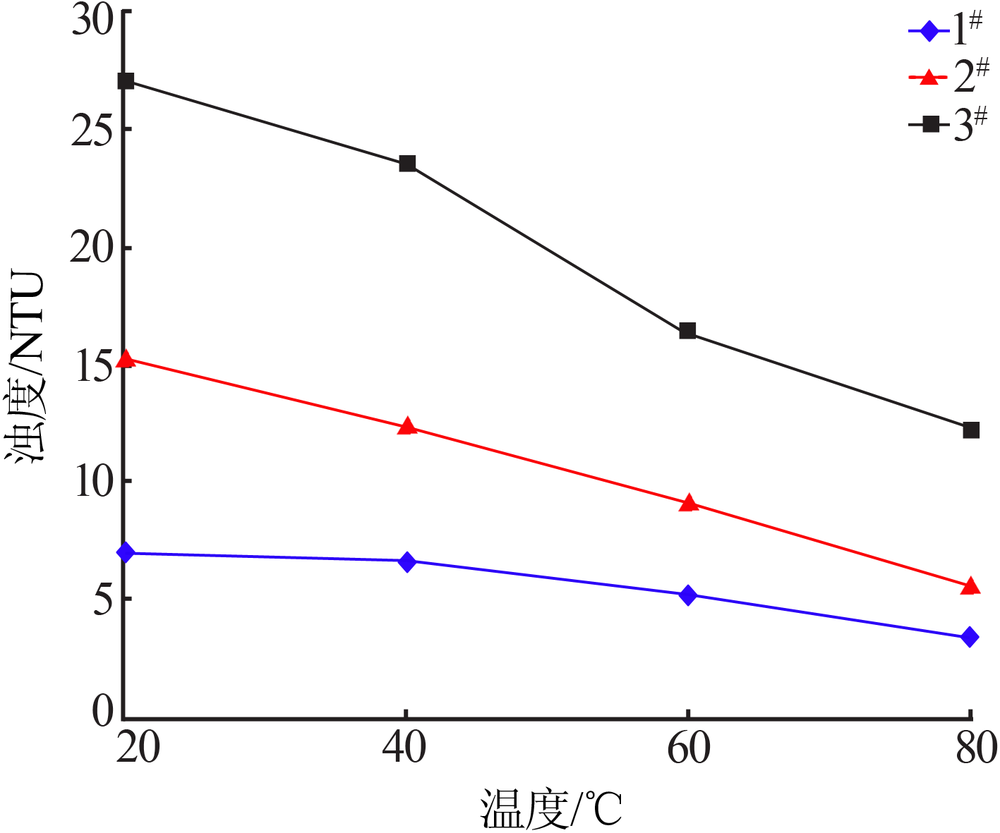

采用颗粒烧结法制备的超高分子量聚乙烯过滤介质,对用途广泛、难过滤的一种无机盐醋酸钙物料做了动态强化过滤过程研究。在对3种超高分子量聚乙烯过滤介质表征的基础上,考察了不同操作压力、旋转速度、固含量、操作温度等对过滤过程的影响。研究表明,过滤通量随着过滤介质孔径增大、压力增大、温度升高、固含量降低均有所增加,截留效果较好,滤液浊度都在30.0 NTU以下,实现了有效的过滤分离,可供技术工程化应用研究参考。

关键词: 超高分子量聚乙烯过滤介质, 强化过滤, 截留效果

Abstract:

The UHMWPE filter media prepared by particle sintering method was used to research the dynamic enhanced filtration process of an inorganic salt calcium acetate material which is widely used and difficult to filter. Based on the characterization of three UHMWPE filter media,the effects of different operating pressures,rotation speeds,solid content and operating temperature on the filtration process were investigated. The results showed that the filtration flux increased with the increasing of pore size,pressure and temperature,and the decreasing of solids content of the filter media. The interception effect was better,and the filtrate turbidity was below 30.0 NTU,which achieved effective filtration separation. It can be used as a reference for technical engineering application research.

Key words: UHMWPE filter media, enhanced filtration, interception effect

中图分类号:
