无机盐工业 ›› 2020, Vol. 52 ›› Issue (6): 59-62.doi: 10.11962/1006-4990.2019-0429

• 工业技术 • 上一篇    下一篇

基于MFA方法纯碱生产过程物质流及能量流分析

成春春1,宋浩宇1,李春丽2

  1. 1. 青海大学化工学院,青海西宁 810016
    2. 广东省环境保护职业技术学校环境工程系
  • 收稿日期:2020-01-14 出版日期:2020-06-01 发布日期:2020-06-12
  • 作者简介:成春春(1981— ),女,副教授,专业方向为生态工业;E-mail: 25452351@qq.com
  • 基金资助:
    教育部春晖计划(Z2017042)

Analysis of material flow and energy flow of soda ash based on MFA

Cheng Chunchun1,Song Haoyu1,Li Chunli2

  1. 1. College of Chemical Engineering,Qinghai University,Xining 810016,China
    2. Guangdong Polytechnic of Environmental Protection Engineering
  • Received:2020-01-14 Online:2020-06-01 Published:2020-06-12

摘要:

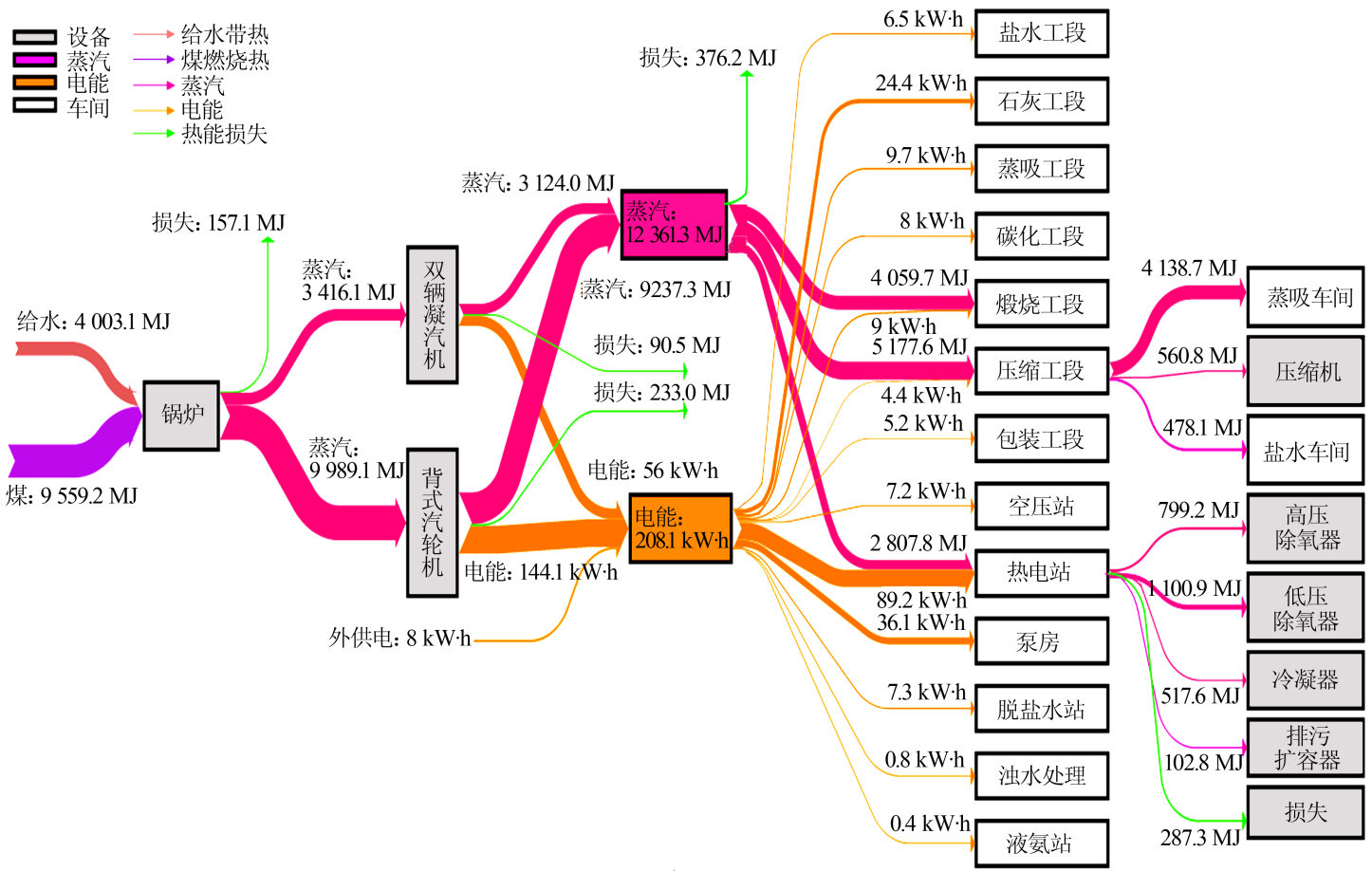

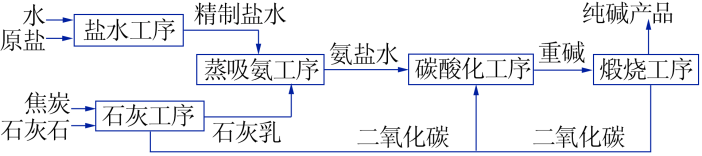

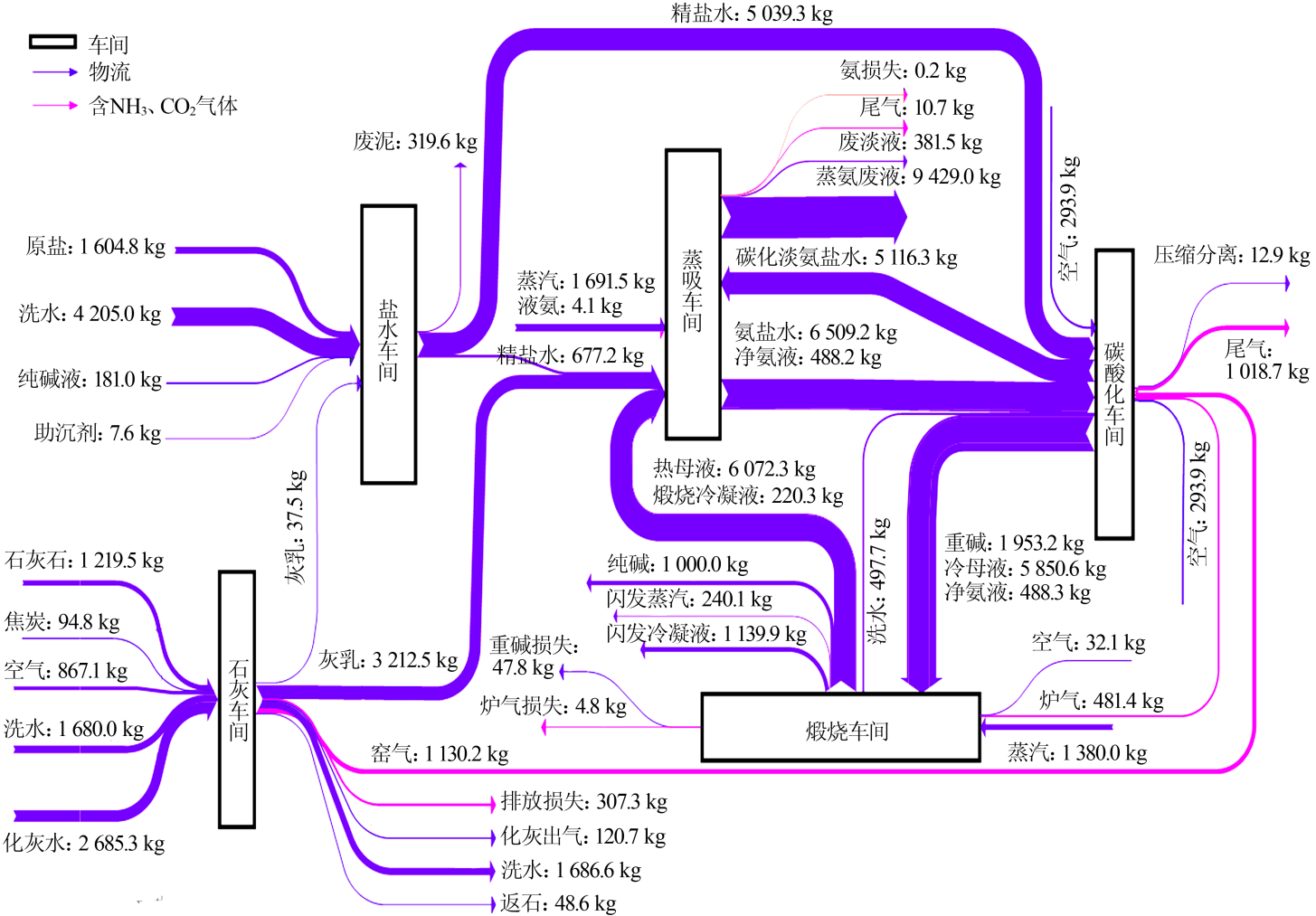

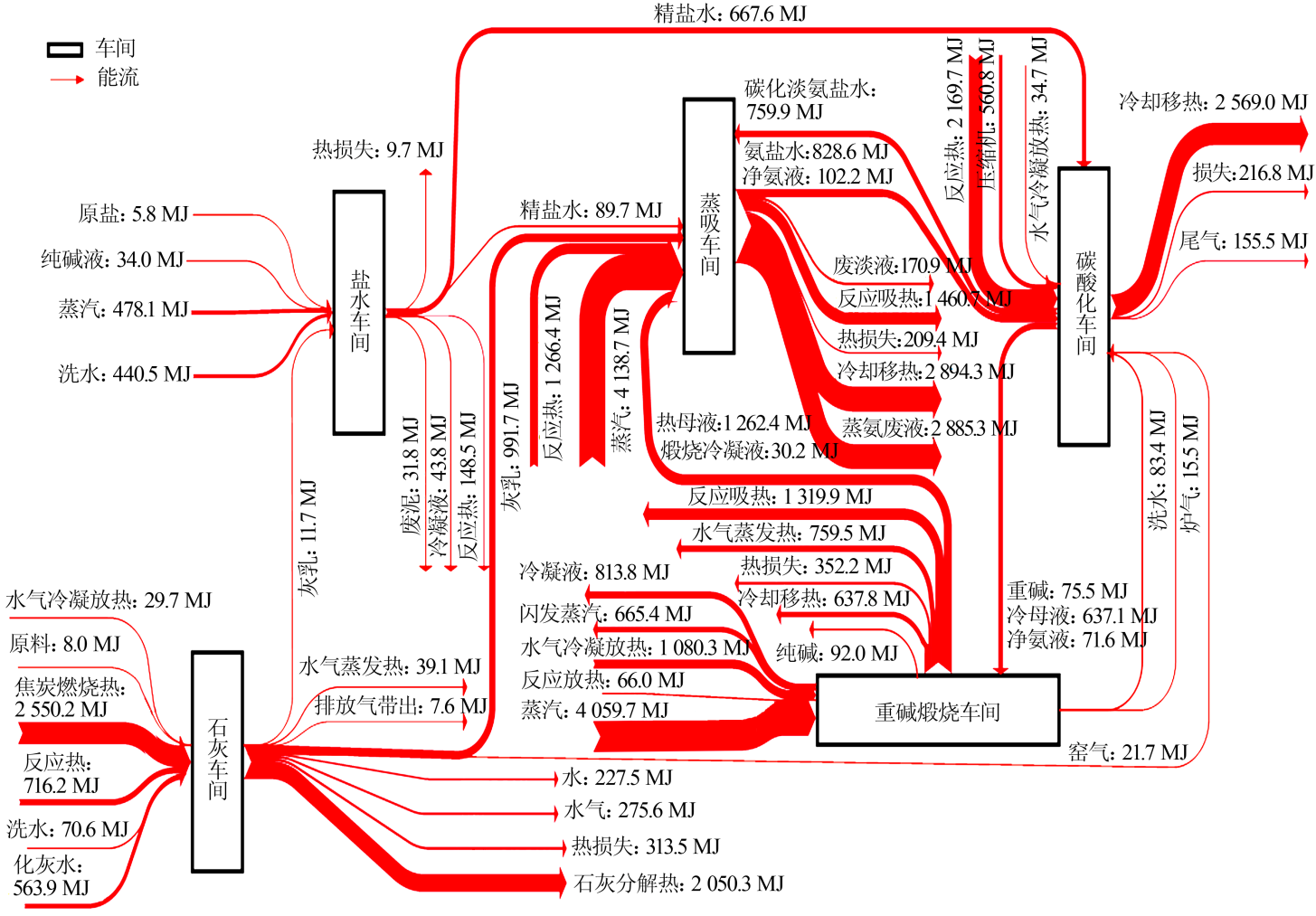

基于某纯碱企业的现场调研和台账数据,运用物质流分析(MFA)方法对纯碱生产过程的盐水工序、石灰石煅烧工序、碳酸化工序等主要环节中的资源、能源消耗和污染物排放量进行了计算分析。计算结果表明,每生产1 t纯碱消耗原盐1.6 t、石灰石1.2 t、焦炭0.1 t、电能200 kW·h、蒸汽热能12 000 MJ,产生废气1.4 t、废液10 t、废渣1.7 t。

关键词: 纯碱, 物质流分析, 能量流分析

Abstract:

Based on the On-site research and ledger data of a soda ash factory,the total energy consumption and pollutants discharge of the main process,including the salt water process,limestone calcination process and carbonation process etc.,in the production of soda ash were calculated and analyzed by analysis of material flow(MFA)method. The results showed that for 1 t of soda production,1.6 t of raw salt,1.2 t of limestone,0.1 t of coke,200 kW·h of power,12 000 MJ of steam heat en-ergy were consumed,and 1.4 t of waste gas,10 t of waste liquid and 1.7 t of waste residue were produced.

Key words: sodium carbonate, analysis of material flow, analysis of energy flow
