不同碳源对磷酸锰铁锂高温循环过程中金属溶出的影响探究

doi:10.19964/j.issn.1006-4990.2024-0326

Abstract

Abstract:

The rapid degradation of battery capacity caused by the dissolving of iron and manganese metals during high-temperature cycling has been a challenge limiting the large-scale application of lithium manganese iron phosphate materials（LMFP） for long time.Different carbon sources were used to encapsulate and modify LMFP materials，in order to improve their ionic and electronic conductivity，and improve the problem of iron and manganese metal dissolution during high-temperature cycling.The results showed that when polyethylene pyrrolidone（PVP） was used as the carbon source，the average carbon layer thickness of the LMFP/C-1 sample was only 1.86 nm，and the uniformity was the best，with the highest degree of graphitization.The electrochemical characterization results of the coin-type half cell showed that the LMFP/C-1 sample coated with PVP as the carbon source had the highest discharge specific capacity at 0.1C rate，reaching 152.17 mA·h/g，and had the best rate and cycling performance.The electrochemical characterization results of the coin type full cell showed that the LMFP/C-1 sample had the highest discharge specific capacity at 0.1C rate under room temperature，which was 131.19 mA·h/g，and the discharge specific capacity after 100 cycles at 1.0C rate was still the highest among the three samples.However，under high temperature conditions，the LMFP/C-2 sample coated with glucose as the carbon source showed the highest discharge specific capacity after 100 cycles at 1C rate，and the total amount of Fe and Mn metals dissolution detected at the negative electrode after high temperature cycling was only 32.94 mg/L，indicating that glucose as the carbon source could effectively prevent metal dissolving during high temperature cycling and improve the high temperature cycling performance of LMFP.

Key words: carbon sources, lithium manganese iron phosphate, coin-type full-cell, high temperature cycling, metal dissolving

CLC Number:

TQ131.11

WANG Peng, RAO Yinan, HANG Jing, XIA Yuxin, WANG Zhaopei, WAN Yuanxin. Study on effect of different carbon sources on metal dissolving during high temperature cycles of lithium manganese iron phosphate[J]. Inorganic Chemicals Industry, 2025, 57(7): 64-72.

Figures/Tables 12

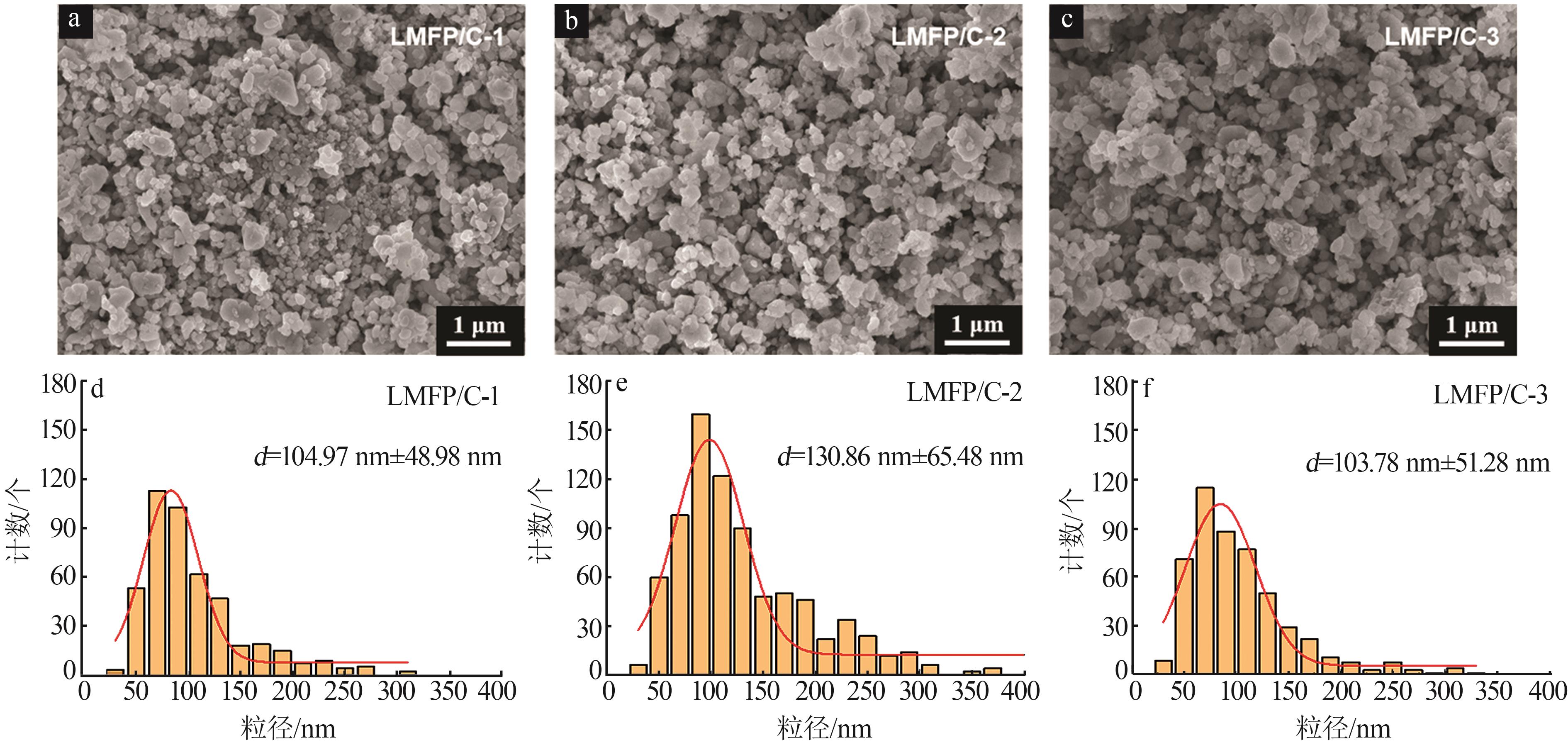

Fig.1

Fig.2

Fig.3

Table 1

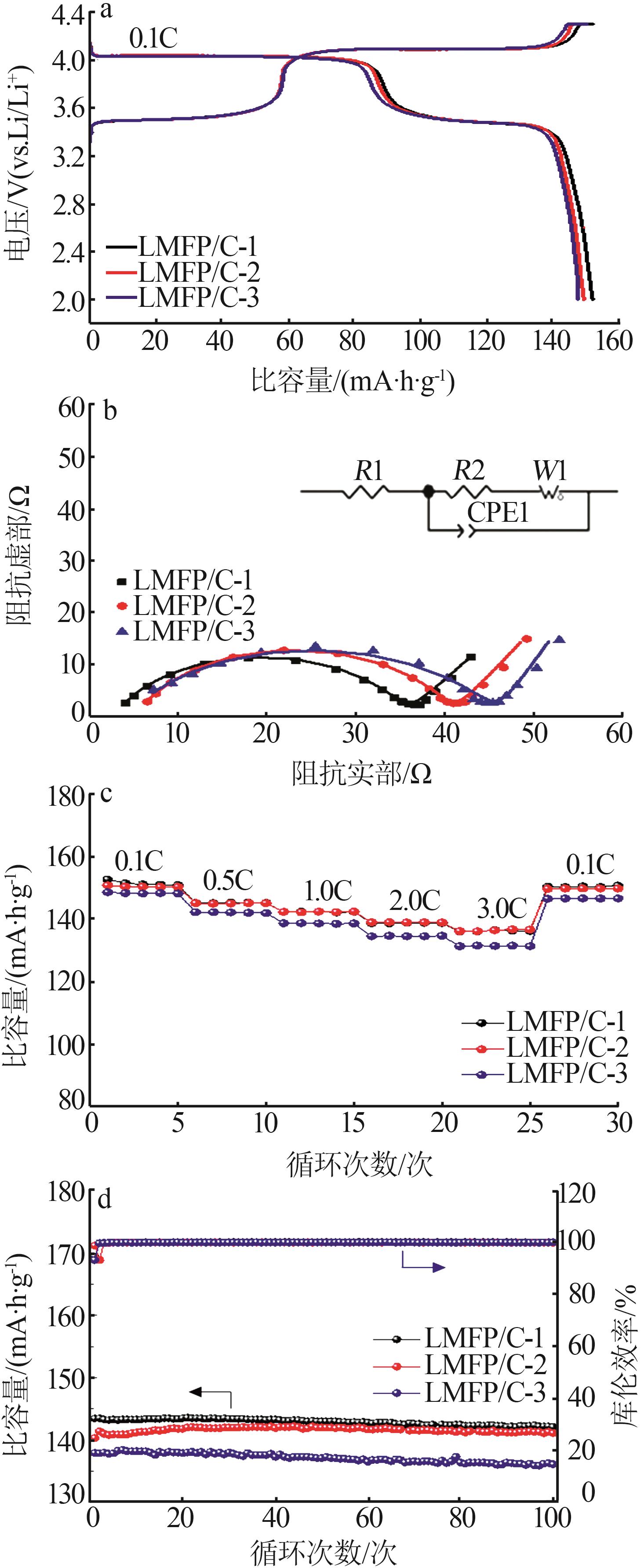

Fig.4

Table 2

Table 3

Impedance fitting results and lithium ion diffusion coefficient results of samples"

样品	R₁/Ω	R₂/Ω	W₁/Ω	σ	D_Li $+$ /（cm²·s^-1）
LMFP/C-1	2.802	32.94	0.046	7.02	5.13×10^-12
LMFP/C-2	4.262	35.44	0.341	8.22	3.74×10^-12
LMFP/C-3	4.054	41.95	0.376	8.26	3.71×10^-12

Table 3

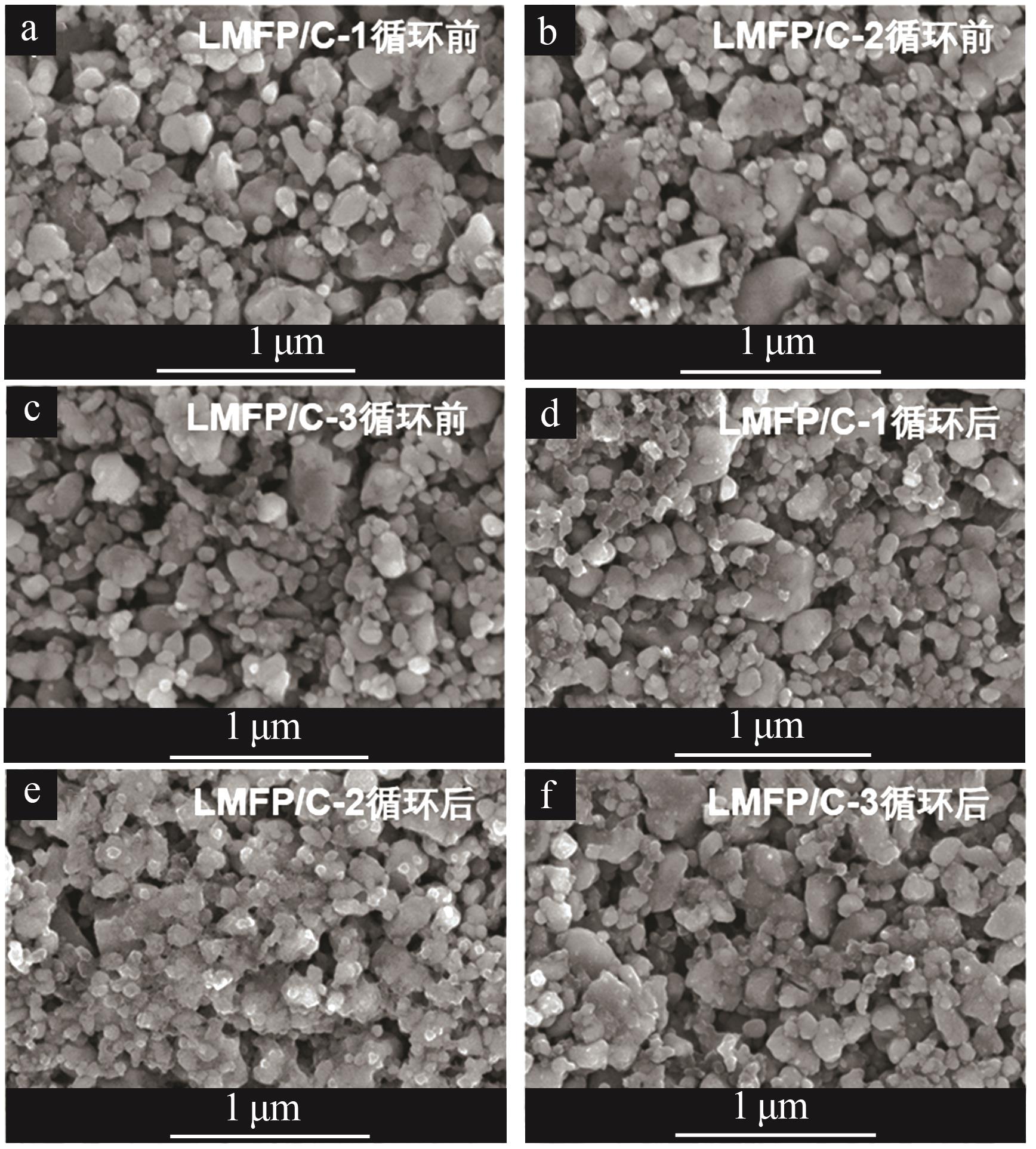

Fig.5

Table 4

Fig.6

Fig.7

Table 5

References 16

[1]	屈恋，李越珠，李铭雅，等.磷化铁对磷酸铁锂电化学性能的影响探究［J］.无机盐工业，2023，55（12）：88-94.
	QU Lian， LI Yuezhu， LI Mingya，et al.Study on effect of Fe₂P on electrochemical performance of LiFePO₄ ［J］.Inorganic Chemicals Industry，2023，55（12）：88-94.
[2]	张婷，林森，于建国.磷酸铁锂正极材料的制备及性能强化研究进展［J］.无机盐工业，2021，53（6）：31-40.
	ZHANG Ting， LIN Sen， YU Jianguo.Research progress in synthesis and performance enhancement of LiFePO₄ cathode materials［J］.Inorganic Chemicals Industry，2021，53（6）：31-40.
[3]	徐瑞琳，赵李鹏，刘兴伟，等.磷酸铁锂高温循环性能的改善［J］.无机盐工业，2022，54（9）：108-112.
	XU Ruilin， ZHAO Lipeng， LIU Xingwei，et al.Improvement of high temperature cycling performance of LiFePO₄ ［J］.Inorganic Chemicals Industry，2022，54（9）：108-112.
[4]	YANG Li， DENG Wentao， XU Wei，et al.Olivine LiMn _x Fe_1- _x PO₄ cathode materials for lithium ion batteries：Restricted factors of rate performances［J］.Journal of Materials Chemistry A，2021，9（25）：14214-14232.
[5]	刘佳盛，罗晓强，侯翠红，等.氟掺杂对LiMn_0.8Fe_0.2PO₄/C正极材料电化学性能的影响［J］.无机盐工业，2024，56（11）：45-50.
	LIU Jiasheng， LUO Xiaoqiang， HOU Cuihong，et al.Effects of fluorine doping on electrochemical behavior of LiMn_0.8Fe_0.2PO₄/C cathode materials［J］.Inorganic Chemicals Industry，2024，56（11）：45-50.
[6]	DING Dong， MAEYOSHI Y， KUBOTA M，et al.A facile way to synthesize carbon-coated LiMn_0.7Fe_0.3PO₄/reduced graphene oxide sandwich-structured composite for lithium-ion batteries［J］.ACS Applied Energy Materials，2019，2（3）：1727-1733.
[7]	WANG Yan， WU Chengyu， YANG Hao，et al.Rational design of a synthetic strategy，carburizing approach and pore-forming pattern to unlock the cycle reversibility and rate capability of micro-agglomerated LiMn_0.8Fe_0.2PO₄ cathode materials［J］.Journal of Materials Chemistry A，2018，6（22）：10395-10403.
[8]	XIAO Peng， CAI Yuanyuan， CHEN Xueping，et al.Improved electrochemical performance of LiFe_0.4Mn_0.6PO₄/C with Cr³⁺ doping［J］.RSC Advances，2017，7（50）：31558-31566.
[9]	李晶，秦元斌，宁晓辉.改进高温固相法制备磷酸锰铁锂正极材料［J］.材料导报，2020，34（16）：16001-16005.
	LI Jing， QIN Yuanbin， NING Xiaohui.Preparation of lithium manganese iron phosphate cathode material by improved high-temperature solid-state method［J］.Materials Reports，2020，34（16）：16001-16005.
[10]	ZHANG Huan， WEI Zhikai， JIANG Jinjin，et al.Three dimensional nano-LiMn_0.6Fe_0.4PO₄@C/CNT as cathode materials for high-rate lithium-ion batteries［J］.Journal of Energy Chemistry，2018，27（2）：544-551.
[11]	HUANG Guolong， LI Wei， SUN Haizhu，et al.Polyvinylpyrrolidone（PVP） assisted synthesized nano-LiFePO₄/C composite with enhanced low temperature performance［J］.Electrochimica Acta，2013，97：92-98.
[12]	CHANG Hui， LI Ying， FANG Zikui，et al.Construction of carbon-coated LiMn_0.5Fe_0.5PO₄@Li_0.33La_0.56TiO₃ nanorod composites for high-performance Li-ion batteries［J］.ACS Applied Materials & Interfaces，2021，13（28）：33102-33111.
[13]	XIE Xiaoming， ZHANG Baichao， HU Guorong，et al.A new route for green synthesis of LiFe_0.25Mn_0.75PO₄/C@rGO material for lithium ion batteries［J］.Journal of Alloys and Compounds，2021，853：157106.
[14]	LI Congli， YU Xiang， LIAO Cenjing，et al.Surface modification engineering enabling LiMn _x Fe_1- _x PO₄ cathode against aggressive cathode chemistries for excellent performance lithium-ion batteries［J］.ChemNanoMat，2024，10（4）：e202300558.
[15]	LESLIE K， HARLOW J， RATHORE D，et al.Correlating Mn dissolution and capacity fade in LiMn_0.8Fe_0.2PO₄/graphite cells during cycling and storage at elevated temperature［J］.Journal of the Electrochemical Society，2024，171（4）：040520.
[16]	黄宇朔，郑威，卢苏阳，等.锂离子电池失效分析研究进展［J］.云南化工，2024，51（3）：16-21.
	HUANG Yushuo， ZHENG Wei， LU Suyang，et al.Research progress on failure analysis of lithium-ion batteries［J］.Yunnan Chemical Technology，2024，51（3）：16-21.

样品	标尺/ nm	碳层厚度/nm								平均值/ nm	方差
样品	标尺/ nm	d₁	d₂	d₃	d₄	d₅	d₆	d₇	d₈	平均值/ nm	方差
LMFP/C-1	5	1.76	1.50	2.21	1.63	2.33	—	—	—	1.86	0.077
LMFP/C-1	20	2.05	2.19	1.92	1.70	1.90	1.59	1.43	2.02	1.86	0.077
LMFP/C-2	5	3.22	3.27	3.08	3.05	2.84	—	—	—	3.48	0.181
LMFP/C-2	20	2.99	3.70	3.92	3.58	4.30	3.84	3.92	3.52	3.48	0.181
LMFP/C-3	5	2.82	2.39	2.16	2.15	2.11	—	—	—	2.73	0.832
LMFP/C-3	20	3.71	3.42	5.28	2.43	2.94	2.01	1.90	2.12	2.73	0.832

样品	25 ℃，0.1C			25 ℃，1.0C
样品	充电比容量/ （mA·h·g^-1）	放电比容量/ （mA·h·g^-1）	库伦效率/%	充电比容量/ （mA·h·g^-1）	放电比容量/ （mA·h·g^-1）	库伦效率/ %
LMFP/C-1	152.26	152.17	99.94	152.00	143.46	94.38
LMFP/C-2	150.09	149.55	99.64	148.88	140.32	94.25
LMFP/C-3	150.56	148.45	98.60	148.22	137.92	93.05

样品	25 ℃、0.1C			45 ℃、0.1C
样品	充电比容量/ （mA·h·g^-1）	放电比容量/ （mA·h·g^-1）	库伦效率/%	充电比容量/ （mA·h·g^-1）	放电比容量/ （mA·h·g^-1）	库伦效率/ %
LMFP/C-1	132.41	131.19	99.08	140.33	134.14	95.59
LMFP/C-2	129.74	128.29	98.88	134.89	129.97	96.36
LMFP/C-3	130.68	129.49	99.09	133.26	126.99	95.29

样品	a/Å	b/Å	c/Å	V/Å³
LMFP/C-1循环前	4.725	10.386	6.059	297.34
LMFP/C-1循环后	4.711	10.374	6.038	295.09
LMFP/C-2循环前	4.725	10.401	6.064	298.01
LMFP/C-2循环后	4.708	10.374	6.029	294.45
LMFP/C-3循环前	4.722	10.398	6.061	297.59
LMFP/C-3循环后	4.779	10.057	5.959	286.38

National Inorganic Salts Information Center

Inorganic Acid-Base-Salt Committee of CIESC

Study on effect of different carbon sources on metal dissolving during high temperature cycles of lithium manganese iron phosphate

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 12

References 16

Related Articles 2

Metrics

Comments

Recommended 0

[1]	WANG Peng, PU Zhihua, WANG Tianxiang, LIN Jingyi, WAN Yuanxin. Investigation on effecte of different carbon source on processing performance of LiFePO₄ [J]. Inorganic Chemicals Industry, 2025, 57(4): 60-66.
[2]	Tang Yan;Guo Xiaodong;Zhong Benhe;Liu Heng. Effects of sources and addition amount of carbon on performances of LiFePO4/C [J]. INORGANICCHEMICALSINDUSTRY, 2010, 0(6): 0-0.
