四价元素高熵铝硅酸盐陶瓷的制备与性能研究

doi:10.19964/j.issn.1006-4990.2025-0058

无机盐工业 ›› 2026, Vol. 58 ›› Issue (1): 43-51.doi: 10.19964/j.issn.1006-4990.2025-0058

四价元素高熵铝硅酸盐陶瓷的制备与性能研究

张俊¹(), 朱泓颖¹, 蒋海云¹(), 张维莉¹, 吴若梅¹, 胡伟达², 雷志勇³, 刘斌⁴

1.湖南工业大学包装与材料工程学院，湖南株洲 412000
2.湖南工业大学醴陵陶瓷学院，湖南株洲 412000
3.深圳冠为科技股份有限公司，广东深圳 518000
4.广东润恒科技有限公司，广东湛江 524000

收稿日期:2025-02-02 出版日期:2026-01-10 发布日期:2025-05-27
通讯作者: 蒋海云（1978— ），男，教授，硕士生导师，研究方向为无机材料；E-mail：jhyun@163.com。
作者简介:张俊（2000— ），男，硕士研究生，研究方向为高熵陶瓷；E-mail：18205528834@163.com。
基金资助:
湖南省大学生创新创业训练计划项目(S202411535001);湖南省重点研发计划项目(2022GK2037)

Study on preparation and properties of tetravalent element high⁃entropy aluminosilicate ceramics

ZHANG Jun¹(), ZHU Hongying¹, JIANG Haiyun¹(), ZHANG Weili¹, WU Ruomei¹, HU Weida², LEI Zhiyong³, LIU Bin⁴

1. School of Packaging and Materials Engineering，Hunan University of Technology，Zhuzhou 412000，China
2. Liling Ceramic College，Hunan University of Technology，Zhuzhou 412000，China
3. Shenzhen Glareway Technology Co. ，Ltd. ，Shenzhen 518000，China
4. Guangdong Runheng Technology Co. ，Ltd. ，Zhanjiang 524000，China

Received:2025-02-02 Published:2026-01-10 Online:2025-05-27

摘要/Abstract

摘要：

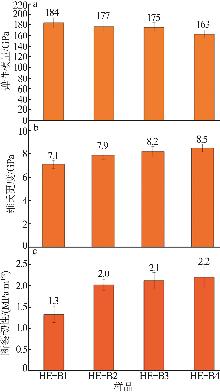

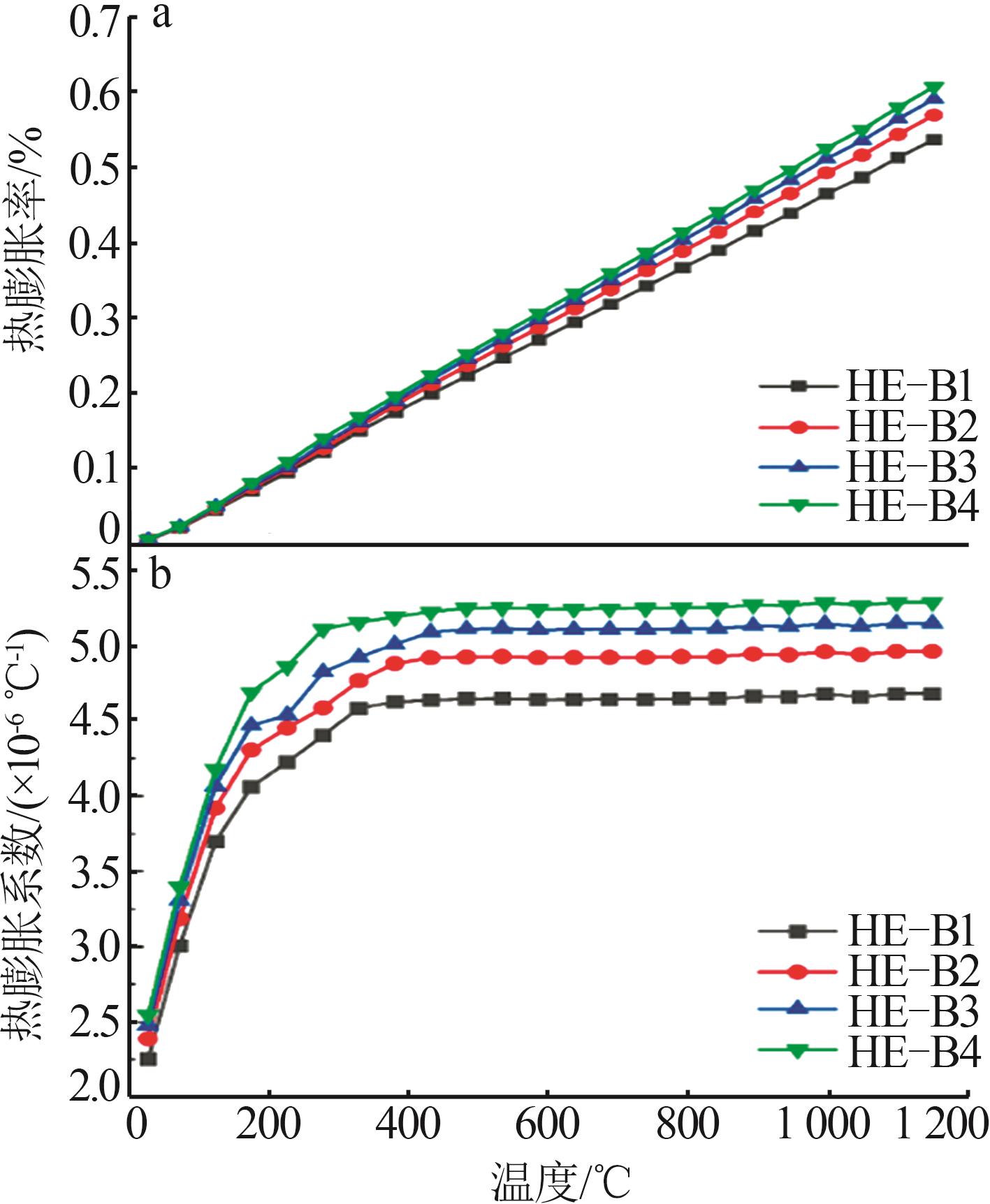

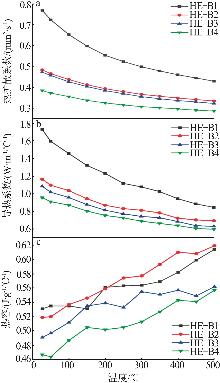

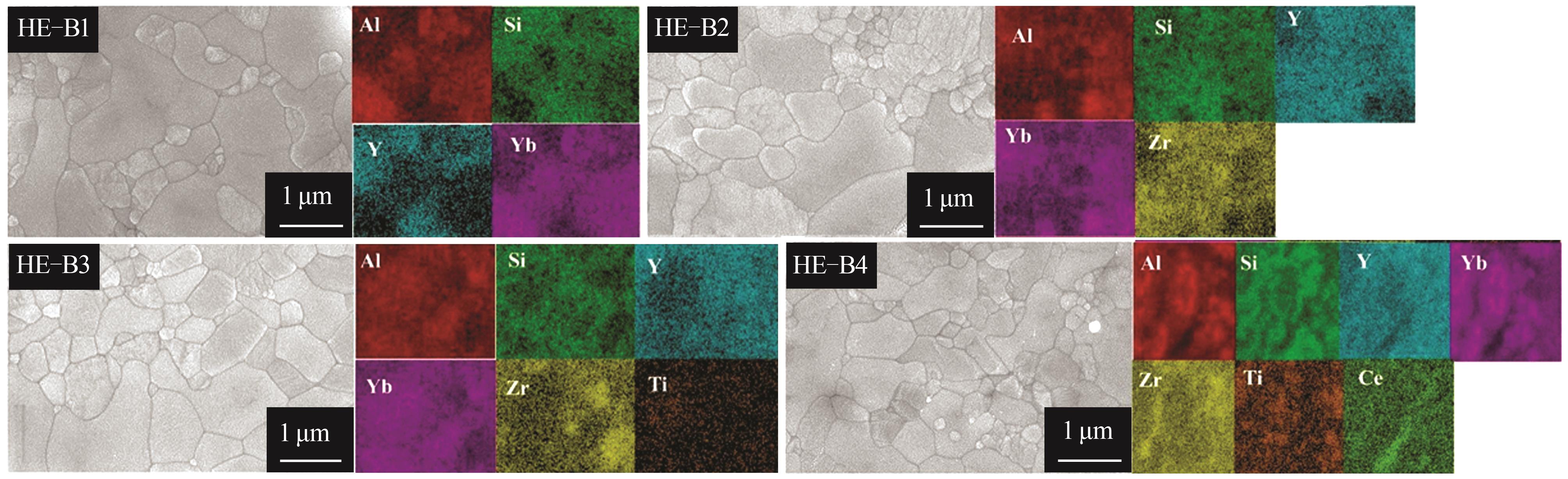

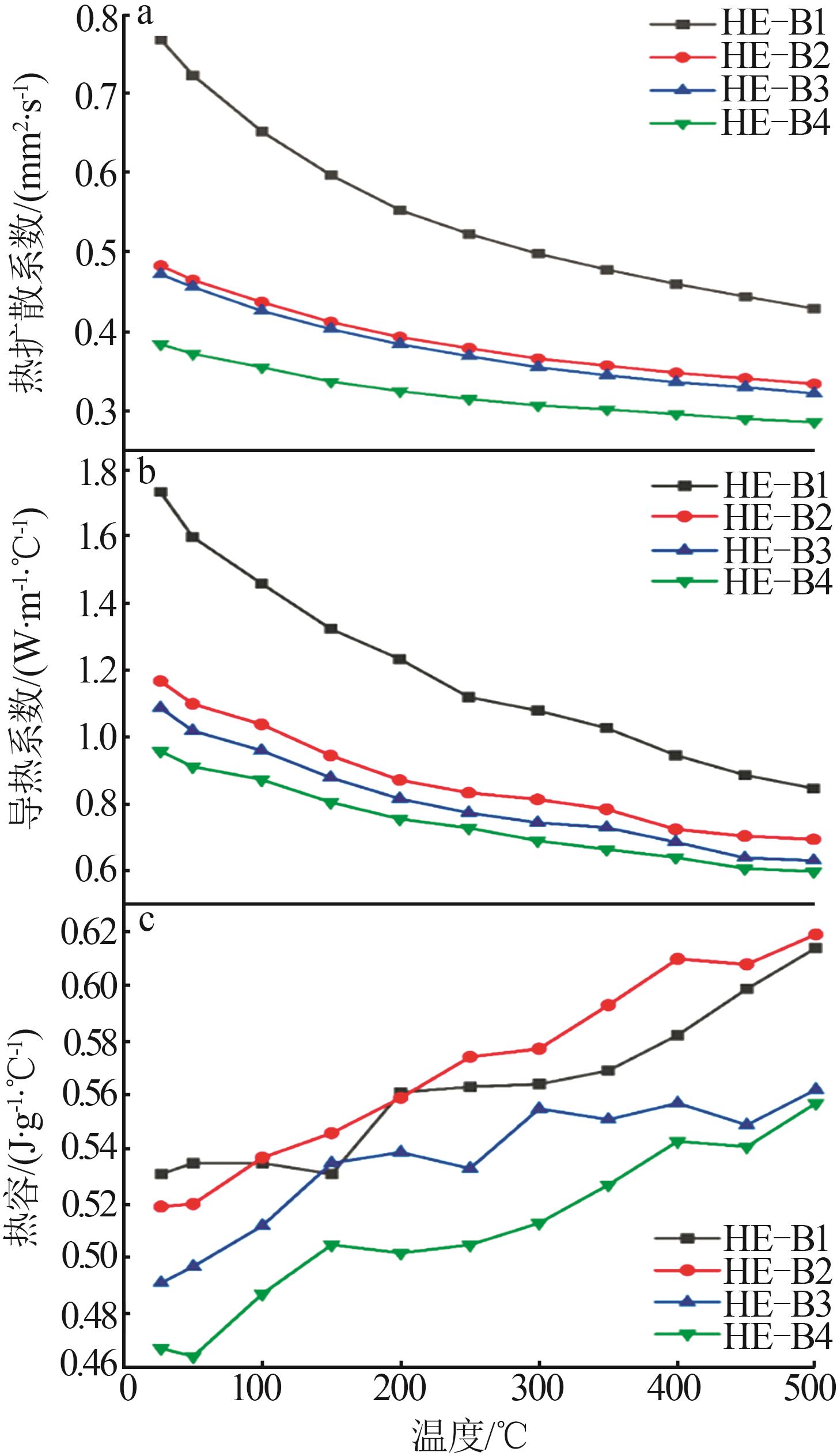

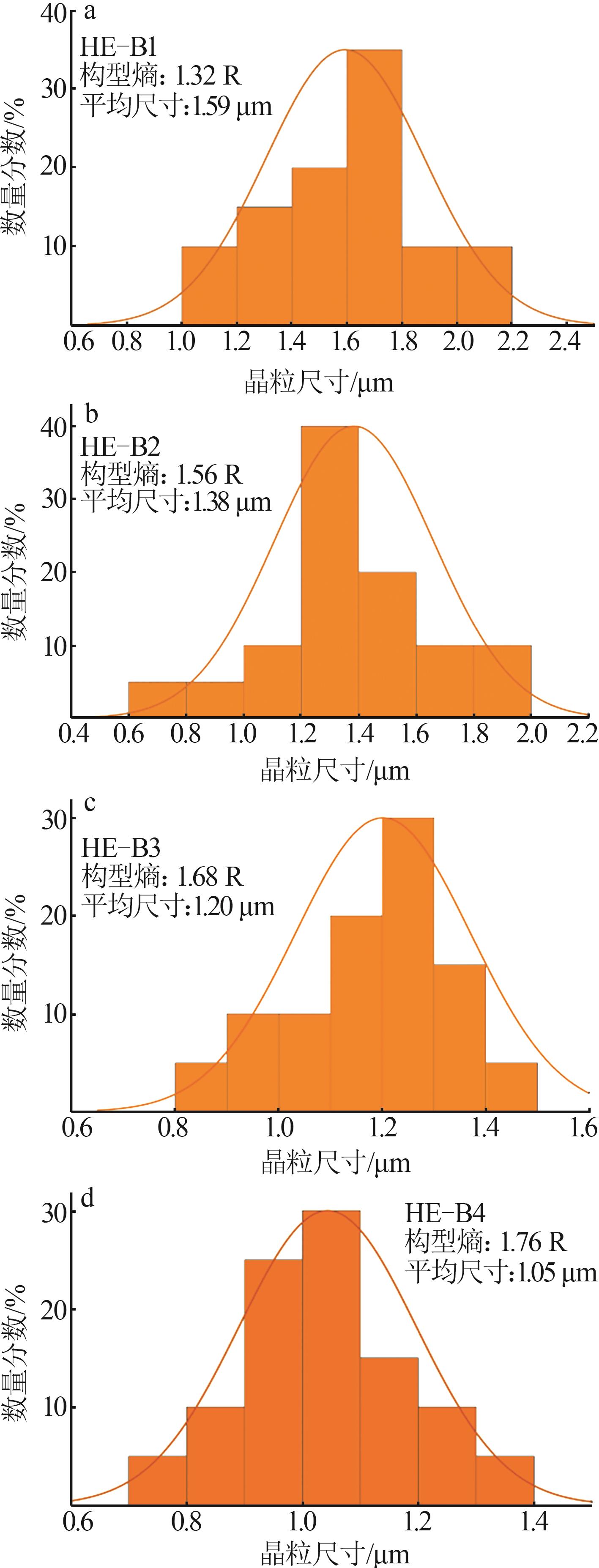

为有效改善铝硅酸盐陶瓷的热性能与力学性能，通过固相反应法引入四价元素，成功制备4种构型熵的铝硅酸盐陶瓷0.25（Y_1/2Yb_1/2）₄Al₂O₉·0.75（Y_1/2Yb_1/2）₂（xMe_1/_x ）₂O₇（x=1、2、3、4；Me=Si、Zr、Ti、Ce），并系统研究其物相组成、微观结构、热物理性能及力学性能。在热物理性能方面，随着构型熵的增加，陶瓷样品的热膨胀系数（CTE）逐渐升高，而导热系数显著降低。其中，最高构型熵样品的导热系数降至0.6 W/（m·℃），其热膨胀系数为5.27×10⁻⁶ ℃^-1。在力学性能方面，尽管陶瓷的高熵化使其弹性模量有所下降，但硬度和断裂韧性却得到显著提升，其中断裂韧性达到2.2 MPa·m^1/2，维氏硬度为8.5 GPa。微观结构表征结果表明，晶粒细化有效促进力学性能的提升。通过四价元素掺杂实现铝硅酸盐陶瓷构型熵的精确调控，揭示构型熵变化对材料微观结构演变及性能提升的作用机制，为调控铝硅酸盐陶瓷的热物理及力学性能提供一种新方法，展现出高熵化策略提升先进陶瓷材料结构与性能的潜在价值。

关键词: 高熵陶瓷, 铝硅酸盐, 热物理性能, 断裂韧性

Abstract:

The high⁃entropy strategy was explored by incorporating tetravalent elements through a solid⁃state reaction method to effectively enhance the thermophysical and mechanical properties of aluminosilicate ceramics.Four high⁃entropy aluminosilicate ceramics with different configurational entropies were successfully synthesized：0.25（Y_1/2Yb_1/2）₄Al₂O₉·0.75（Y_1/2Yb_1/2）₂（xMe_1/_x ）₂O₇（x=1，2，3，4；Me=Si，Zr，Ti，Ce）.These ceramics were systematically studied including phase composition，microstructure，thermophysical properties，and mechanical properties.The results indicated that the coefficient of thermal expansion（CTE） of the ceramic samples was gradually increased with the increase of configurational entropy.While the thermal conductivity was decreased significantly.Notably，the sample with the highest configurational entropy exhibited a thermal conductivity as low as 0.6 W/（m·℃），whereas its CTE reached 5.27×10⁻⁶ ℃^-1.In terms of mechanical properties，although the elastic modulus was decreased for the increase of entropy，both hardness and fracture toughness were markedly enhanced.Specifically，the fracture toughness achieved 2.2 MPa·m^1/2，and the Vickers hardness was measured at 8.5 GPa.Microstructural characterization revealed that grain refinement was effectively contributed to the improvement of mechanical properties.This study presented a novel approach for tailoring the thermophysical and mechanical properties of aluminosilicate ceramics and verified the significant potential of the high⁃entropy strategy in the domain of advanced ceramic materials.

Key words: high?entropy ceramics, aluminosilicate, thermophysical properties, fracture toughness

中图分类号:

TQ174.1

张俊, 朱泓颖, 蒋海云, 张维莉, 吴若梅, 胡伟达, 雷志勇, 刘斌. 四价元素高熵铝硅酸盐陶瓷的制备与性能研究[J]. 无机盐工业, 2026, 58(1): 43-51.

ZHANG Jun, ZHU Hongying, JIANG Haiyun, ZHANG Weili, WU Ruomei, HU Weida, LEI Zhiyong, LIU Bin. Study on preparation and properties of tetravalent element high⁃entropy aluminosilicate ceramics[J]. Inorganic Chemicals Industry, 2026, 58(1): 43-51.

图/表 10

表1

图1

表2

图2

表3

图3

图4

图5

图6

图7

参考文献 26

[1]	XIANG Huimin， XING Yan， DAI Fuzhi，et al.High⁃entropy ceramics：Present status，challenges，and a look forward［J］.Journal of Advanced Ceramics，2021，10（3）：385-441.
[2]	叶芬，成昊，向媛，等.利用电解锰渣制备陶瓷骨料及在混凝土中的应用［J］.无机盐工业，2024，56（6）：127-132.
	YE Fen， CHENG Hao， XIANG Yuan，et al.Preparation of ceramic aggregate from electrolytic manganese slag and its application in concrete［J］.Inorganic Chemicals Industry，2024，56（6）：127-132.
[3]	ZHU Saisai， ZHU Jinpeng， YE Songbo，et al.High⁃entropy rare earth titanates with low thermal conductivity designed by lattice distortion［J］.Journal of the American Ceramic Society，2023，106（10）：6279-6291.
[4]	李峻西，解志鹏，刘云峰，等.金属硼化物的制备及其在军工领域的基础应用研究进展［J］.无机盐工业，2024，56（12）：13- 28.
	LI Junxi， XIE Zhipeng， LIU Yunfeng，et al.Research progress of preparation of metal borides and their military applications［J］.Inorganic Chemicals Industry，2024，56（12）：13-28.
[5]	冯晓龙.激光熔覆制备高熵陶瓷热障涂层研究［D］.北京：华北电力大学，2022.
	FENG Xiaolong.Study on laser cladding preparation of high⁃entropy ceramic thermal barrier coatings［D］.Beijing：North China Electric Power University，2022.
[6]	SANG Weiwei， ZHANG Hongsong， ZHANG Haoming，et al.Novel（Sm_0.2Lu_0.2Yb_0.2Y_0.2Dy_0.2）₃TaO₇ high⁃entropy ceramic for thermal barrier coatings［J］.Ceramics International，2023，49（6）：9052-9059.
[7]	ZHAO Weijun， YANG Fan， LIU Zhaoli，et al.A novel（La_0.2Sm_0.2Eu_0.2Gd_0.2Tm_0.2）₂Zr₂O₇ high⁃entropy ceramic nanofiber with excellent thermal stability［J］.Ceramics International，2021，47（20）：29379-29385.
[8]	LUO Yixiu， SUN Luchao， WANG Jiemin，et al.Tunable thermal properties in yttrium silicates switched by anharmonicity of low⁃frequency phonons［J］.Journal of the European Ceramic Society，2018，38（4）：2043-2052.
[9]	MA Mengdong， HAN Yangjie， ZHAO Zhisheng，et al.Ultrafine⁃grained high⁃entropy zirconates with superior mechanical and thermal properties［J］.Journal of Materiomics，2023，9（2）：370-377.
[10]	罗学维.高熵稀土锆酸盐热障涂层材料设计及其性能调控研究［D］.武汉：中国地质大学，2023.
	LUO Xuewei.Research on the design and performance regulation of high⁃entropy rare earth zirconate thermal barrier coating materials［D］.Wuhan：China University of Geosciences，2023.
[11]	BRAUN J L， ROST C M，LIM M，et al.Charge⁃induced disorder controls the thermal conductivity of entropy⁃stabilized oxides［J］.Advanced Materials，2018，30（51）：1805004.
[12]	GIRI A， BRAUN J L， ROST C M，et al.On the minimum limit to thermal conductivity of multi⁃atom component crystalline solid solutions based on impurity mass scattering［J］.Scripta Materialia，2017，138：134-138.
[13]	WU H X， MA Z， LIU L，et al.Thermal cycling behavior and bonding strength of single⁃ceramic⁃layer Sm₂Zr₂O₇ and double⁃ceramic⁃layer Sm₂Zr₂O₇/8YSZ thermal barrier coatings deposited by atmospheric plasma spraying［J］.Ceramics International，2016，42（11）：12922-12927.
[14]	ROST C M， SACHET E， BORMAN T，et al.Entropy⁃stabilized oxides［J］.Nature Communications，2015，6：8485.
[15]	CHEN Heng， XIANG Huimin， DAI Fuzhi，et al.High entropy（Yb_0.25Y_0.25Lu_0.25Er_0.25）₂SiO₅ with strong anisotropy in thermal expansion［J］.Journal of Materials Science & Technology，2020，36：134-139.
[16]	WANG Xu， CHENG Minghao， XIAO Guozheng，et al.Preparation and corrosion resistance of high⁃entropy disilicate（Y_0.25Yb_0.25Er_0.25Sc_0.25）₂Si₂O₇ ceramics［J］.Corrosion Science，2021，192：109786.
[17]	WU Jie， WEI Xuezheng， PADTURE N P，et al.Low⁃thermal⁃conductivity rare⁃earth zirconates for potential thermal⁃barrier⁃coating applications［J］.Journal of the American Ceramic Society，2002，85（12）：3031-3035.
[18]	LI Mingliang， ZHAO Xiaotong， SHAO Gang，et al.Oscillatory pressure sintering of high entropy（Zr_0.2Ta_0.2Nb_0.2Hf_0.2Mo_0.2）B₂ ceramic［J］.Ceramics International，2021，47（6）：8707-8710.
[19]	JOHANNESEN O， ANDERSEN G.Selected topics in high temperature chemistry：Defect chemistry of solids［M］.Amsterdam：Elsevier，1989：101-105.
[20]	ZHANG Hongsong， SHI Lei， ZHAO Yongde，et al.Thermal conductivities and thermal expansion coefficients of Sm_0.5Gd 0.5 2（Ce1_-xZr_x）₂O₇ ceramics［J］.Journal of Materials Engineering and Performance，2015，24（9）：3394-3399.
[21]	YE Fuxing， MENG Fanwei， LUO Tianyuan，et al.The CMAS corrosion behavior of high⁃entropy（Y_0.2Dy_0.2Er_0.2Tm_0.2Yb_0.2）₄Hf3O12 hafnate material prepared by ultrafast high⁃temperature sinter⁃ing（UHS）［J］.Journal of the European Ceramic Society，2023，43（5）：2185-2195.
[22]	REN Xiaorui， WAN Chunlei， ZHAO Meng，et al.Mechanical and thermal properties of fine⁃grained quasi⁃eutectoid（La_1- _x Yb _x ）₂Zr₂O₇ ceramics［J］.Journal of the European Ceramic Society，2015，35（11）：3145-3154.
[23]	WANG Xiaofei， XIANG Huimin， SUN Xin，et al.Mechanical properties and damage tolerance of bulk Yb₃Al₅O₁₂ ceramic［J］.Journal of Materials Science & Technology，2015，31（4）：369- 374.
[24]	WEI Mingyue， XU Jie， ZHU Jiatong，et al.Influence of size disorder parameter on the thermophysical properties of rare⁃earth⁃zirconate medium⁃entropy ceramics［J］.Journal of the American Ceramic Society，2023，106（3）：2037-2048.
[25]	HAN Yi， LIU Xiangyang， ZHANG Qiqi，et al.Ultra⁃dense dislocations stabilized in high entropy oxide ceramics［J］.Nature Communications，2022，13：2871.
[26]	GUO Xuxin， YU Yuan， MA Wenwen，et al.Thermal properties of（Zr_0.2Ce_0.2Hf_0.2Y_0.2RE_0.2）O_1.8（RE=La，Nd and Sm） high entropy ceramics for thermal barrier materials［J］.Ceramics International，2022，48（24）：36084-36090.

简称	熵值	样品分组
HE-B1	1.32R	0.25（Y_1/2Yb_1/2）₄Al₂O₉·0.75（Y_1/2Yb_1/2）₂Si₂O₇
HE-B2	1.56R	0.25（Y_1/2Yb_1/2）₄Al₂O₉·0.75（Y_1/2Yb_1/2）₂（Si_1/2Zr_1/2）₂O₇
HE-B3	1.68R	0.25（Y_1/2Yb_1/2）₄Al₂O₉·0.75（Y_1/2Yb_1/2）₂（Si_1/3Zr_1/3Ti_1/3）₂O₇
HE-B4	1.76R	0.25（Y_1/2Yb_1/2）₄Al₂O₉· 0.75（Y_1/2Yb_1/2）₂（Si_1/4Zr_1/4Ti_1/4Ce_1/4）₂O₇

样品	四价平均离子半径/Å	离子半径方差/Å²	理论密度/（g·cm^-3）	实际密度/（g·cm^-3）	相对密度/%
HE-B1	0.400 0	0	4.436 3	4.371 4	98.5
HE-B2	0.560 0	0.025 6	4.487 3	4.377 0	97.5
HE-B3	0.576 7	0.027 6	4.458 7	4.301 5	96.4
HE-B4	0.650 0	0.029 4	4.509 2	4.298 9	95.3

样品	a/Å	b/Å	c/Å	β/（°）	空间群	结构
HE-B1	7.389 0	10.472 3	11.131 2	107.64	P-21/c	单斜
HE-B2	7.413 4	10.489 1	11.141 0	108.53	P-21/c	单斜
HE-B3	7.447 6	10.492 0	11.146 2	108.91	P-21/c	单斜
HE-B4	7.481 2	10.493 9	11.149 3	108.74	P-21/c	单斜
