改性埃洛石纳米管在聚脲基防火涂料中的应用研究

doi:10.19964/j.issn.1006-4990.2024-0039

摘要/Abstract

摘要：

为了提高聚脲基防火涂料的防火性能，探究埃洛石纳米管对聚脲基涂料防火性能的影响，通过表面改性的方法，用甲基三甲氧基硅烷改性埃洛石纳米管，并将改性埃洛石纳米管引入到聚脲膨胀型防火涂料中，采用锥形量热仪、红外光谱分析仪、导热系数仪、场发射扫描电镜、透射扫描电镜、防火性能测试装置等对其进行表征分析。研究发现：添加质量分数为5%的改性埃洛石纳米管的涂料样品的热释放峰值为95.89 kW/m²，相较未添加的样品降低了38.48%；总的热释放量为7.20 MJ/m²，相较未添加的样品降低了76.50%；总的烟释放值为4.32 m²，相较未添加的样品降低了40.98%；常温下导热系数为0.067 W/（m·K），相较未添加的样品降低了17.30%；燃烧后样品残留物表面更加致密，强度更高，对烟热的释放有更好的抑制作用，表现出了优异的防火性能。实验结果表明，改性埃洛石纳米管在降低复合材料导热系数和基体树脂催化成炭方面起到了双重作用，对聚脲基防火涂料防火性能的提高起到了重要作用。

关键词: 聚脲, 防火涂料, 埃洛石纳米管

Abstract:

To improve the fireproof performance of polyurea⁃based fireproof coatings，the effect of elosilicate nanotubes on the fireproof performance of polyurea⁃based coatings was investigated.Through the method of surface modification，the halloysite nanotubes were modified with methyltrimethoxysilane，and the modified halloysite nanotubes were introduced into the polyurea intumescent fireproof coatings.The cone calorimeter，infrared spectrum analyzer，thermal conductivity meter，field emission scanning electron microscope，transmission scanning electron microscope，and fire resistance testing device were used to characterize and analyze them.It was found that the peak heat release value of the paint sample with 5% modified halloysite nanotubes added was 95.89 kW/m²，which was 38.48% lower than that of the unadded sample.The total heat release was 7.20 MJ/m²，which was 76.50% lower than that of the unadded sample.The total smoke release value was 4.32 m²，which was 40.98% lower than that of the unadded sample.The thermal conductivity at room temperature was 0.067 W/（m·K），which was 17.30% lower than the unadded sample.In addition，the surface of the sample residue after combustion was denser and stronger，with better inhibition of the release of smoke and heat，showing excellent fire performance.The experimental results showed that the modified elosilicate nanotubes played a dual role in reducing the thermal conductivity of the composites and catalyzing the carbon formation of the matrix resin，which significantly improved the fire resistance of the polyurea⁃based fireproof coatings.

Key words: polyurea, fireproof coatings, halloysite nanotubes

中图分类号:

TQ628.4

庞洪昌, 刘帅, 田朋, 宁桂玲. 改性埃洛石纳米管在聚脲基防火涂料中的应用研究[J]. 无机盐工业, 2024, 56(8): 27-32.

PANG Hongchang, LIU Shuai, TIAN Peng, NING Guiling. Study on application of modified halloysite nanotubes in polyurea⁃based fireproof coatings[J]. Inorganic Chemicals Industry, 2024, 56(8): 27-32.

图/表 9

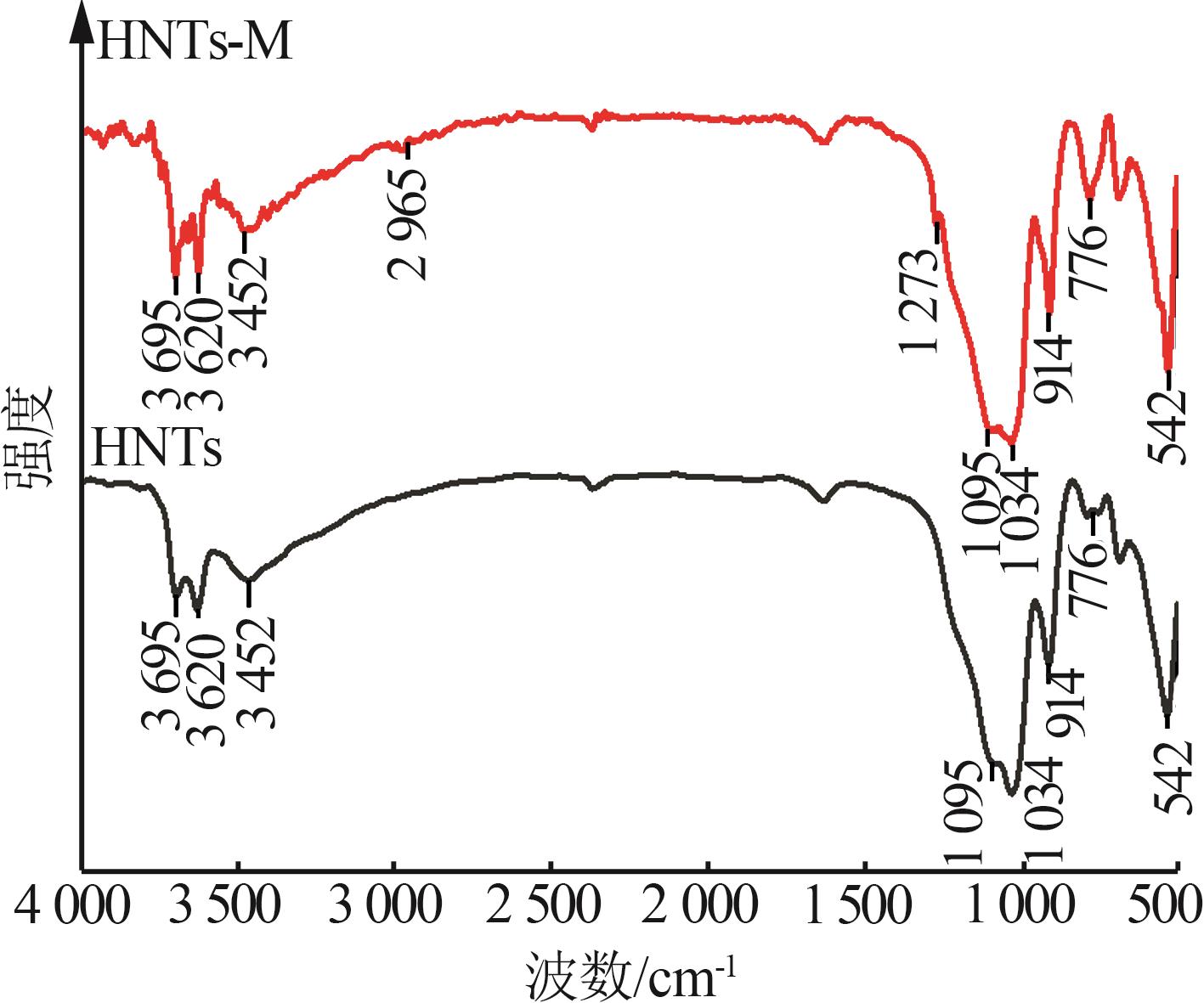

图1

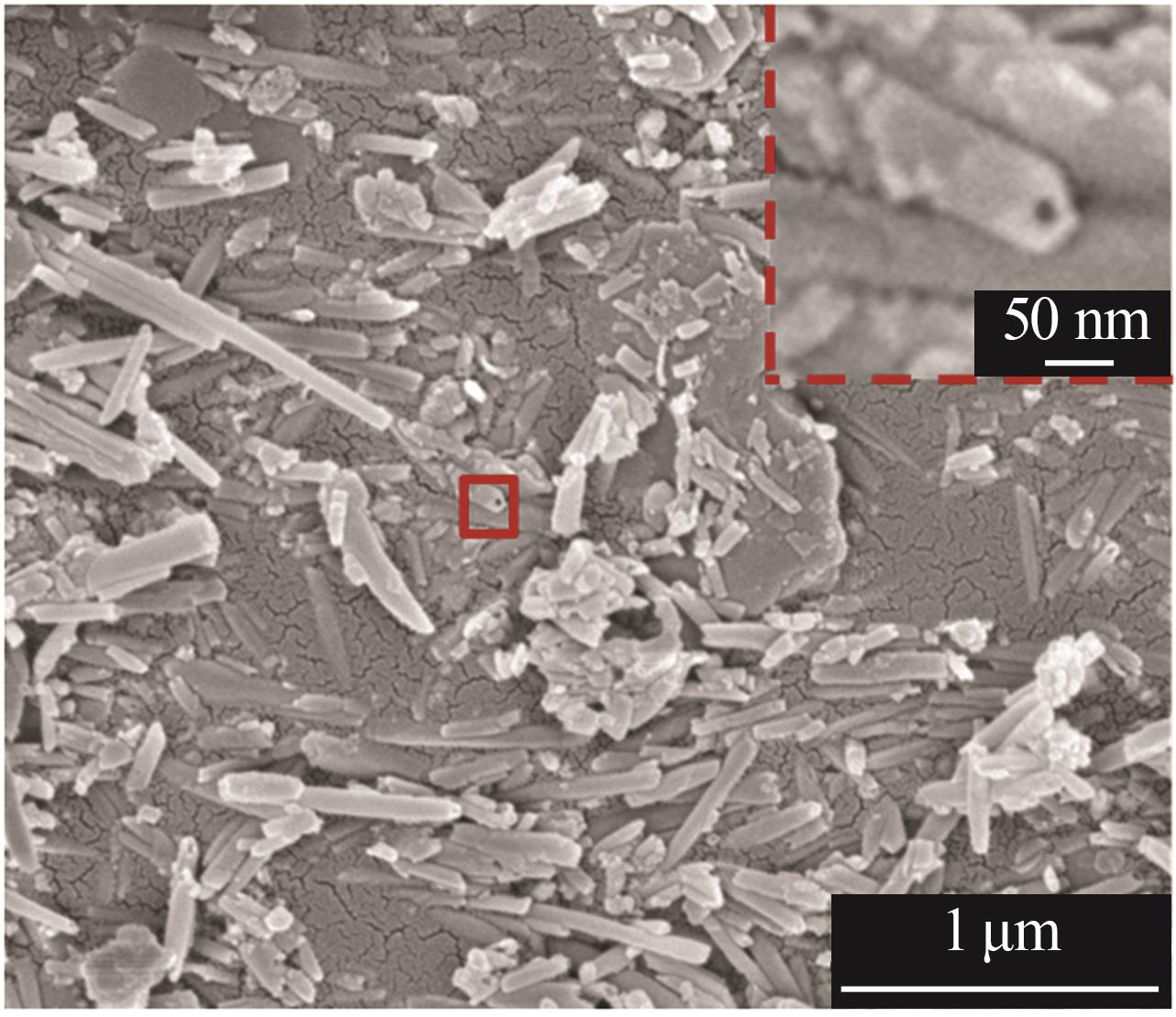

图2

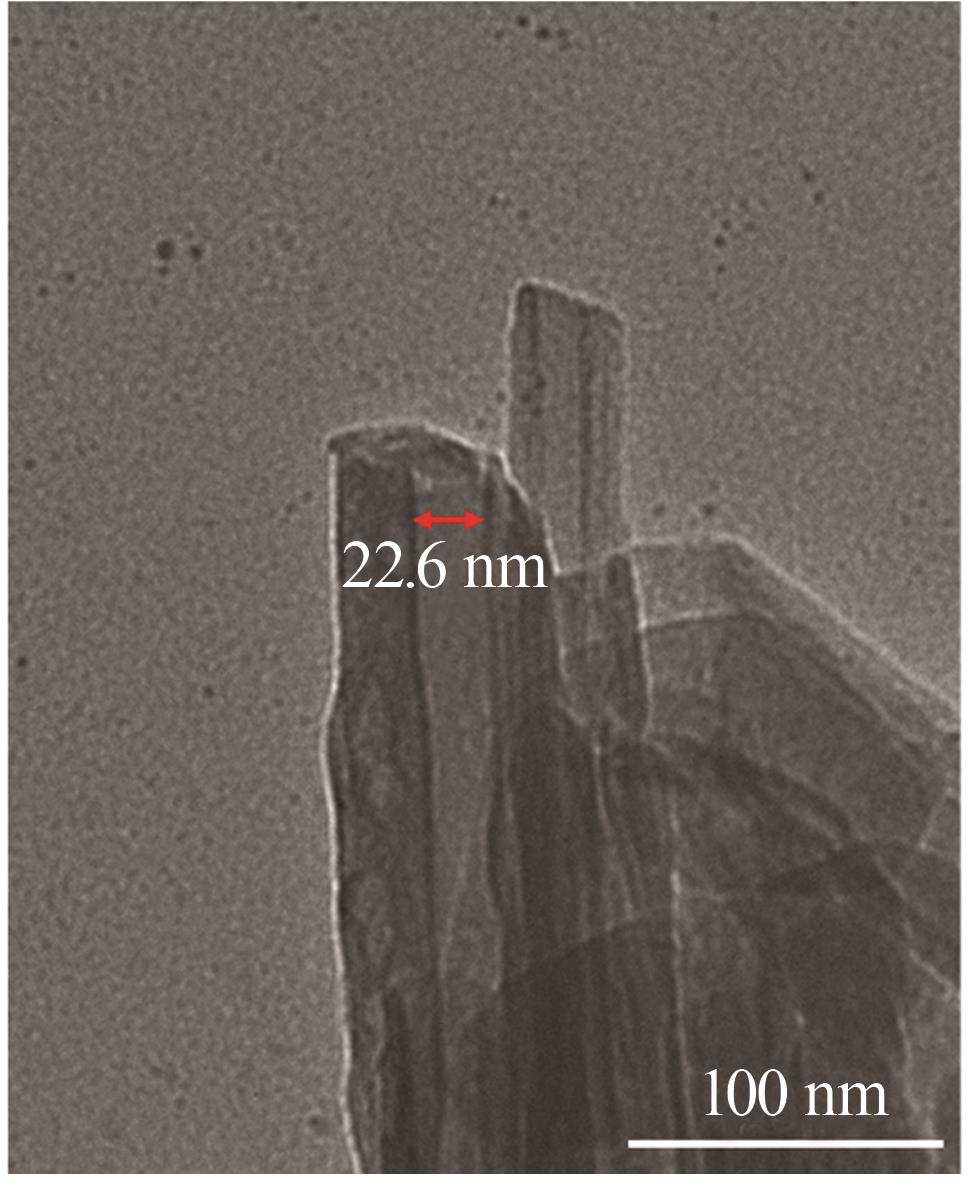

图3

表1

表2

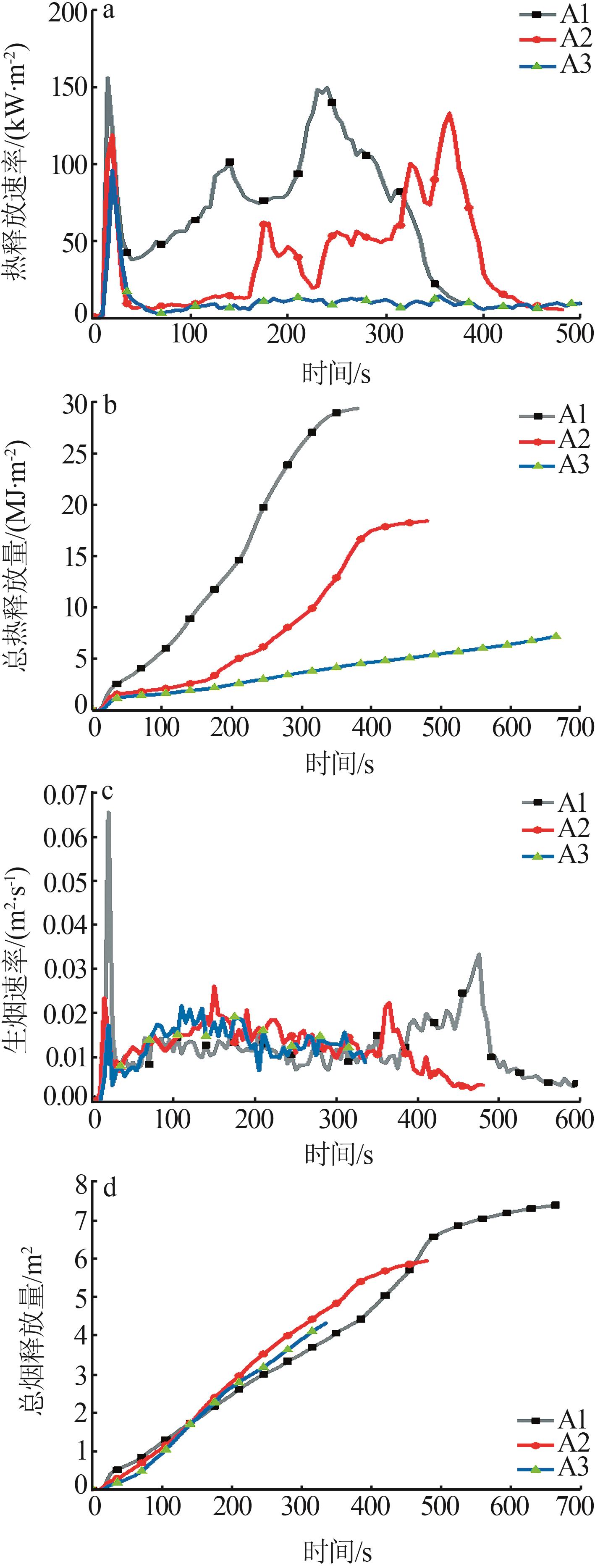

图4

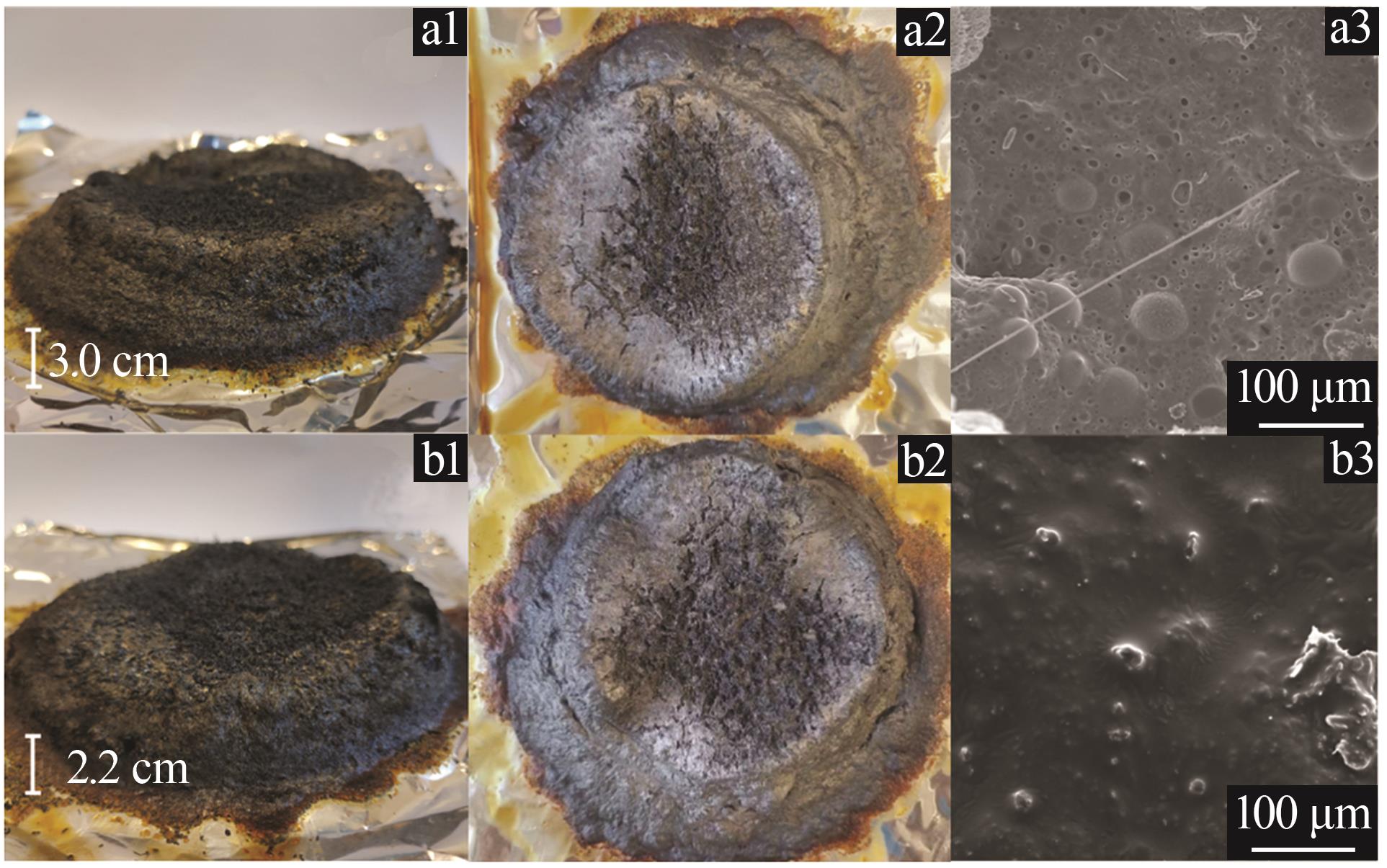

图5

表3

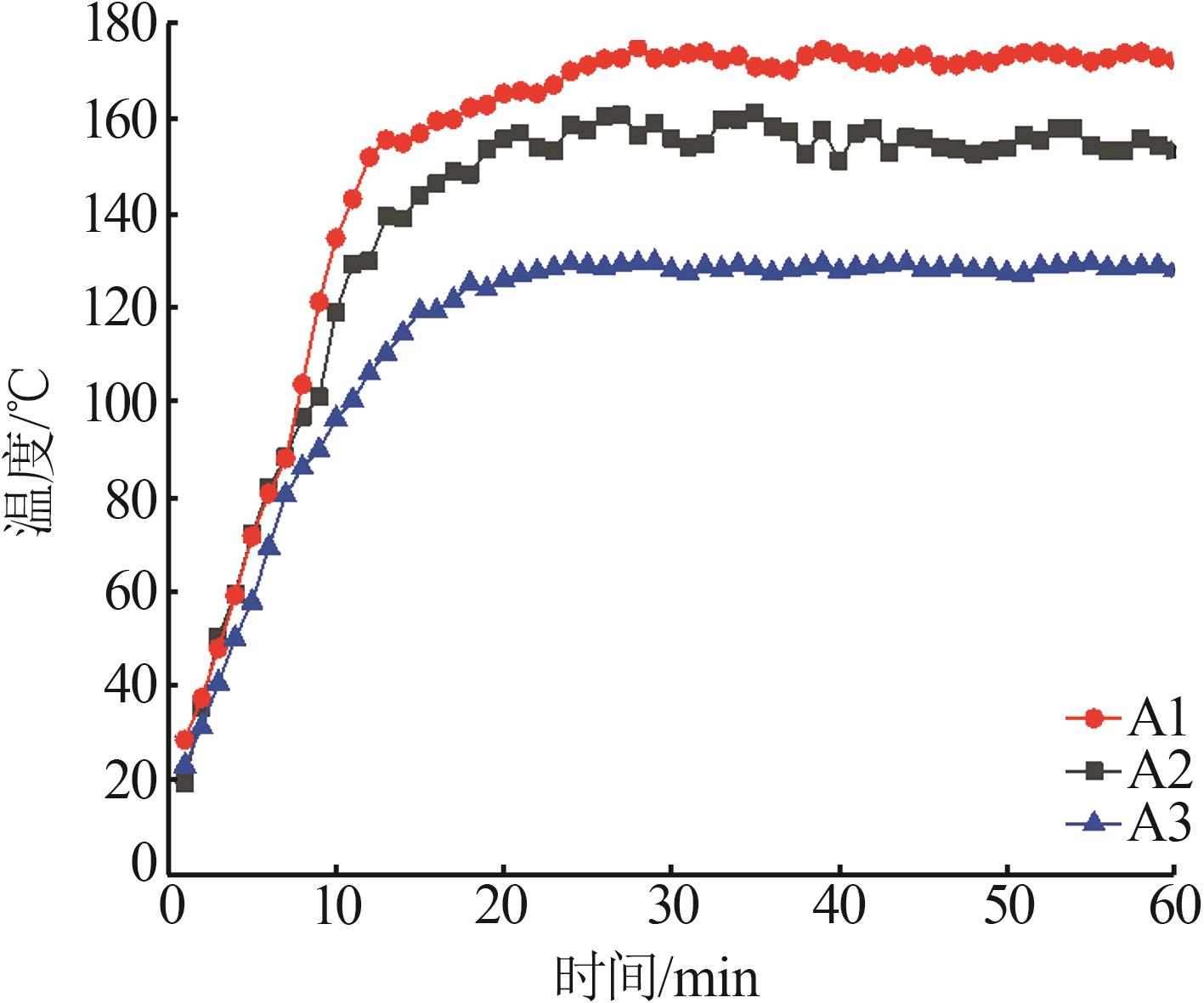

图6

参考文献 24

1	王雪松.建筑防火技术在高层建筑设计中的应用探究［J］.今日消防，2023，8（10）：101-103.
	WANG Xuesong.Research on the application of building fire protection technology in high⁃rise building design［J］.Fire Protection Today，2023，8（10）：101-103.
2	ARUNKUMAR T， ANISH M， JAYAPRABAKAR J，et al.Study on mechanical properties of polyurea coating with various process parameters［J］.Materials Research Innovations，2021，25（5）：257- 263.
3	DUKARSKI W， KRZYŻANOWSKI P， GONSIOR M，et al.Flame retardancy properties and physicochemical characteristics of polyurea⁃based coatings containing flame retardants based on aluminum hydroxide，resorcinol bis（diphenyl phosphate），and tris chloropropyl phosphate［J］.Materials，2021，14（18）：5168.
4	SHREE R， BALOJI NAIK R， GUNASEKARAN G.Development of elastomeric intumescent fire⁃retardant coating for protection of structures at sub⁃zero temperature condition［J］.Materials Chemistry and Physics，2023，296：127229.
5	李严，高志宏，彭洪均，等.纤维改性水性膨胀型钢结构防火涂料［J］.涂层与防护，2023，44（9）：26-32.
	LI Yan， GAO Zhihong， PENG Hongjun，et al.Fiber⁃modified waterborne intumescent fire retardant coatings for steel structure［J］.Coating and Protection，2023，44（9）：26-32.
6	江涛，吉尔么惹歪，何林铂，等.氨基化埃洛石纳米管对固体环氧树脂的增强增韧及阻燃作用［J］.化工新型材料，2023，51（2）：108-113.
	JIANG Tao， JI Ermerewai， HE Linbo，et al.Reinforcement，toughening and flame retardant effect of aminated halloysite nanotubes on solid epoxy resin［J］.New Chemical Materials，2023，51（2）：108-113.
7	LVOV Y， WANG Wencai， ZHANG Liqun，et al.Halloysite clay nanotubes for loading and sustained release of functional compounds［J］.Advanced Materials，2016，28（6）：1227-1250.
8	曲浩，刘昆霖，张世康，等.CS/SA封装HNTs@IBU的制备及其缓释性能研究［J］.广东化工，2021，48（22）：93-98.
	QU Hao， LIU Kunlin， ZHANG Shikang，et al.Preparation and control⁃release properties of HNTs@IBU encapsulated with CS/SA［J］.Guangdong Chemical Industry，2021，48（22）：93-98.
9	赵普祥，冯悦，龙远辉，等.埃洛石纳米管的填充改性技术综述［J］.材料研究与应用，2022，16（3）：485-494.
	ZHAO Puxiang， FENG Yue， LONG Yuanhui，et al.Filling technology of halloysite nanotubes［J］.Materials Research and Application，2022，16（3）：485-494.
10	刘芳，孙令，唐万雄，等.埃洛石对水性超薄膨胀型钢结构防火涂料防火性能的影响［J］.涂料工业，2010，40（1）：33-37.
	LIU Fang， SUN Ling， TANG Wanxiong，et al.Effect of halloysite on the fireproof performance of water⁃based ultrathin intumescent fireproof coating for steel structures［J］.Paint & Coatings Industry，2010，40（1）：33-37.
11	GILLANI Q F， AHMAD F， ABDUL MUTALIB M I，et al.Effects of halloysite nanotube reinforcement in expandable graphite based intumescent fire retardant coatings developed using hybrid epoxy binder system［J］.Chinese Journal of Polymer Science，2018，36（11）：1286-1296.
12	赵小亮，赵瑞丽.埃洛石纳米管改性水性聚氨酯的制备及性能［J］.印染，2023，49（8）：35-38.
	ZHAO Xiaoliang， ZHAO Ruili.Preparation and properties of waterborne polyurethane modified by halloysite nanotubes［J］.China Dyeing & Finishing，2023，49（8）：35-38.
13	连海强，田冠楠.埃洛石纳米管在阻燃高分子复合材料中的应用进展［J］.合成材料老化与应用，2022，51（2）：91-94，138.
	LIAN Haiqiang， TIAN Guannan.Application progress of halloysite nanotubes in flame retardant polymer composites［J］.Synthetic Materials Aging and Application，2022，51（2）：91-94， 138.
14	Huilin LUN， OUYANG Jing， YANG Huaming.Natural halloysite nanotubes modified as an aspirin carrier［J］.RSC Advances，2014，4（83）：44197-44202.
15	AYTEKIN M T， HOŞGÜN H L.Characterization studies of heat⁃treated halloysite nanotubes［J］.Chemical Papers，2020，74（12）：4547-4557.
16	孙会娟，王峥，李宝钗，等.改性HNTs对UHMWPE力学性能、热学性能的影响［J］.塑料科技，2023，51（9）：40-44.
	SUN Huijuan， WANG Zheng， LI Baochai，et al.Effect of modified HNTs on mechanical properties and thermal properties of UHMWPE［J］.Plastics Science and Technology，2023，51（9）：40-44.
17	KADI S， LELLOU S， MAROUF-KHELIFA K，et al.Preparation，characterisation and application of thermally treated Algerian halloysite［J］.Microporous and Mesoporous Materials，2012，158：47-54.
18	YUAN Peng， TAN Daoyong， ANNABI-BERGAYA F，et al.Changes in structure，morphology，porosity，and surface activity of mesoporous halloysite nanotubes under heating［J］.Clays and Clay Minerals，2012，60（6）：561-573.
19	赵迎，朱杰辉，林小茜，等.自清洁防水透湿防护面料的制备及性能研究［J］.棉纺织技术，2023，51（6）：1-6.
	ZHAO Ying， ZHU Jiehui， LIN Xiaoqian，et al.Preparation and property of self⁃cleaning waterproof and moisture permeable protective fabric［J］.Cotton Textile Technology，2023，51（6）：1-6.
20	邵明军，蹇玉兰，柴希娟，等.MTMS水解溶液整理棉织物的性能研究［J］.棉纺织技术，2024，52（3）：6-12.
	SHAO Mingjun， JIAN Yulan， CHAI Xijuan，et al.Study on property of cotton fabric modified by MTMS hydrolysis solution［J］.Cotton Textile Technology，2024，52（3）：6-12.
21	史宫会.柚皮素环氧复合材料的制备及其性能研究［D］.石家庄：石家庄铁道大学，2021.
	SHI Gonghui.Preparation and characterization of naringenin epoxy composite［D］.Shijiazhuang：Shijiazhuang Tiedao University，2021.
22	张向亮.埃洛石纳米管装载液体有机磷复合阻燃剂的制备及其在环氧树脂中的性能研究［D］.开封：河南大学，2023.
	ZHANG Xiangliang.Preparation of liquid organophosphorus composite flame retardant loaded with halloysite nanotubes and its properties in epoxy resin［D］.Kaifeng：Henan University，2023.
23	WANG Ji， ZHAO Min.Study on the effects of aging by accelerated weathering on the intumescent fire retardant coating for steel elements［J］.Engineering Failure Analysis，2020，118：104920.
24	PUSPITASARI W C， AHMAD F， ULLAH S，et al.The study of adhesion between steel substrate，primer，and char of intumescent fire retardant coating［J］.Progress in Organic Coatings，2019，127：181-193.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
