改性活性炭对低浓度二氧化硫吸附动力学模型研究

doi:10.19964/j.issn.1006-4990.2021-0721

摘要/Abstract

摘要：

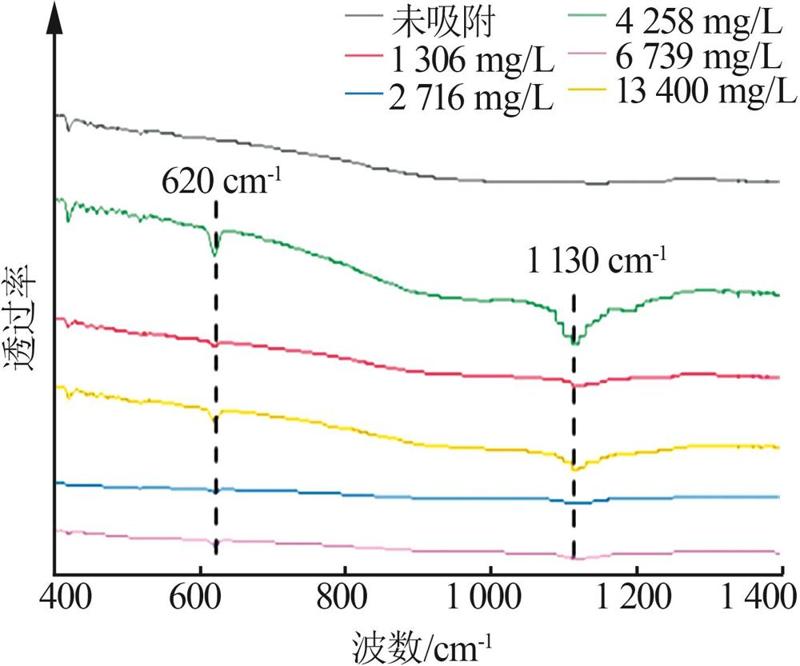

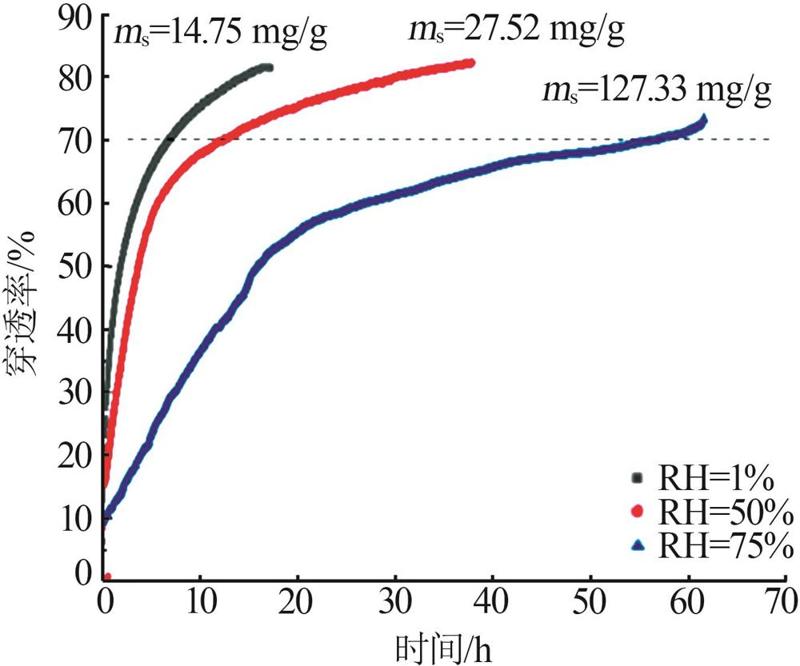

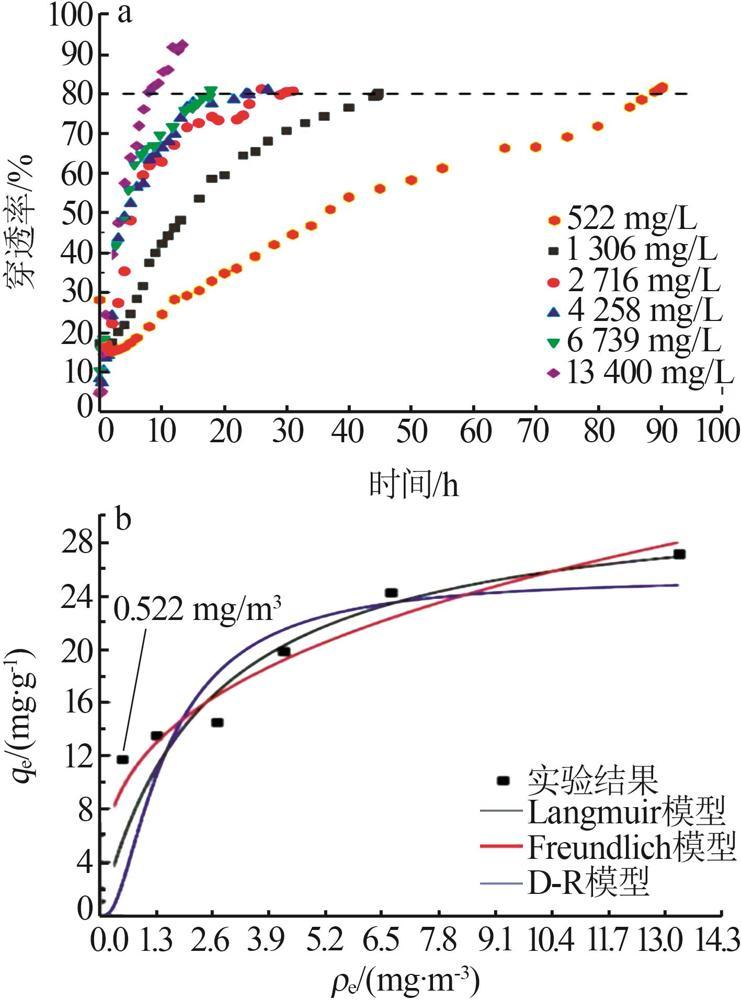

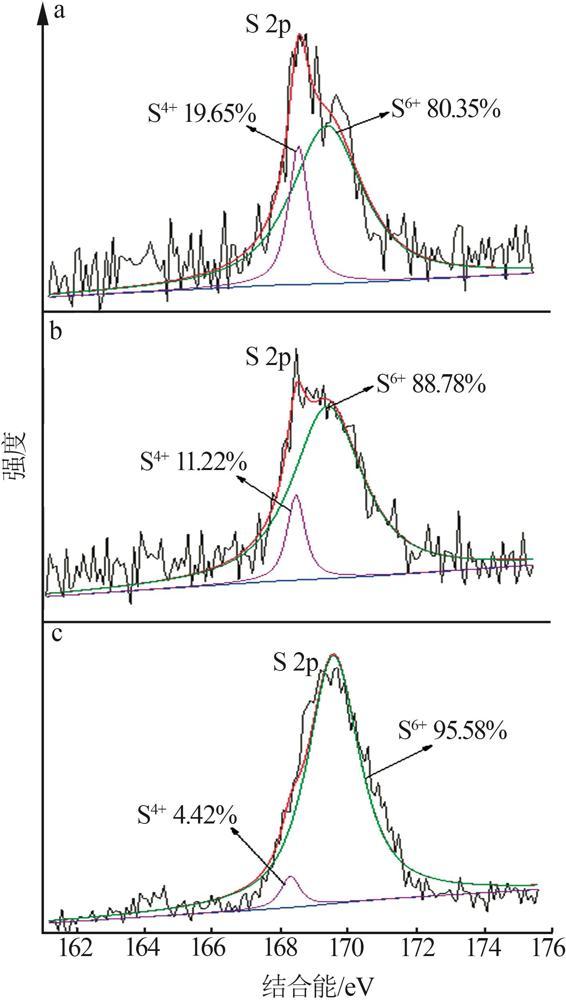

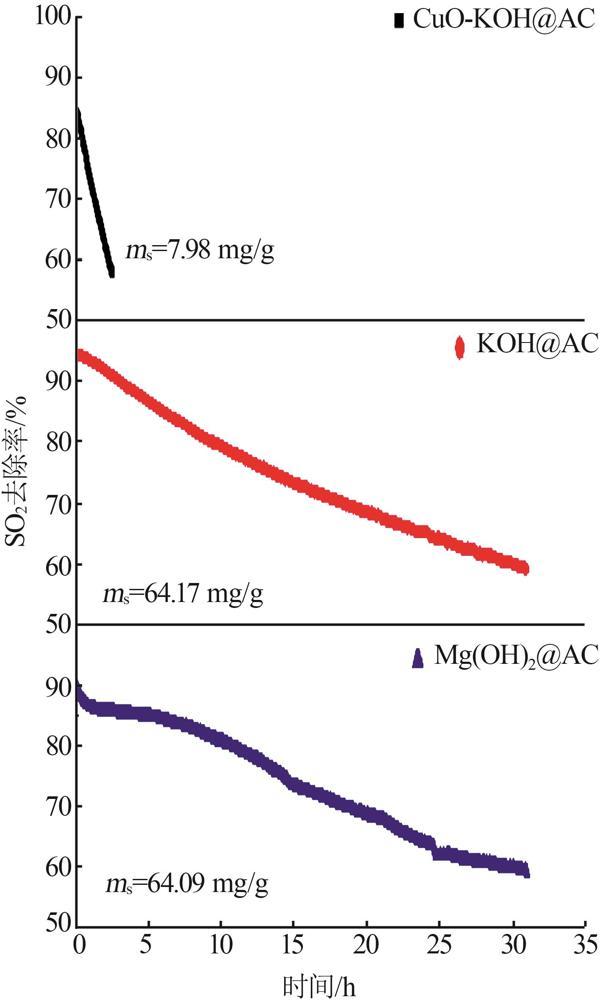

碱改性活性炭是一种广泛应用于半导体工业和数据中心净化室内吸附二氧化硫的高效材料，但是鲜有针对符合真实建筑环境的低浓度二氧化硫吸附实验及动力学模型进行研究。首先研究了氧化铜-氢氧化钾改性活性炭（CuO-KOH@AC）、氢氧化钾改性活性炭（KOH@AC）、氢氧化镁改性活性炭[Mg（OH）₂@AC]等3种碱改性活性炭在温度为25 ℃、相对湿度（RH）为50%、二氧化硫质量浓度为2 612 mg/L条件下对二氧化硫的吸附性能，结果显示碱改性活性炭对二氧化硫的吸附能力受碱负荷量的影响更多。然后测定了CuO-KOH@AC在二氧化硫质量浓度为522~13 400 mg/L的吸附等温曲线实验值，验证了Langmuir模型、Freundlich模型、Dubin-Radushkevich（D-R）模型的有效性，其中Freundlich模型在低二氧化硫浓度条件（二氧化硫质量浓度为522 mg/L，误差为-12.18%）下拟合效果最好。CuO-KOH@AC在二氧化硫质量浓度为2 612 mg/L、不同RH（1%、50%、75%）条件下的吸附实验表明，RH增加能够促进二氧化硫在吸附剂表面的吸附。傅里叶变换红外光谱对CuO-KOH@AC吸附二氧化硫后的分析表明，吸附剂表面的吸附物种为—SO₃（或SO₄^2-）和—SO₂。X射线光电子能谱对CuO-KOH@AC吸附二氧化硫后的分析结果显示，吸附剂表面S⁶⁺形态占80%~90%，其比例随着RH的增加而增加。CuO-KOH@AC最终以SO₄^2-形式吸附气态二氧化硫，吸附过程以化学吸附为主。

关键词: 碱改性活性炭, 二氧化硫吸收, 吸附模型, 低浓度二氧化硫

Abstract:

Alkali-modified activated carbon is used as an efficient adsorption material for the purification of SO₂ in the clean room of semiconductor industries and data centre.However，there are few low?concentration SO₂ adsorption experiments and model studies that conform to the real building environment.The adsorption performance of three alkali?modified activated carbons，namely copper oxide?potassium hydroxide modified activated carbon，potassium hydroxide modified activated carbon and magnesium hydroxide modified activated carbon，at a temperature of 25 ℃，a relative humidity（RH） of 50% and SO₂ mass concentration of 2 612 mg/L was firstly investigated.The results showed that the adsorption capacity of the alkali?modified activated carbon samples to SO₂ was more affected by the alkali load.The experimental values of the adsorption isotherm curves of activated carbon loaded with potassium hydroxide?copper oxide were then measured at SO₂ mass concentrations ranging from 522 to 13 400 mg/L.The validity of the Langmuir model，Freundlich model and Dubin?Radushkevich（D-R） model was verified，with the Freundlich model fitting best at low concentrations（SO₂ mass concentration of 522 mg/L，error -12.18%）.The experiments on alkali?modified activated carbon at a sulphur dioxide mass concentration of 2 612 mg/L and different RH（1%，50% and 75%） showed that increased RH promoted the adsorption of sulphur dioxide on the samples surface.Analysis of the modified activated carbon by fourier transform infrared spectroscopy showed that the absorbents on the surface of the samples were —SO₃（or SO₄^2-） and —SO₂.X-ray photoelectron spectroscopy showed that the S⁶⁺ form was accounted for 80% to 90% and the proportion was increased with the increase of RH.The alkali?modified activated carbon eventually adsorbed gaseous SO₂ in the form of SO₄^2- and the adsorption process was dominated by chemical adsorption.

Key words: alkali-modified activated carbon, SO₂ adsorption, adsorption model, SO₂with low concentration

中图分类号:

O647.33

王志强,张俊杰,刘相成,金梧凤. 改性活性炭对低浓度二氧化硫吸附动力学模型研究[J]. 无机盐工业, 2022, 54(9): 69-76.

WANG Zhiqiang,ZHANG Junjie,LIU Xiangcheng,JIN Wufeng. Study on adsorption kinetics model of modified activated carbon on SO₂ with low?concentration[J]. Inorganic Chemicals Industry, 2022, 54(9): 69-76.

图/表 8

表1

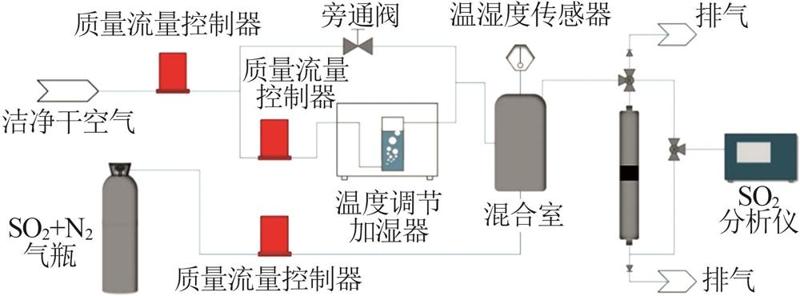

图1

图 2

图3

表2

图4

图5

图6

参考文献 31

[1]	HENDRYX M， LUO Juhua， CHOJENTA C， et al.Air pollution exposures from multiple point sources and risk of incident chronic obstructive pulmonary disease（COPD） and asthma[J].Environmental Research，2019，179.Doi:10.1016/j.envres.2019.108783. doi: 10.1016/j.envres.2019.108783.
[2]	LIN S Y， JU S W， LIN Chengli， et al.Air pollutants and subsequent risk of chronic kidney disease and end⁃stage renal disease:A population⁃based cohort study[J].Environmental Pollution，2020，261.Doi:10.1016/j.envpol.2020.114154. doi: 10.1016/j.envpol.2020.114154.
[3]	王建行，赵颖颖，李佳慧，等.二氧化碳的捕集、固定与利用的研究进展[J].无机盐工业，2020，52（4）:12-17.
	WANG Jianhang， ZHAO Yingying， LI Jiahui， et al.Research progress of carbon dioxide capture，fixation and utilization[J].Inorganic Chemicals Industry，2020，52（4）:12-17.
[4]	BUREŠ R， KLAJMON M， FOJT J， et al.Artificial patination of copper and copper alloys in wet atmosphere with increased content of SO₂ [J].Coatings，2019，9（12）.Doi:10.3390/coatings9120837. doi: 10.3390/coatings9120837.
[5]	ZHANG Rui， ZHANG Jianshun， SCHMIDT R， et al.Effects of moisture content，temperature and pollutant mixture on atmosp⁃heric corrosion of copper and silver and implications for the environmental design of data centers（RP-1755）[J].Science and Technology for the Built Environment，2020，26（4）:567-586.
[6]	RICE D W， PETERSON P， RIGBY E B， et al.Atmospheric corrosion of copper and silver[J].Journal of the Electrochemical Society，1981，128（2）:275-284.
[7]	FERRERO L， SANGIORGI G， FERRINI B S， et al.Aerosol corrosion prevention and energy⁃saving strategies in the design of green data centers[J].Environmental Science & Technology，2013，47（8）:3856-3864.
[8]	苏少龙，曲晓龙，钟读乐，等.工业烟气脱硫工艺进展[J].无机盐工业，2019，51（11）:13-15，87.
	SU Shaolong， QU Xiaolong， ZHONG Dule， et al.Progress of industrial flue gas desulfurization process[J].Inorganic Chemicals Industry，2019，51（11）:13-15，87.
[9]	LI Jianjun， KOBAYASHI N， HU Yongqi.The activated coke preparation for SO₂ adsorption by using flue gas from coal power plant[J].Chemical Engineering and Processing:Process Intensification，2008，47（1）:118-127.
[10]	李天杰.硫酸锌溶液脱除钙镁试验及生产应用[J].无机盐工业，2012，44（12）:38-39.
	LI Tianjie.Experiment and production application of removal of Ca²⁺ and Mg²⁺ from zinc sulphate solution[J].Inorganic Chemicals Industry，2012，44（12）:38-39.
[11]	SEVERA G， HEAD J， BETHUNE K， et al.Comparative studies of low concentration SO₂ and NO₂ sorption by activated carbon supported[C2mim][Ac]and KOH sorbents[J].Journal of Environmental Chemical Engineering，2018，6（1）:718-727.
[12]	ZHANG Yaping， YUE Xiupeng， XU Weiwei， et al.Amino modification of rice straw⁃derived biochar for enhancing its cadmium（Ⅱ） ions adsorption from water[J].Journal of Hazardous Materials，2019，379.Doi:10.1016/j.jhazmat.2019.120783. doi: 10.1016/j.jhazmat.2019.120783.
[13]	BAKER H M.Removal of lead ions from waste water using modified Jordanian zeolite[J].Chemical Science International Journal，2020:29（8）:19-30.
[14]	ZHOU Wu， GUAN Zheng， ZHAO Mengge， et al.Characteristics and mechanism of toluene removal from gas by novelty array double dielectric barrier discharge combined with TiO₂/Al₂O₃ catalyst[J].Chemosphere，2019，226:766-773.
[15]	WU Yue， LIU Yu， DOU Ruidi， et al.Larger pore volume tetrapheny⁃ doi: 101002/app.48572
	ladamantane⁃based hybrid porous polymers:Facile friedel⁃crafts preparation，CO₂ capture，and Rhodamine B removal properties[J].Journal of Applied Polymer Science，2020，137（16）.Doi:101002/app.485721002/app.48572. doi: 101002/app.48572
[16]	刘纪江.硅胶变压-变温耦合吸附处理尾气中极性二元VOCs组分[D].天津:天津大学，2018.
	LIU Jijiang.Treatment of binary polar VOCs from off⁃gas by silica gel using coupled pressure and temperature swing adsorption[D].Tianjin:Tianjin University，2018.
[17]	SHIUE A， DEN W， KANG Yuhao， et al.Validation and application of adsorption breakthrough models for the chemical filters used in the make⁃up air unit（MAU） of a cleanroom[J].Building and Environment，2011，46（2）:468-477.
[18]	PEI Jingjing， ZHANG J S.Determination of adsorption isotherm and diffusion coefficient of toluene on activated carbon at low concentrations[J].Building and Environment，2012，48:66-76.
[19]	ATANES E， NIETO-MÁRQUEZ A， CAMBRA A， et al.Adsorption of SO₂ onto waste cork powder⁃derived activated carbons[J].Chemical Engineering Journal，2012，211-212:60-67.
[20]	HU Qingyuan， LU Yunfeng， MEISNER G P.Preparation of nanoporous carbon particles and their cryogenic hydrogen storage capacities[J].The Journal of Physical Chemistry C，2008，112（5）:1516-1523.
[21]	金青青，梁晓怿，张佳楠，等.改性球形活性炭对氨气吸附性能的研究[J].无机盐工业，2021，53（4）:61-66.
	JIN Qingqing， LIANG Xiaoyi， ZHANG Jianan， et al.Study on adsorption performance of modified spherical activated carbon for ammonia[J].Inorganic Chemicals Industry，2021，53（4）:61-66.
[22]	SUN Fei， GAO Jihui， LIU Xin， et al.A systematic investigation of SO₂ removal dynamics by coal⁃based activated cokes:The synergic enhancement effect of hierarchical pore configuration and gas components[J].Applied Surface Science，2015，357:1895-1901.
[23]	LU H， JANIN E， DÁVILA M， et al.Adsorption of SO₂ on Cu（100） and Cu（100）-c（2×2）-O surfaces studied with photoelectron spectroscopy[J].Vacuum，1998，49（3）:171-174.
[24]	庄海波，杨林，邓强，等.离子交换法脱除磷酸中锰离子的动态吸附研究[J].无机盐工业，2021，53（1）:18-23.
	ZHUANG Haibo， YANG Lin， DENG Qiang， et al.Study on dynamic adsorption of Mn²⁺ from phosphoric acid by ion exchange technology[J].Inorganic Chemicals Industry，2021，53（1）:18-23.
[25]	汪鹏，赵磊，刘志禹，等.活性炭材料变压吸附SO₂的研究[J].应用化工，2020，49（11）:2722-2727.
	WANG Peng， ZHAO Lei， LIU Zhiyu， et al.Research on active carbon materials for SO₂ pressure swing adsorption[J].Applied Chemical Industry，2020，49（11）:2722-2727.
[26]	BAI B C， LEE C W， LEE Y S， et al.Modification of textural properties of CuO-supported activated carbon fibers for SO₂ adsorption based on electrical investigation[J].Materials Chemistry and Physics，2017，200:361-367.
[27]	AL-GHOUTI M A， DA'ANA D A.Guidelines for the use and interpretation of adsorption isotherm models:A review[J].Journal of Hazardous Materials，2020，393.Doi:10.1016/j.jhazmat.2020.122383. doi: 10.1016/j.jhazmat.2020.122383.
[28]	尚方毓，苏小红，胡昉.氧化镁湿法脱硫在硫化碱行业的应用探讨[J].无机盐工业，2016，48（4）:50-52.
	SHANG Fangyu， SU Xiaohong， HU Fang.Study on application of magnesium oxide in flue gas desulphurization in alkali sulfide industry[J].Inorganic Chemicals Industry，2016，48（4）:50-52.
[29]	GAO Xiang， LIU Shaojun， ZHANG Yang， et al.Physicochemical properties of metal⁃doped activated carbons and relationship with their performance in the removal of SO₂ and NO[J].Journal of Hazardous Materials，2011，188（1/2/3）:58-66.
[30]	LISOVSKII A， SEMIAT R， AHARONI C.Adsorption of sulfur dioxide by active carbon treated by nitric acid:I.Effect of the treatment on adsorption of SO₂ and extractability of the acid formed[J].Carbon，1997，35（10/11）:1639-1643.
[31]	LIU Fudong， ASAKURA K， HE Hong， et al.Influence of sulfation on iron titanate catalyst for the selective catalytic reduction of NO _x with NH₃ [J].Applied Catalysis B:Environmental，2011，103（3/4）:369-377.

样品	主要成分质量分数/%			S_BET/ （m².g^-1）	S_micropore/ （m².g^-1）	V_{total pore}/ （cm³.g^-1）	V_micropore/ （cm³.g^-1）
样品	K₂O	CuO	MgO	S_BET/ （m².g^-1）	S_micropore/ （m².g^-1）	V_{total pore}/ （cm³.g^-1）	V_micropore/ （cm³.g^-1）
CuO-KOH@AC	16.72	25.84	—	817	779	0.413	0.349
KOH@AC	42.14	—	—	872	774	0.427	0.336
Mg（OH）₂@AC	—	—	64.94	1 124	790	0.627	0.368
