废磷酸盐与蒸氨废液共处理工艺研究

doi:10.19964/j.issn.1006-4990.2021-0229

摘要/Abstract

摘要：

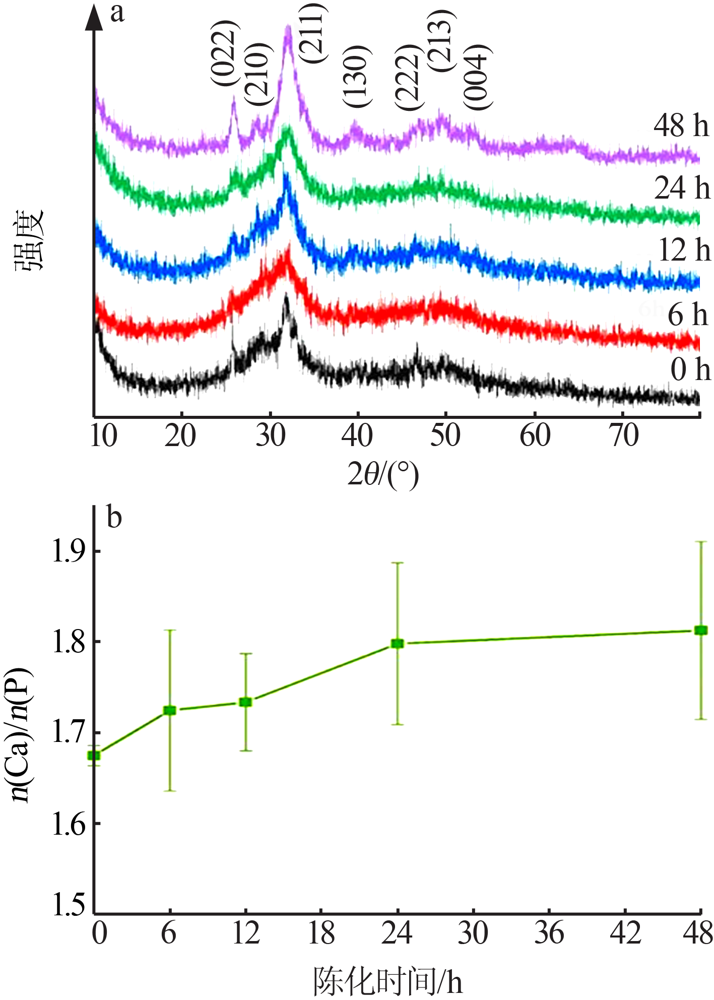

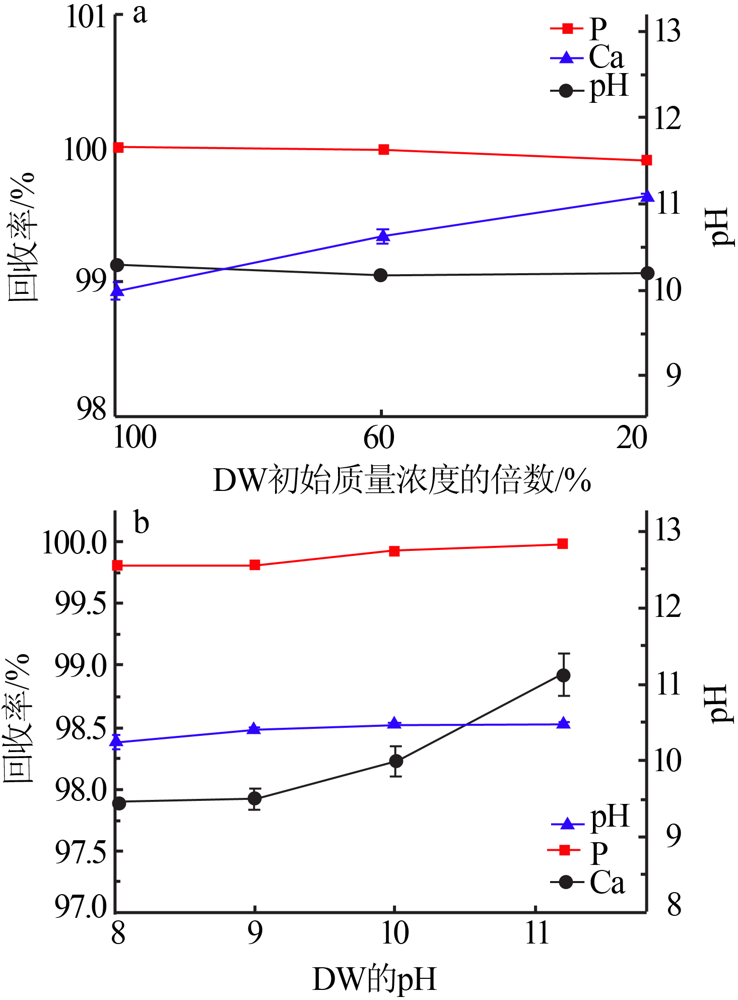

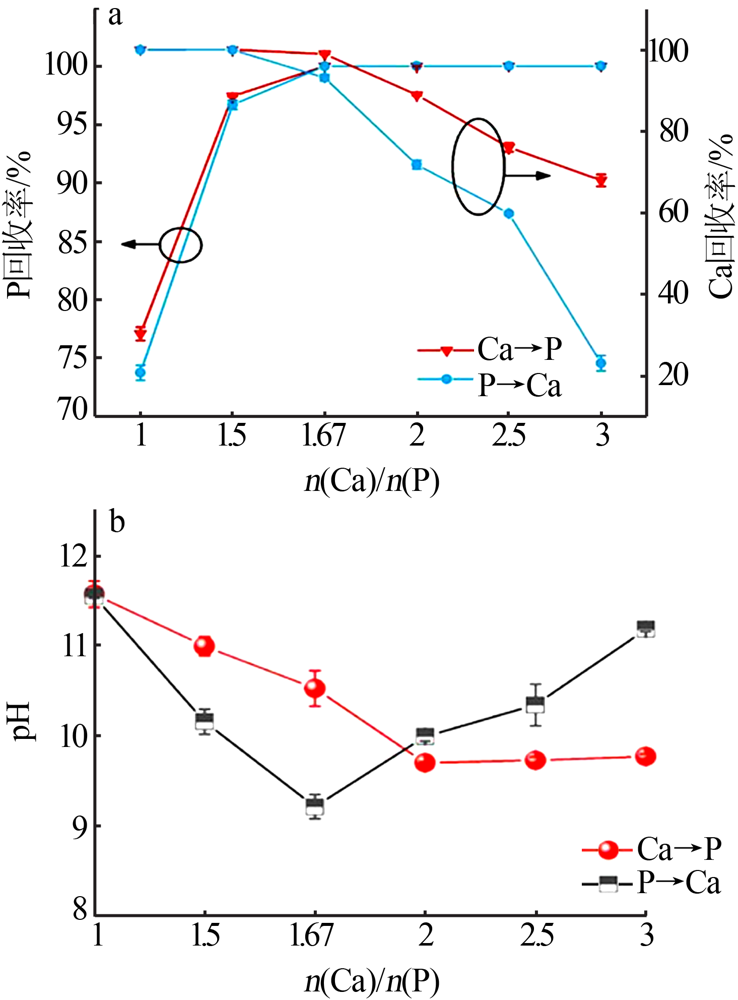

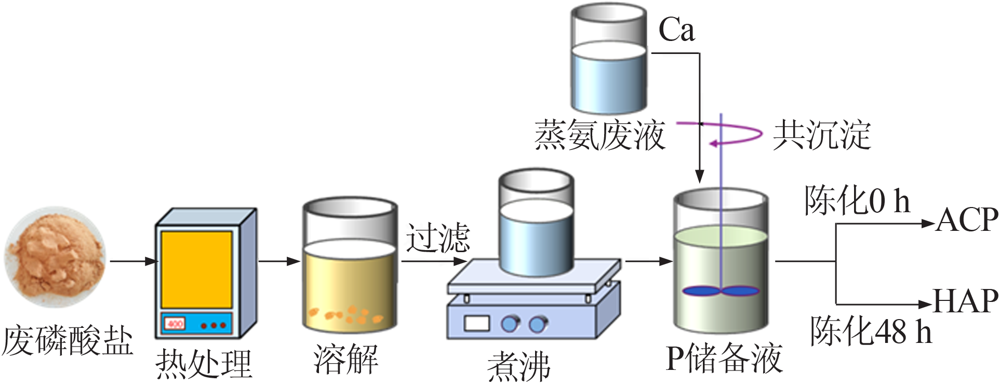

废磷酸盐（PW）是一种主要成分为Na₃PO₄的固体废物;蒸氨废液（DW）是一种主要成分为CaCl₂的高pH（一般高于11）的废液。两种废物均产生量大且处理处置难度大,目前关于两者资源化的研究均较少。研究基于PW高磷含量和DW高钙含量、高pH的特点,提出一种废物共处理工艺,通过沉淀法同步回收磷和钙资源。PW经预处理制得磷储备液与DW共处理,探究了n（Ca）/n（P）、加药顺序、DW的浓度、pH及陈化时间对Ca、P回收率和产物的影响,并研究了产物的应用可能性。结果表明,n（Ca）/n（P）=1.67、蒸氨废液加入磷储备液（Ca→P）为共处理最佳反应条件,该条件下,回收率均大于98.90%;DW的浓度和pH变化对回收率影响较小,Ca、P回收率变化均小于2.00%;随陈化时间延长,钙回收率增大而磷回收率减小,产物由无定形磷酸钙（ACP）逐步转化为羟基磷灰石（HAP）,且其n（Ca）/n（P）增加。不同陈化时间所得产物均具应用潜能。该研究为PW、DW的资源化利用提供了新思路。

关键词: 废磷酸盐, 蒸氨废液, 共处理

Abstract:

Waste phosphate（PW） is a kind of solid waste mainly composed of Na₃PO₄.Steam ammonia waste solution（DW） is a waste solution with high pH（generally higher than 11） mainly composed of CaCl₂.Both kinds of wastes are produced in large quantities and are difficult to be treated and disposed.At present,there is few research on the recycling of them.Based on the characteristics of PW with high phosphorus content and DW with high calcium content and high pH,a waste co-treatment process was proposed,in which phosphorus and calcium resources were recovered synchronously by precipitation method.The phosphorus reserve solution was prepared by pretreatment of PW and co-treatment with DW.The effect of n（Ca）/n（P）,dosing sequence,DW concentration,pH and aging time on the recovery of Ca and P and the products was investigated,and the application possibility of the products was also studied.The results showed that n（Ca）/n（P）=1.67 and adding the ammonia waste liquor to phosphorus reserve solution（Ca→P） was the best reaction conditions for co-treatment.Under these conditions,the recoveries were greater than 98.90%.The concentration and pH of DW had little effect on the recovery,and the recovery rates of Ca and P were less than 2.00%.With the increasing of aging time,the recovery rate of calcium increased and the recovery rate of phosphorus decreased.The product was gradually transformed from amorphous calcium phosphate（ACP） to hydroxyapatite（HAP）,and the molar ratio of n（Ca）/n（P） increased.The products obtained by different aging time had application potential.This study provides a new idea for the resource utilization of PW and DW.

Key words: waste phosphate, steam ammonia waste liquid, co-treatment

中图分类号:

TQ126.3

熊萍,杨文振,李桥,孙秀云,韩卫清. 废磷酸盐与蒸氨废液共处理工艺研究[J]. 无机盐工业, 2022, 54(2): 95-100.

XIONG Ping,YANG Wenzhen,LI Qiao,SUN Xiuyun,HAN Weiqing. Study on co-treatment process of waste phosphate and steam ammonia waste liquid[J]. Inorganic Chemicals Industry, 2022, 54(2): 95-100.

图/表 12

表1

表2

图1

图2

图3

图4

图5

表3

图6

图7

表4

图8

参考文献 29

[1]	CIESLIK B, KONIECZKA P. A review of phosphorus recovery met-hods at various steps of wastewater treatment and sewage sludge management.The concept of “no solid waste generation” and analyti-cal methods[J]. Journal of Cleaner Production, 2017, 142:1728-1740.
[2]	YANG F, CHEN J, YANG M, et al. Phosphorus recovery from sew-age sludge via incineration with chlorine-based additives[J]. Waste Management, 2019, 95:644-651.
[3]	LIU J, CHENG X, QI X, et al. Recovery of phosphate from aqueous solutions via vivianite crystallization:Thermodynamics and influence of pH[J]. Chemical Engineering Journal, 2018, 349:37-46.
[4]	SUN H, MOHAMMED A, LIU Y. Phosphorus recovery from source-diverted blackwater through struvite precipitation[J]. Science of The Total Environment, 2020.Doi: 10.1016/j.scitotenv.2020.140747.
[5]	HERALDY E, RAHMAWATI F HERIYANTO, et al. Preparation of struvite from desalination waste[J]. Journal of Environmental Che-mical Engineering, 2017, 5(2):1666-1675.
[6]	HUANG H, ZHANG D, LI J, et al. Phosphate recovery from swine wastewater using plant ash in chemical crystallization[J]. Journal of Cleaner Production 2017, 168:338-345.
[7]	AFSHAR A, GHORBANI M, EHSANI N, et al. Some important fac-tors in the wet precipitation process of hydroxyapatite[J]. Materials & Design, 2003, 24(3):197-202.
[8]	CICHY B, KUZDZAŁ E, KRZTON H. Phosphorus recovery from aci-dic wastewater by hydroxyapatite precipitation[J]. Journal of Envi-ronmental Management, 2019, 232:421-427.
[9]	DELGADILLO-VELASCO L, HERNÁNDEZ-MONTOYA V, MONTES-MORÁN M A, et al. Recovery of different types of hy-droxyapatite by precipitation of phosphates of wastewater from ano-dizing industry[J]. Journal of Cleaner Production, 2020, 242.Doi: 10.1016/j.jclepro.2019.118564.
[10]	MONBALLIU A, GHYSELBRECHT K, PINOY L, et al. Phospho-rus reclamation by end-of-pipe recovery as calcium phosphate from effluent of wastewater treatment plants of agroindustry[J]. Journal of Environmental Chemical Engineering, 2020.Doi: 10.1016/j.jece.2020.104280.
[11]	YANG M, SHI J, XU Z, et al. Phosphorus removal and recovery from fosfomycin pharmaceutical wastewater by the induced crysta-llization process[J]. Journal of Environmental Management, 2019, 231:207-212.
[12]	HERMASSI M, VALDERRAMA C, DOSTA J, et al. Evaluation of hydroxyapatite crystallization in a batch reactor for the valoriza-tion of alkaline phosphate concentrates from wastewater treatment plants using calcium chloride[J]. Chemical Engineering Journal, 2015, 267:142-152.
[13]	LI X Z, ZHAO Q L. MAP Precipitation from landfill leachate and seawater bittern waste[J]. Environmental Technology, 2002, 23(9):989-1000.
[14]	朱春来, 刘素芹. 基于氨碱法纯碱生产中废液及碱渣的综合利用研究[J]. 化工管理, 2018(14):144-145.
[15]	茅爱新. 氨碱法纯碱生产中废液及碱渣的综合利用[J]. 化学工业与工程技术, 2001(2):31-32.
[16]	李其富. 基于氨碱法纯碱生产中废液及碱渣的综合利用研究[J]. 化工管理, 2019(3):129-130.
[17]	赵启文, 屠兰英, 郭祖鹏, 等. 蒸氨废液蒸发过程物性参数变化规律研究[J]. 无机盐工业, 2014, 46(9):66-67.
[18]	GAO C, DONG Y, ZHANG H, et al. Utilization of distiller waste and residual mother liquor to prepare precipitated calcium carbo-nate[J]. Journal of Cleaner Production, 2007, 15(15):1419-1425.
[19]	KASIKOWSKI T, BUCZKOWSKI R, DEJEWSKA B, et al. Utiliza-ion of distiller waste from ammonia-soda processing[J]. Journal of Cleaner Production, 2004, 12(7):759-769.
[20]	KASIKOWSKI T, BUCZKOWSKI R, CICHOSZ M. Utilisation of synthetic soda-ash industry by-products[J]. International Journal of Production Economics, 2008, 112(2):971-984.
[21]	KASIKOWSKI T, BUCZKOWSKI R, CICHOSZ M, et al. Combined distiller waste utilisation and combustion gases desulphurisation method:The case study of soda-ash industry[J]. Resources,Con-servation and Recycling, 2007, 51(3):665-690.
[22]	张润泽. 氨碱法纯碱生产中废液废渣的治理和综合利用[J]. 化工管理, 2015(8):225.
[23]	BOUYER E, GITZHOFER F, BOULOS M I. Morphological study of hydroxyapatite nanocrystal suspension[J]. Journal of Materials Science:Materials in Medicine, 2000, 11(8):523-531.
[24]	DING H, PAN H, XU X, et al. Toward a detailed understanding of magnesium ions on hydroxyapatite crystallization inhibition[J]. Crystal Growth & Design, 2014, 14(2):763-769.
[25]	HOSNI K, BEN MOUSSA S, BEN AMOR M. Conditions influenc-ing the removal of phosphate from synthetic wastewater:Influence of the ionic composition[J]. Desalination, 2007, 206(1):279-285.
[26]	YUN J, HOLMES B, FOK A, et al. A Kinetic Model for Hydroxyapatite Precipitation in Mineralizing Solutions[J]. Crystal Growth & Design, 2018, 18(5):2717-2725.
[27]	赵亚丽, 宋永会, 钱锋, 等. 不同Ca/P比下碳酸根对磷酸钙沉淀反应回收磷的影响[J]. 环境工程学报, 2014, 8(5):1755-1760.
[28]	DIAZ O A, REDDY K R, MOORE P A. Solubility of inorganic pho-sphorus in stream water as influenced by pH and calcium concen-tration[J]. Water Research, 1994, 28(8):1755-1763.
[29]	Mohd Pu'Ad N A S, Abdul Haq R H, Mohd Noh H, et al. Synjournal method of hydroxyapatite:A review[J]. Materials Today:Proceed-ings, 2020, 29:233-239.

陈化时间/h	n（Ca）/n（P）=1		n（Ca）/n（P）=1.5		n（Ca）/n（P）=1.67		n（Ca）/n（P）=2		n（Ca）/n（P）=2.5		n（Ca）/n（P）=3
陈化时间/h	P	Ca	P	Ca	P	Ca	P	Ca	P	Ca	P	Ca
0	77.50	>99.99	97.41	99.98	>99.99	98.93	>99.99	89.04	>99.99	76.80	>99.99	69.00
6	74.19	>99.99	97.26	99.99	99.93	99.86	>99.99	89.19	>99.99	76.99	>99.99	69.37
12	70.44	>99.99	97.10	99.99	99.73	99.89	>99.99	89.31	>99.99	77.14	>99.99	69.72
24	69.25	>99.99	96.97	>99.99	99.66	99.93	>99.99	89.76	>99.99	78.39	>99.99	70.57
48	69.72	>99.99	96.51	>99.99	99.62	99.96	99.99	90.61	>99.99	79.02	>99.99	70.73

项目		w（有效P₂O₅）	w（碱分,以CaO计）	w（水分）
指标	优等品	≥18.0	≥45.0	≤0.5
	一等品	≥15.0	—	≤0.5
	合格品	≥12.0	—	≤0.5
产物		≥30.7	≥44.2	≤0.2
