关键词: 玻璃纤维毡, 二氧化硅气凝胶, 热导率, 压缩强度, 隔热性能

Abstract:

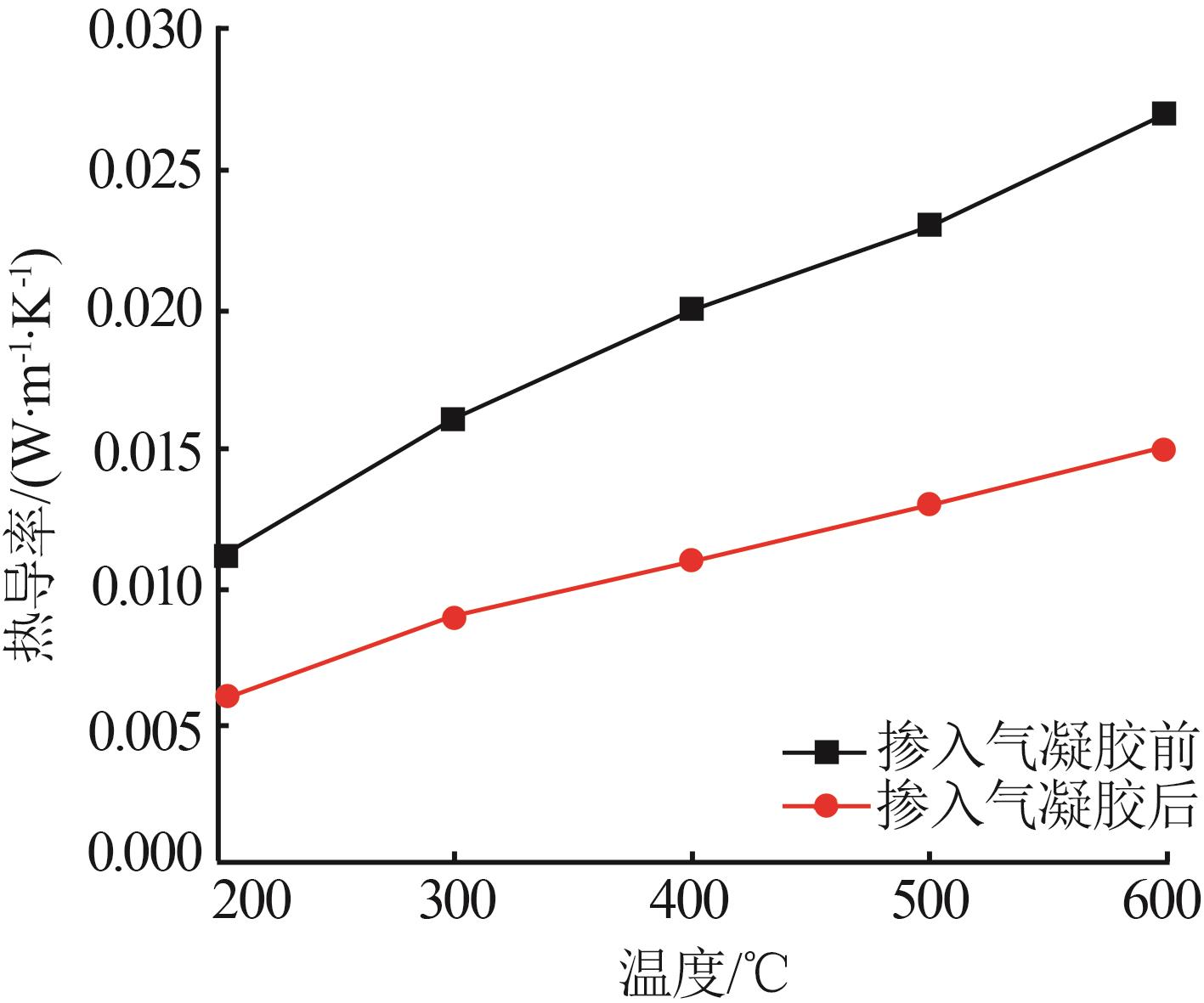

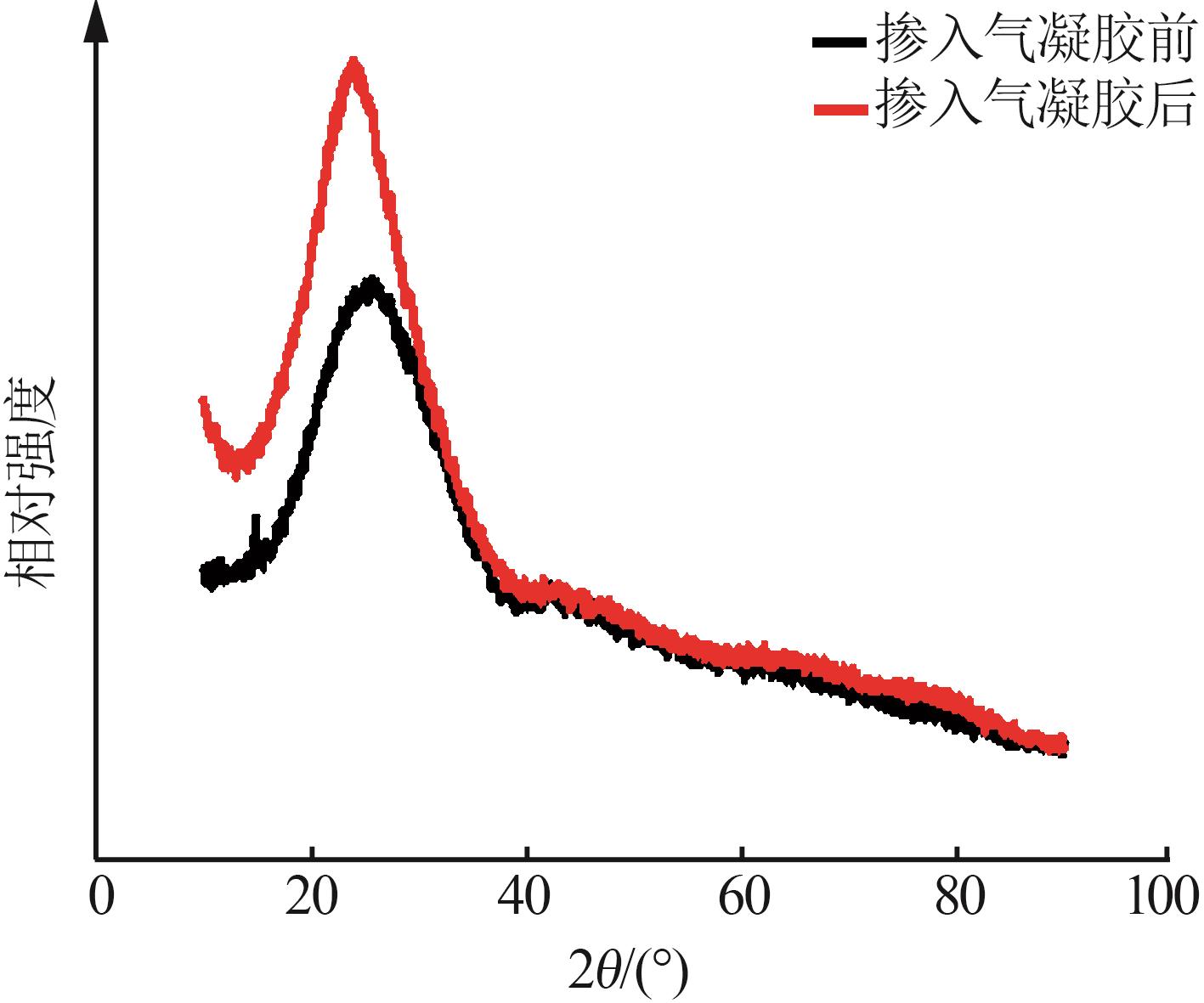

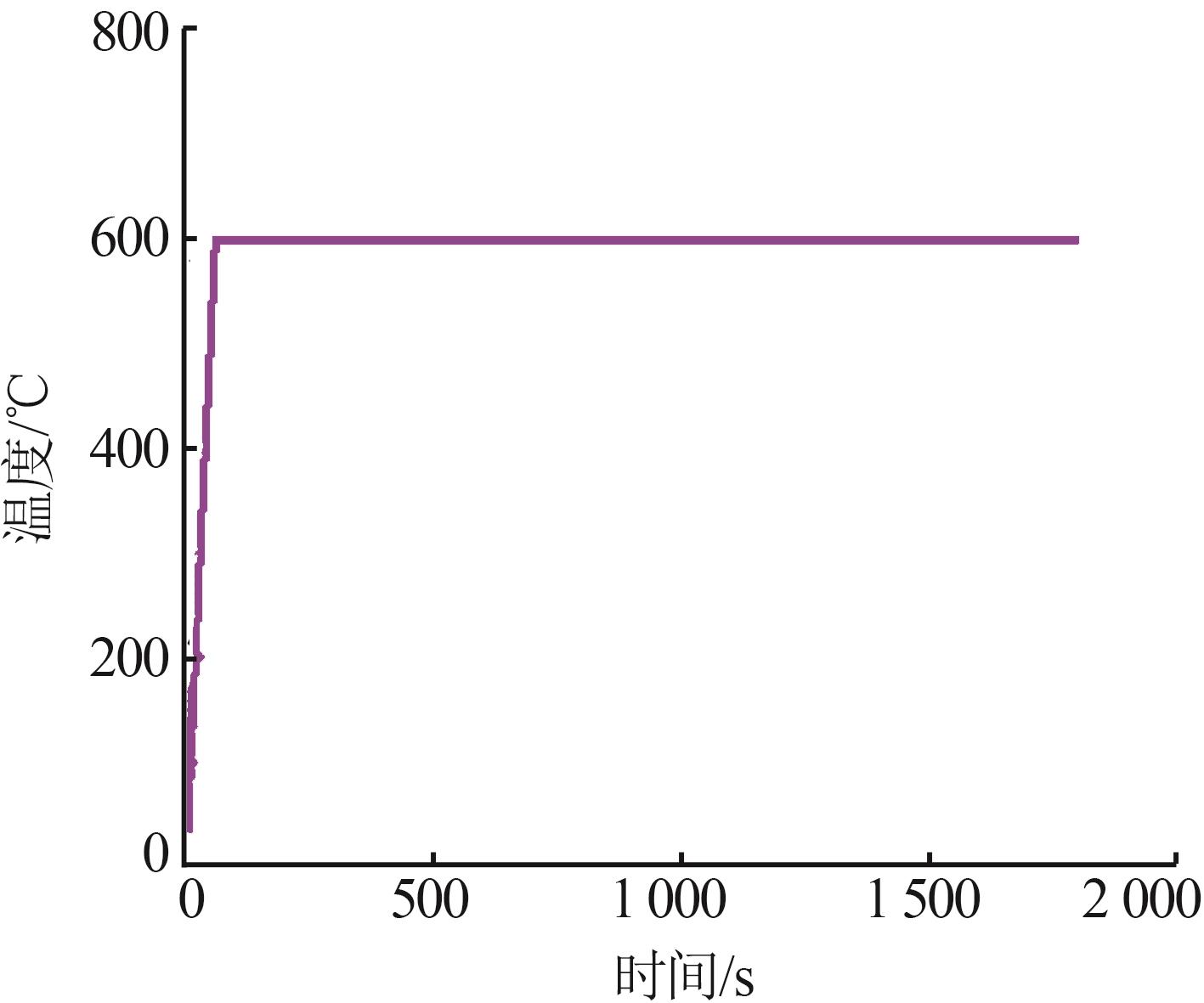

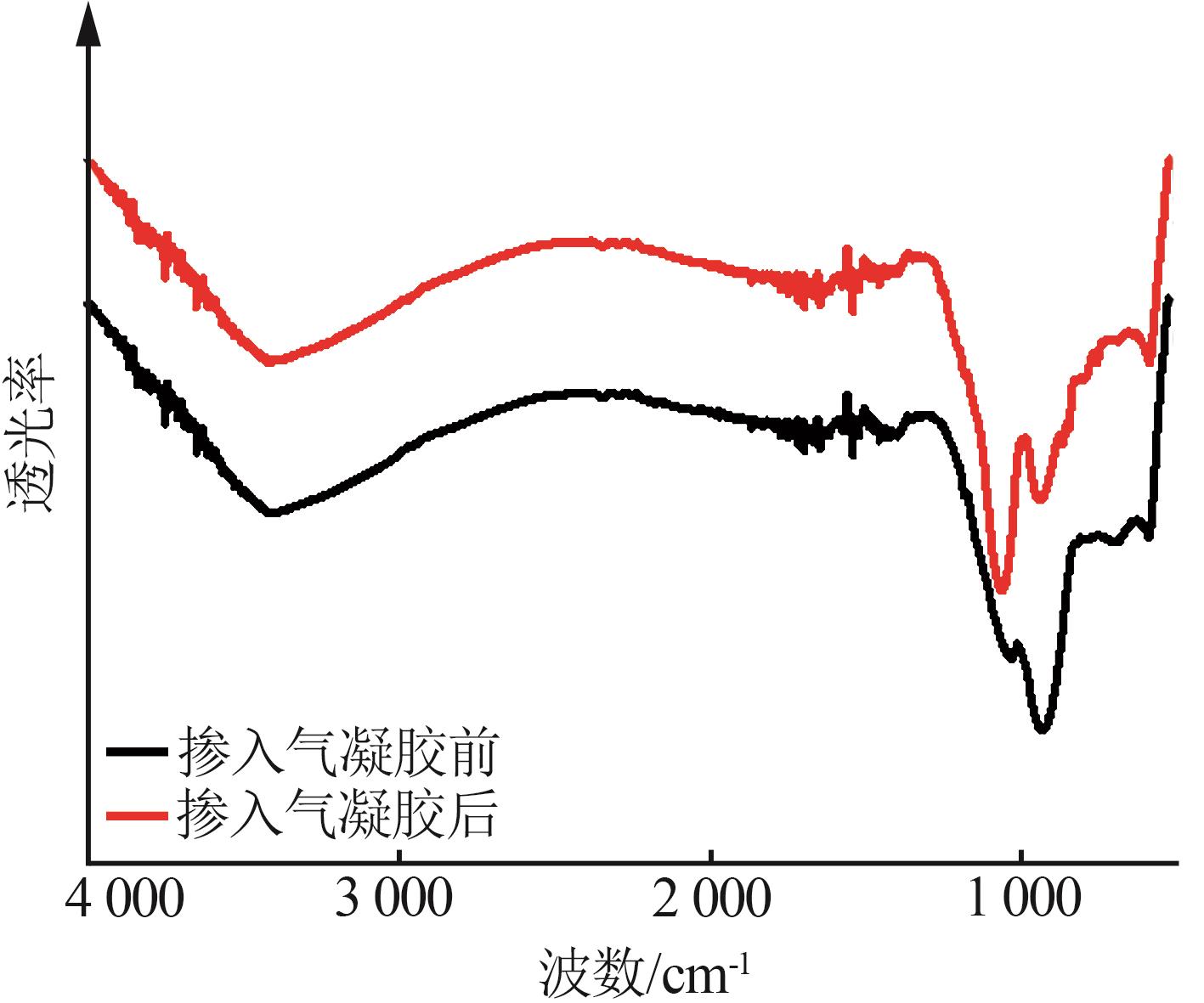

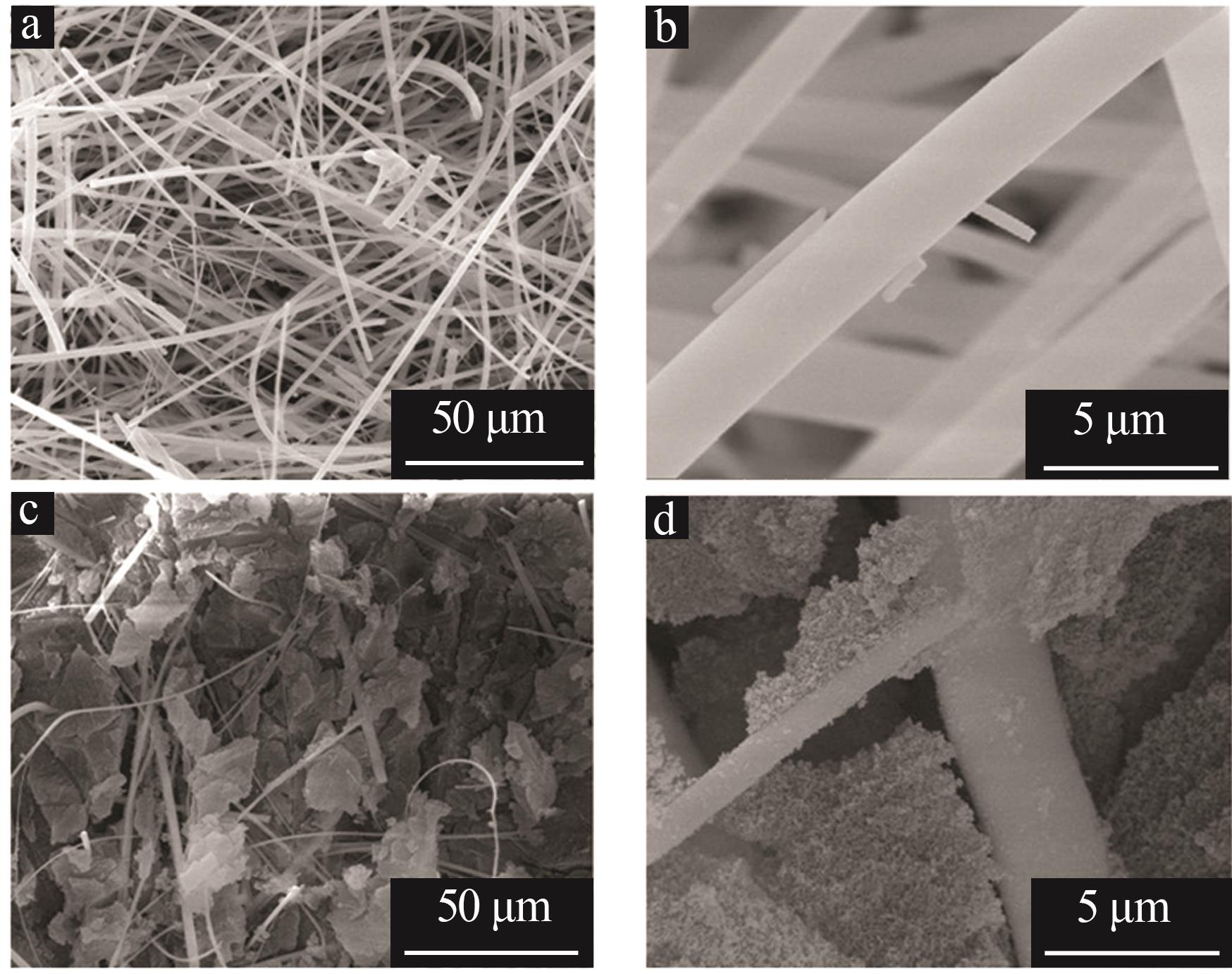

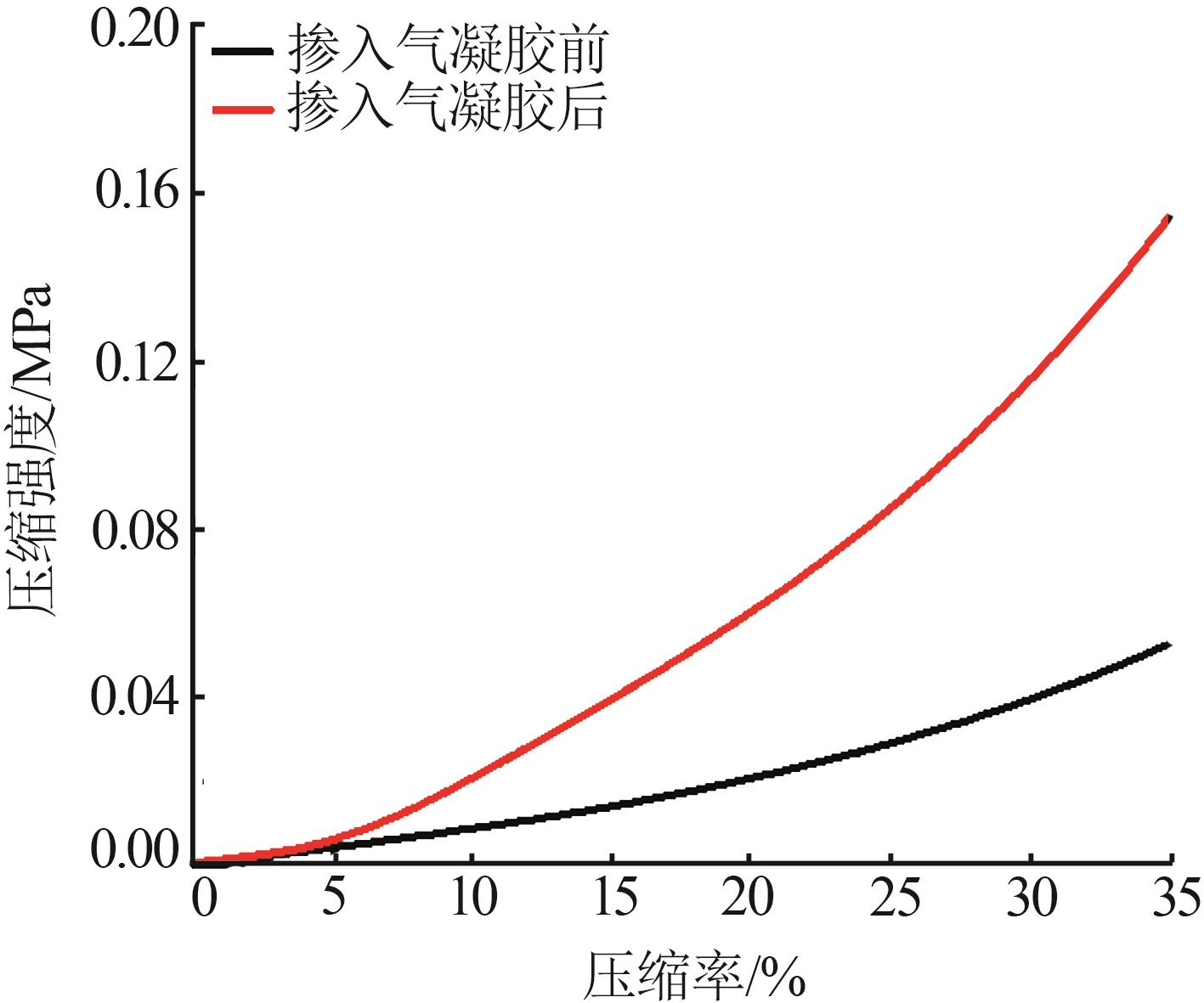

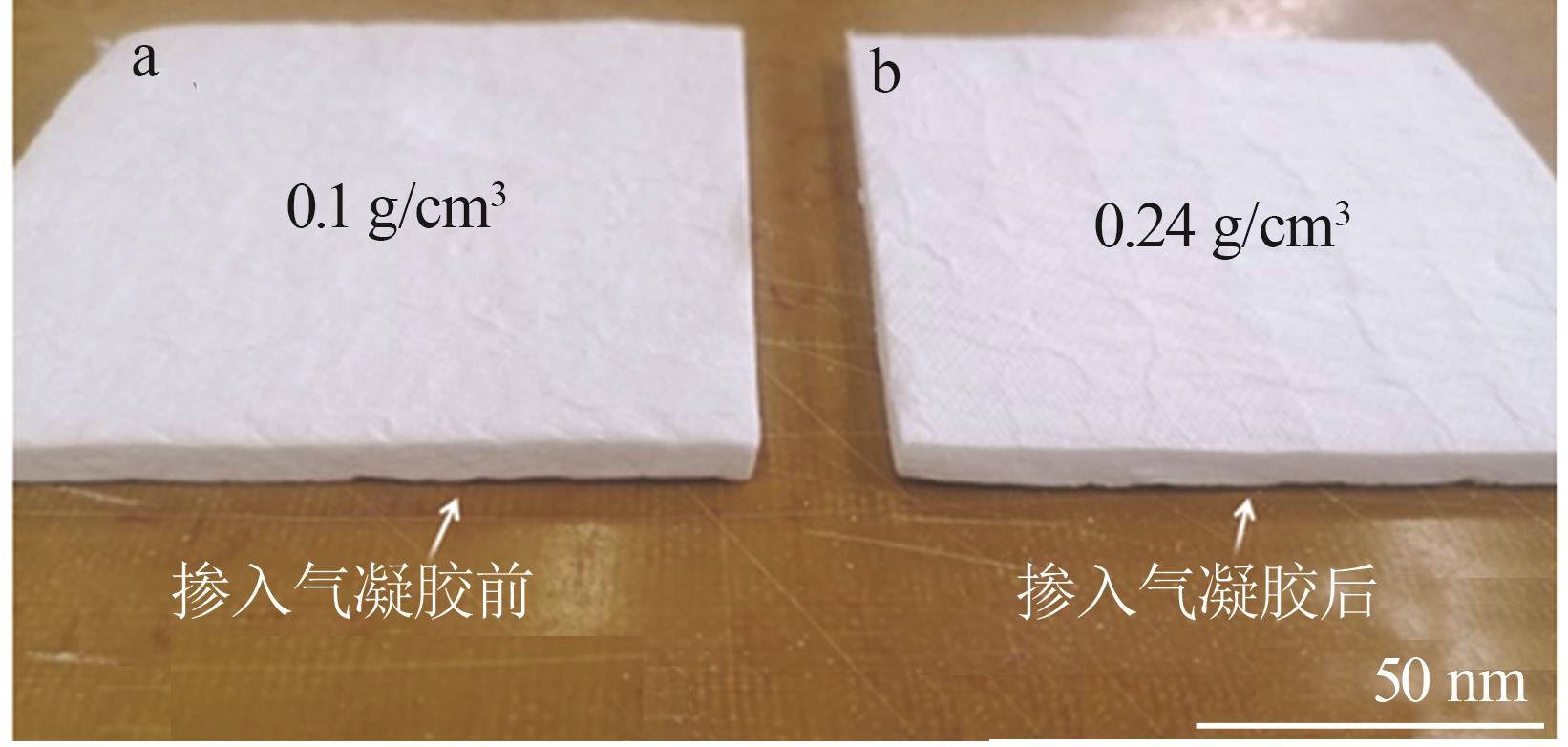

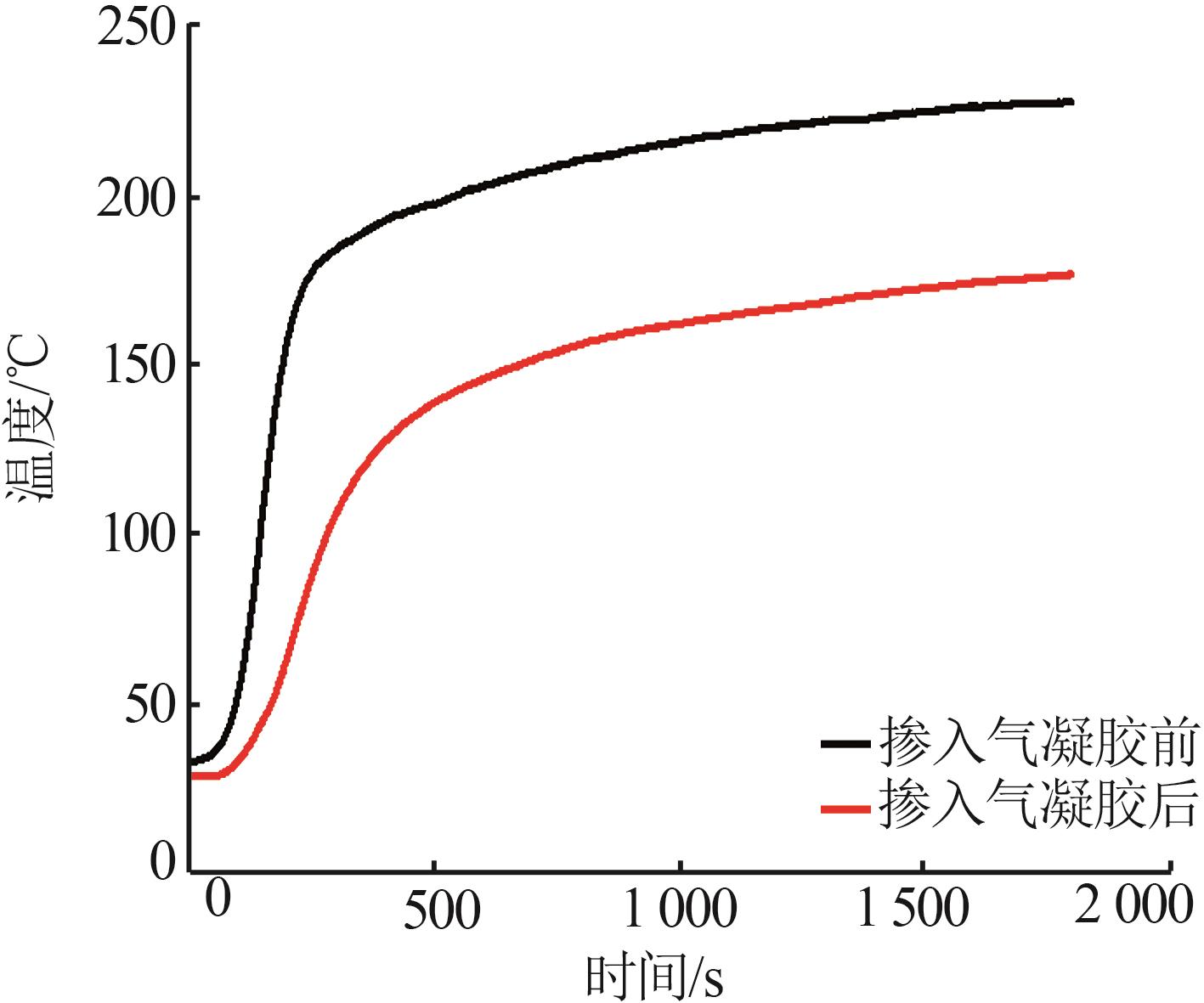

Silica aerogel was added into glass fiber felt by the sol-gel method.The structure of material was characterized by SEM，XRD and FT-IR.The influence of the incorporation of aerogel on thermal insulation performance of glass fiber felt was studied.It was shown that the addition of aerogel increased the compression strength of the material while retaining a certain compressibility and flexibility，which was more conducive to the sealing and heat insulation of the material.The specific surface area of the materials was increased after the incorporation of aerogel，and the thermal conductivity of material was decreased.The temperature rise curve of the back surface of material after the incorporation of aerogel was obviously slowed.The back surface temperature of material was lower than that before the incorporation of aerogel at 89 ℃ when the heat transfer time was 250 s，and lower at 51 ℃ when the heat transfer time was 1 800 s.After the glass fiber felt was mixed with silica aerogel，due to its high compression strength，high heat sink，and low thermal conductivity，it had the ability of efficient thermal insulation in the transient thermal insulation environment.

Key words: glass fiber felt, silica aerogel, thermal conductivity, compressive strength, thermal insulation performance
