二氧化碳在双极膜电渗析系统中溶解吸收过程的研究

doi:10.19964/j.issn.1006-4990.2021-0356

无机盐工业 ›› 2022, Vol. 54 ›› Issue (4): 104-111.doi: 10.19964/j.issn.1006-4990.2021-0356

二氧化碳在双极膜电渗析系统中溶解吸收过程的研究

赵一欣¹(),吴梦凡^1,⁴,王建行¹,赵颖颖^1,^2,³()

1.河北工业大学化工学院,天津 300130
2.海水资源高效利用化工技术教育部工程研究中心
3.河北省现代化工海洋化工协同创新中心
4.中国电子系统工程第四建设有限公司

收稿日期:2021-05-31 出版日期:2022-04-10 发布日期:2022-04-18
作者简介:赵一欣（2000— ）,女,研究生在读,研究方向为海水化学资源利用与矿化固碳;E-mail： luckyzyx001@163.com。
基金资助:
天津市自然科学基金重点项目(20JCZDJC00450);河北省自然科学基金青年项目(B2020202029);河北工业大学基础科研业务费(JBKYTD2001)

Study on process of CO₂ dissolution and absorption in bipolar membrane electrodialysis system

Zhao Yixin¹(),Wu Mengfan^1,⁴,Wang Jianhang¹,Zhao Yingying^1,^2,³()

1. School of Chemical Engineering and Technology,Hebei University of Technology,Tianjin 300130,China
2. Engineering Research Center of Seawater Utilization,Ministry of Education
3. Hebei Collaborative Innovation Center of Modern Marine Chemical Technology
4. The Fourth Construction CO.LTD of China Electronics System Engineering

Received:2021-05-31 Published:2022-04-10 Online:2022-04-18

摘要/Abstract

摘要：

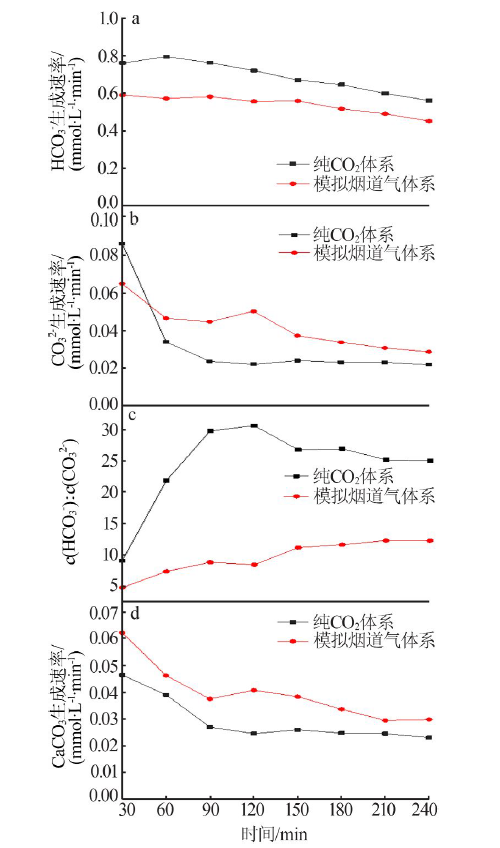

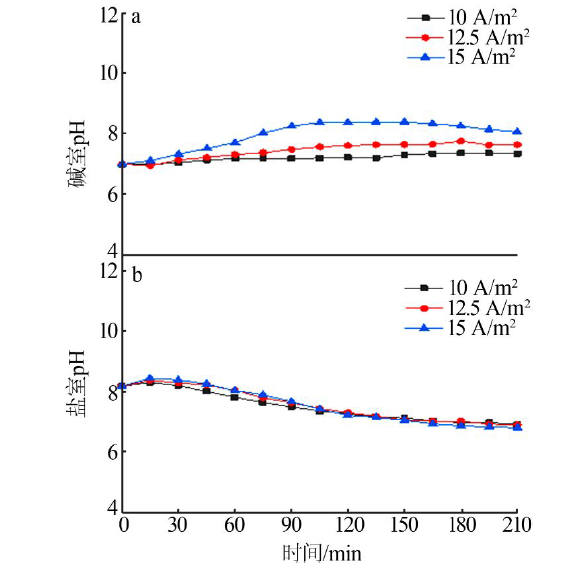

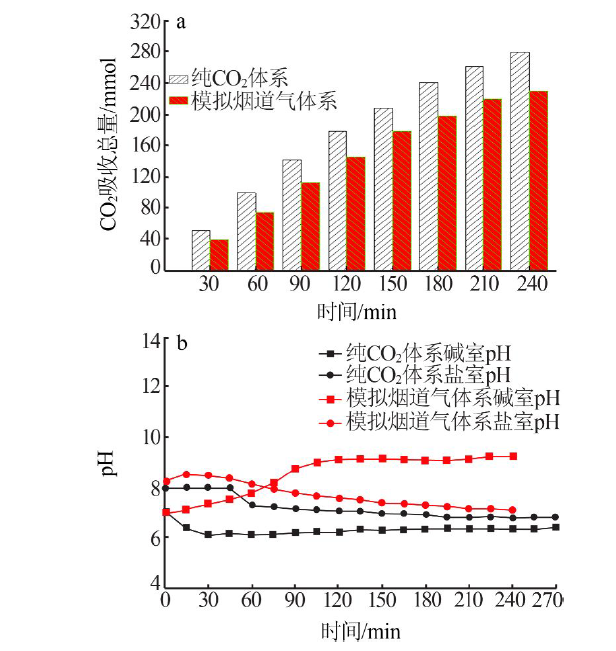

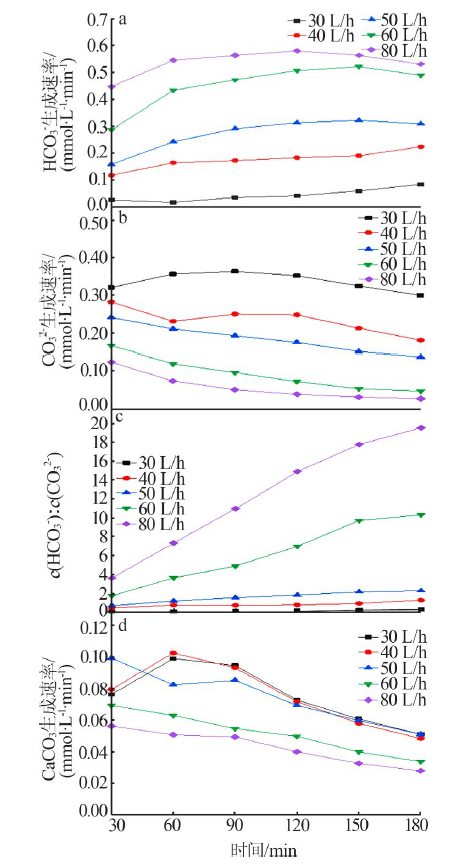

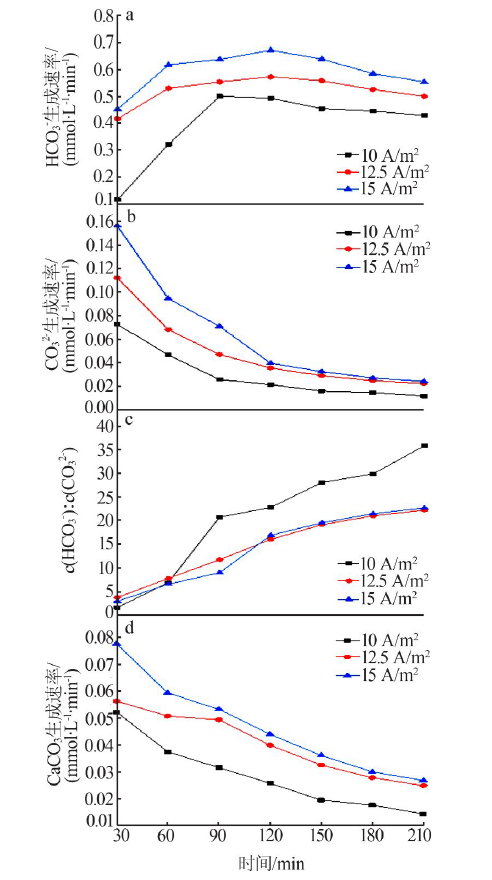

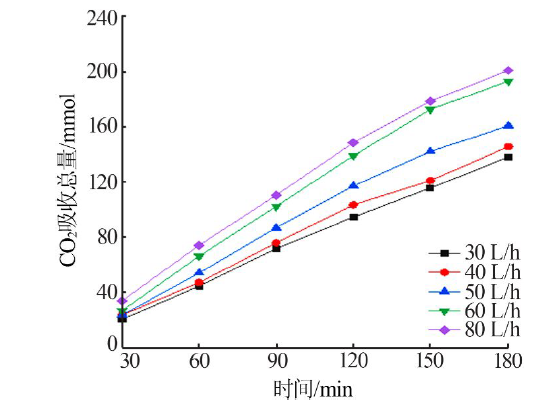

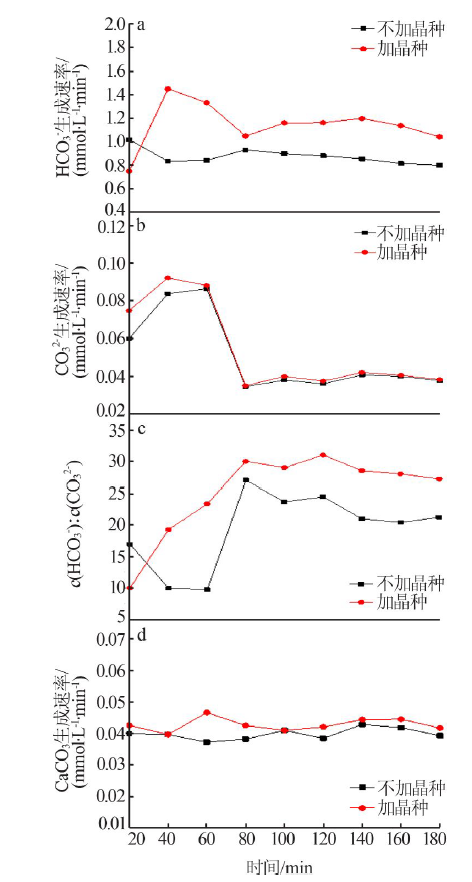

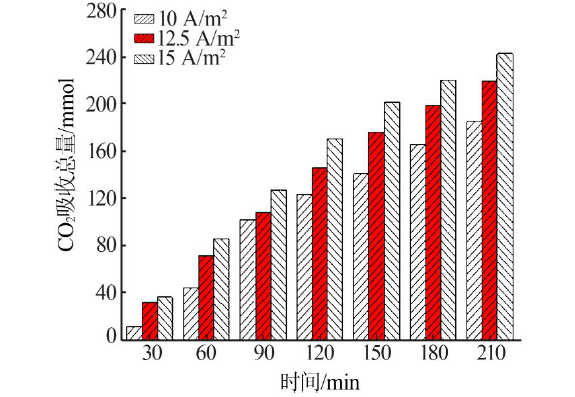

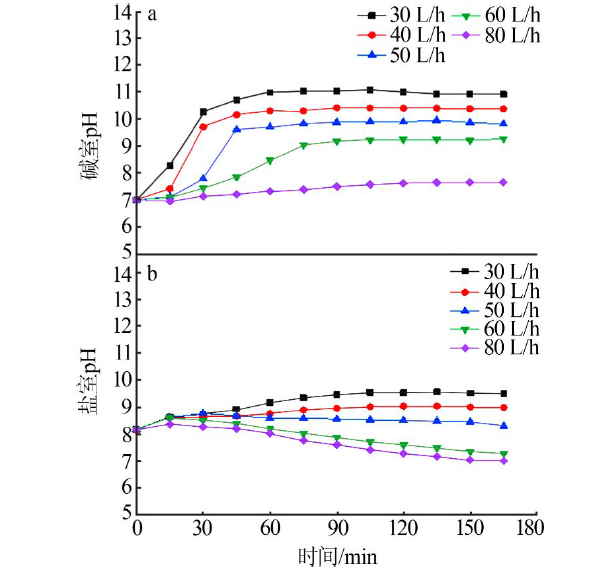

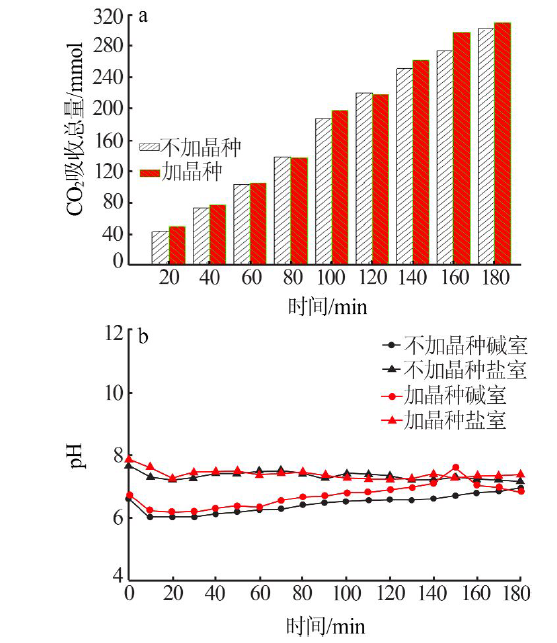

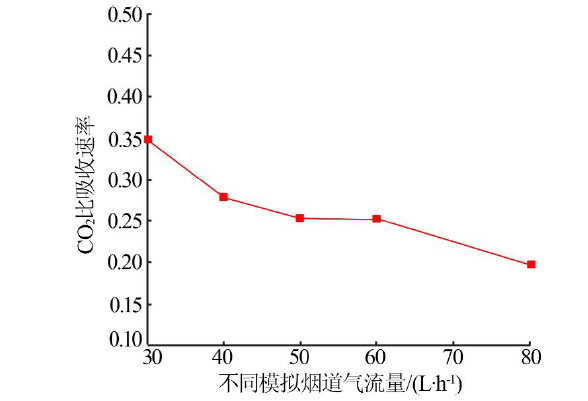

在二氧化碳捕集、利用和封存（CCUS）技术中,海水固碳技术绿色环保、安全可靠,具有很好的发展前景。其中,双极膜电渗析法海水固碳技术的关键之处在于二氧化碳在系统中的溶解吸收。考察了结晶器中添加晶种、通气体系成分、模拟烟道气流量、双极膜电渗析装置的电流密度对海水固碳过程中二氧化碳溶解吸收效果的影响,结果表明：系统外加晶种、模拟烟道气作为通气体系时更有利于二氧化碳在双极膜电渗析系统中的溶解吸收,促进碳酸钙生成。在上述基础上,随着模拟烟道气流量的增加,二氧化碳的比吸收速率降低,二氧化碳在溶液中大部分转化成碳酸氢根,碳酸根和碳酸钙的生成速率则会降低;随着电渗析装置电流密度的提高,碳酸氢根、碳酸根和碳酸钙的生成速率均会随之提高。该研究为酸性气体在双极膜电渗析系统中溶解吸收和矿化利用提供了指导。

关键词: 海水固碳, CO₂溶解吸收, 双极膜电渗析系统, 水解离

Abstract:

Seawater carbon sequestration technology is considered as a green,environmental-friendly,safe and reliable technology among CO₂ capture,utilization and storage（CCUS） technologies,which has good development prospects.The key of seawater carbon sequestration technology is the dissolution and absorption of CO₂ in the bipolar membrane electrodialysis system.The influence of seeding in the crystallizer,the composition of the ventilation system,the simulated flue gas flow and the current density of the bipolar membrane electrodialysis device on the CO₂ dissolution and absorption effect was investigated.It was found that the external crystal seeds and the simulated flue gas was beneficial to the dissolution and absorption of CO₂ in the bipolar membrane electrodialysis system,promoting production of CaCO₃.Based on the above,with the increase of simulated flue gas flow,the specific absorption rate of CO₂ was decreased,and most of CO₂ in the solution was converted into HCO₃^-,while the generation rate of CO₃^2- and CaCO₃ would be reduced.With the increase of current density in electrodialysis unit,the generation rate of HCO₃^-,CO₃^2- and CaCO₃ was increased accordingly.This study provided a guidance for the application of acid gas in dissolution,absorption and mineralization in bipolar membrane electrodialysis system.

Key words: seawater carbon sequestration, CO₂ dissolution and absorption, bipolar membrane electrodialysis system, water dissociation

中图分类号:

TQ127.12

赵一欣,吴梦凡,王建行,赵颖颖. 二氧化碳在双极膜电渗析系统中溶解吸收过程的研究[J]. 无机盐工业, 2022, 54(4): 104-111.

Zhao Yixin,Wu Mengfan,Wang Jianhang,Zhao Yingying. Study on process of CO₂ dissolution and absorption in bipolar membrane electrodialysis system[J]. Inorganic Chemicals Industry, 2022, 54(4): 104-111.

图/表 14

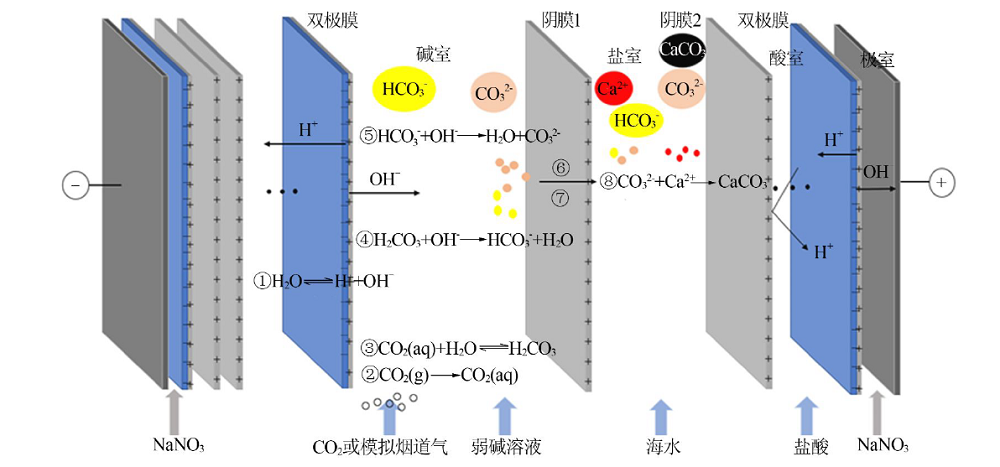

图1

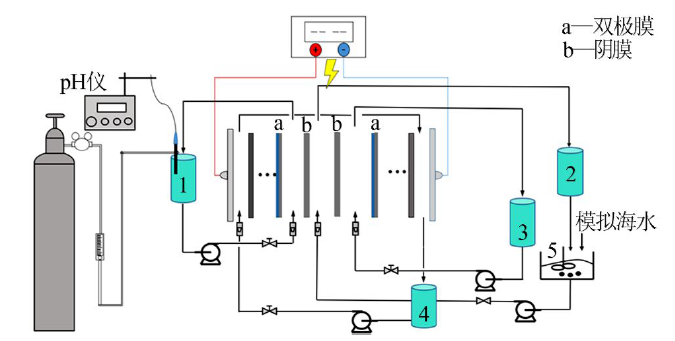

图2

表1

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

参考文献 23

[1]	孙旭东, 张蕾欣, 张博. 碳中和背景下我国煤炭行业的发展与转型研究[J]. 中国矿业, 2021, 30(2):1-6.
[2]	BENNACEUR K, GIELEN D, KERR T, et al. CO₂ capture and storage:A key carbon abatement option[M]. Paris:International Energy Agency, 2008.
[3]	KUMAR A, MADDEN D G, LUSI M, et al. Direct air capture of CO₂ by physisorbent materials[J]. Angewandte Chemie, 2016, 127(480):14580-14585. doi: 10.1002/ange.201506952
[4]	EVGENIA M, SOLOMOM B, PAUL S, et al. CO₂ capture and storage(CCS) cost reduction via infrastructure right-sizing[J]. Chemical Engineering Research and Design, 2017, 119:130-139. doi: 10.1016/j.cherd.2017.01.016
[5]	陆诗建, 高丽娟, 王家凤, 等. 烟气CO₂捕集热能梯级利用节能工艺耦合优化[J]. 化工进展, 2020, 39(2):728-737.
[6]	华贲. 低碳时代石油化工产业资源与能源走势[J]. 化工学报, 2013, 64(1):76-83.
[7]	谢和平, 谢凌志, 王昱飞, 等. 全球二氧化碳减排不应是CCS,应是CCU[J]. 四川大学学报, 2012, 44:1-5.
[8]	BOBICKI E R, LIU Q, XU Z, et al. Carbon capture and storage using alkaline industrial wastes[J]. Progress in Energy & Combustion Science, 2012, 38(2):302-320.
[9]	ARIAS B, ALONSO M, ABANADES C. CO₂ capture by calcium looping at relevant conditions for cement plants:Experimental testing in a 30 kWh Pilot Plan[J]. Industrial & Engineering Chemistry Research, 2017, 56(10):2634-2640. doi: 10.1021/acs.iecr.6b04617
[10]	向乐凯, 李枫, 赵宁, 等. 二氧化碳鼓泡碳化法制备碳酸钙的研究[J]. 无机盐工业, 2016, 48(8):46-51.
[11]	国际能源署最新版CCS技术路线图即将出炉[J]. 低碳世界, 2013(6):10.
[12]	WANG W, HU M, ZHENG Y, et al. CO₂ fixation in Ca²⁺-/Mg²⁺-rich aqueous solutions through enhanced carbonate precipitation[J]. Ind.Eng.Chem.Res., 2011, 50(13):8333-8339.
[13]	张密林, 马立世, 景晓燕, 等. 海水─有机胺体系吸收CO₂的研究[J]. 应用科技, 2000(3):21-22.
[14]	CHERNOVA N I, KISELEVA S V. The wastewater using in technologies of bio-oil production from microalgae:CO₂ capture and storage[J]. IOP Conference Series Materials Science and Engineering, 2021, 1037(1).Doi: 10.1088/1757-899X/1037/1/012045. doi: 10.1088/1757-899X/1037/1/012045
[15]	ZHAO Y, CAO H, XIE Y, et al. Mechanism studies of a CO₂ participant softening pretreatment process for seawater desalination[J]. Desalination, 2016, 393:166-173. doi: 10.1016/j.desal.2015.12.014
[16]	ZHAO Y, ZHANG Y, LIU J, et al. Trash to treasure:Seawater pretreatment by CO₂ mineral carbonation using brine pretreatment waste of soda ash plant as alkali source[J]. Desalination, 2017, 407:85-92. doi: 10.1016/j.desal.2016.12.018
[17]	XU T, HUANG C. Electrodialysis-based separation technologies:A critical review[J]. AIChE, 2008, 54:3147-3159. doi: 10.1002/aic.11643
[18]	SHEN J, YU J, HUANG J, et al. Preparation of highly pure tetrapropyl ammonium hydroxide using continuous bipolar membrane electrodialysis[J]. Chem.Eng., 2013, 220:311-319.
[19]	IBANEZ R, PEREZ-GONZALEZ A, GOMEZ P, et al. Acid and base recovery from softened reverse osmosis(RO) brines.Experimental assessment using model concentrates[J]. Desalination, 2013, 309:165-170. doi: 10.1016/j.desal.2012.10.006
[20]	YANG Y, GAO X, FAN A, et al. An innovative beneficial reuse of seawater concentrate using bipolar membrane electrodialysis[J]. Membr.Sci., 2014, 449:119-126.
[21]	NAGASAWA H, YAMASAKI A, IIZUKA A, et al. A new recovery process of carbon dioxide from alkaline carbonate solution via electrodialysis[J]. AIChE, 2009, 55:3286-3293. doi: 10.1002/aic.11907
[22]	ZHAO Y, WANG J, JI Z, et al. A novel technology of carbon dioxide adsorption and mineralization via seawater decalcification by bipolar membrane electrodialysis system with a crystallizer[J]. Chem.Eng., 2020, 381.Doi: 10.1016/j.cej.2019.122542. doi: 10.1016/j.cej.2019.122542
[23]	ZHAO Y, WANG L, JI Z, et al. Collaborative disposal of problematic calcium ions in seawater and carbon and sulfur pollutants in flue gas by bipolar membrane electrodialysis[J]. Desalination, 2020, 494.Doi: 10.1016/j.desal.2020.114654. doi: 10.1016/j.desal.2020.114654

实验编号	体系	通气流量 / （L·h^-1）	CO₂体积分数/%	SO₂体积分数/%	电流密度/ （A·m^-2）	液体循环流量/ （L·h^-1）	是否添加晶种
1	纯CO₂	6	100	—	12.5	60	否
2	纯CO₂	6	100	—	12.5	60	是
3	模拟烟道气	60	10	0.5	12.5	60	是
4	模拟烟道气	30	10	0.5	12.5	60	是
5	模拟烟道气	40	10	0.5	12.5	60	是
6	模拟烟道气	50	10	0.5	12.5	60	是
7	模拟烟道气	80	10	0.5	12.5	60	是
8	模拟烟道气	60	10	0.5	10.0	60	是
9	模拟烟道气	60	10	0.5	15.0	60	是
