乏燃料熔盐电解后处理动力学模型研究

doi:10.19964/j.issn.1006-4990.2022-0281

摘要/Abstract

摘要：

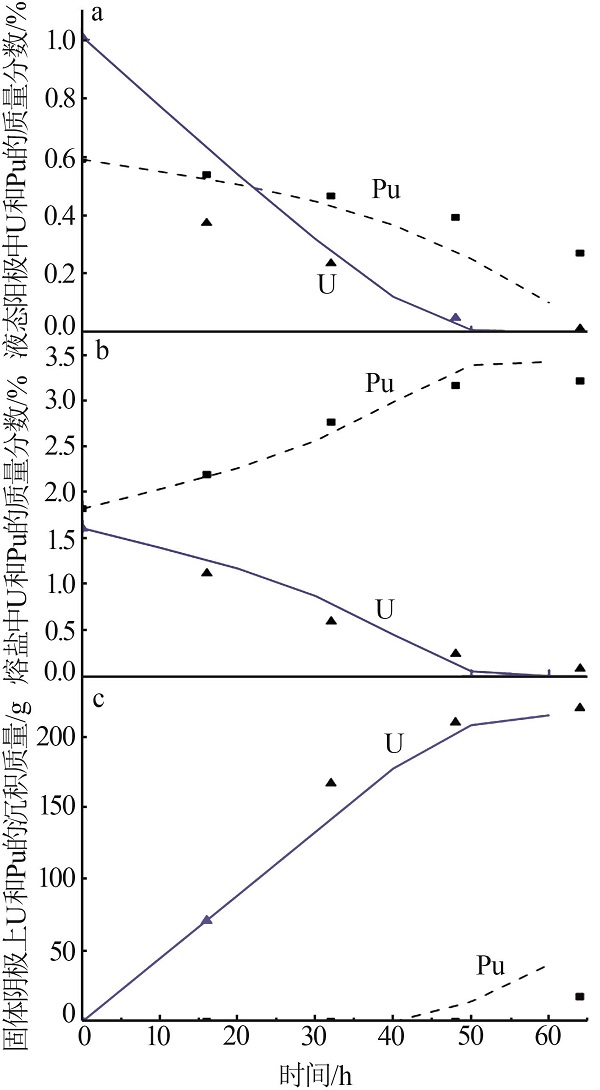

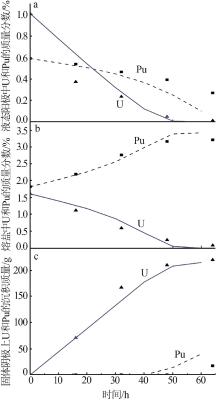

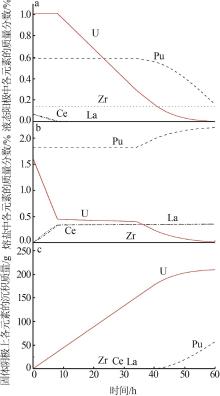

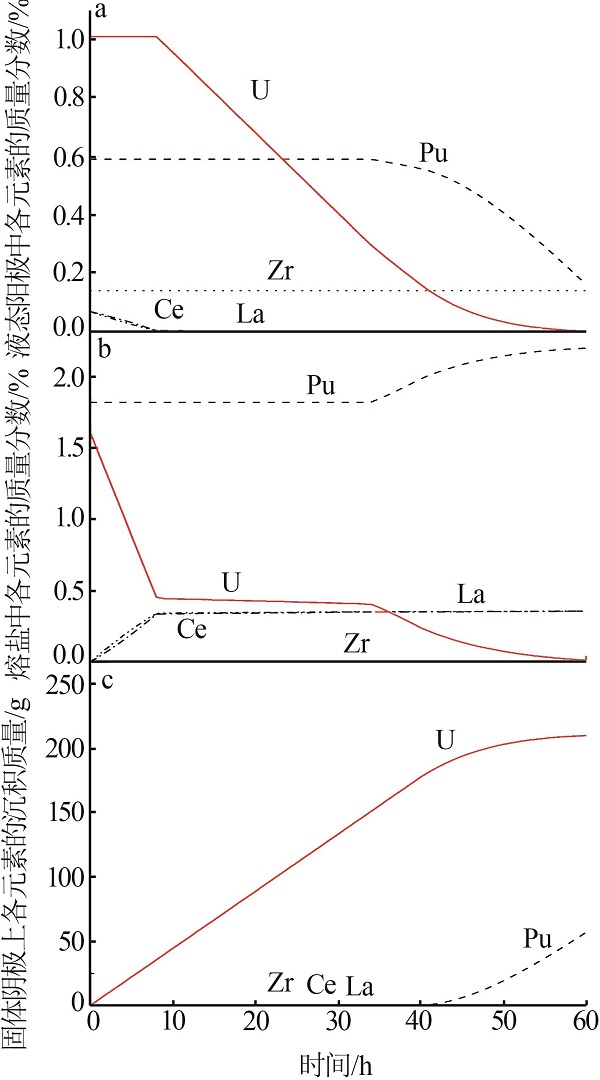

电解精炼是乏燃料干法后处理工艺中的关键环节。针对氯化锂-氯化钾（LiCl-KCl）熔盐环境中的电解精炼行为，基于电极表面处的反应过程建立了动力学模型。通过与现有实验数据的比较验证了模型的有效性。通过该模型，可以预测电解精炼过程中液镉阳极中乏燃料的溶解和阴极处金属沉积的动力学特征，以及所涉及元素的分电流、电极电位和熔盐中离子浓度的演变。除此之外，该模型还能模拟多元素复杂体系电解精炼的过程。当使用锆、铀、钚及稀土作为阳极时，模拟结果显示在阳极处锕系元素和稀土元素随时间逐渐溶解，而惰性金属几乎不溶解。在熔盐中，钚的浓度逐渐增加而铀的浓度逐渐减少，当钚开始在固体阴极发生沉积后，铀的沉积速率减小，而稀土元素和锆在阴极的沉积量极少。

关键词: 乏燃料, 高温冶金, 电解精炼, 模拟

Abstract:

Electrorefining is the key process in used nuclear fuel dry reprocessing.Aiming at the electrorefining behavior of lithium chloride and potassium chloride（LiCl-KCl） molten salt environment，a kinetic model was established based on the reaction process at the electrode surface.The model was validated the experimental data.The model could predict the dissolution of spent fuel in the anode and the dynamic characteristics of metal deposition at the cathode，as well as the evolution of the partial current，electrode potential and ion concentration in molten salt of the elements involved in the electrorefining process.In addition，the model could also simulate the process of electrorefining in multi-element complex system.When the Zr，U，Pu and rare earth metal were used as the anode，simulation results showed that the actinides and rare earth were dissolved gradually on the anode，but the Zr was hardly dissolved.In the molten salt，the concentration of plutonium was increased but the concentration of uranium was decreased.After the deposition of plutonium，the deposition rate of uranium was decreased，with little rare earth or Zr depositing on the cathode.

Key words: used nuclear fuel, pyroprocessing, electrorefining, modeling

中图分类号:

O646.51

衣峰,周文涛,王德忠. 乏燃料熔盐电解后处理动力学模型研究[J]. 无机盐工业, 2022, 54(11): 45-51.

YI Feng,ZHOU Wentao,WANG Dezhong. Study on kinetic model of electrorefining reprocessing of used nuclear fuel molten salt[J]. Inorganic Chemicals Industry, 2022, 54(11): 45-51.

图/表 6

图1

表1

图2

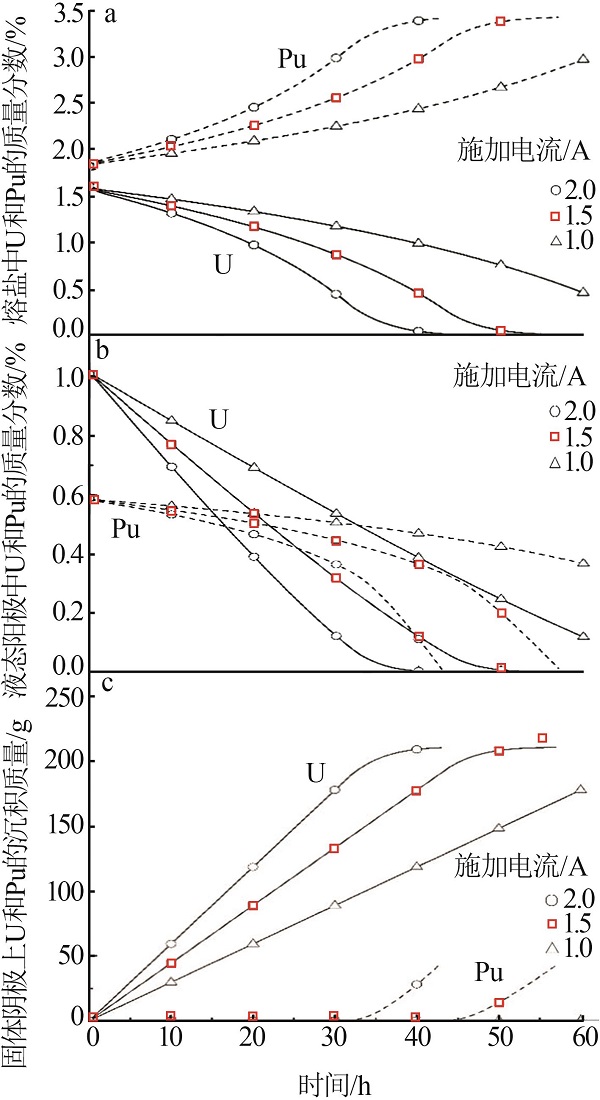

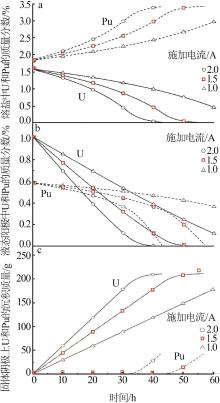

图3

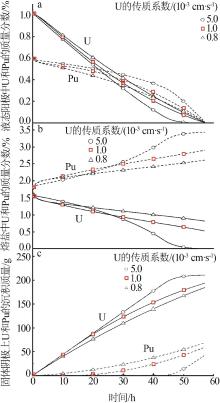

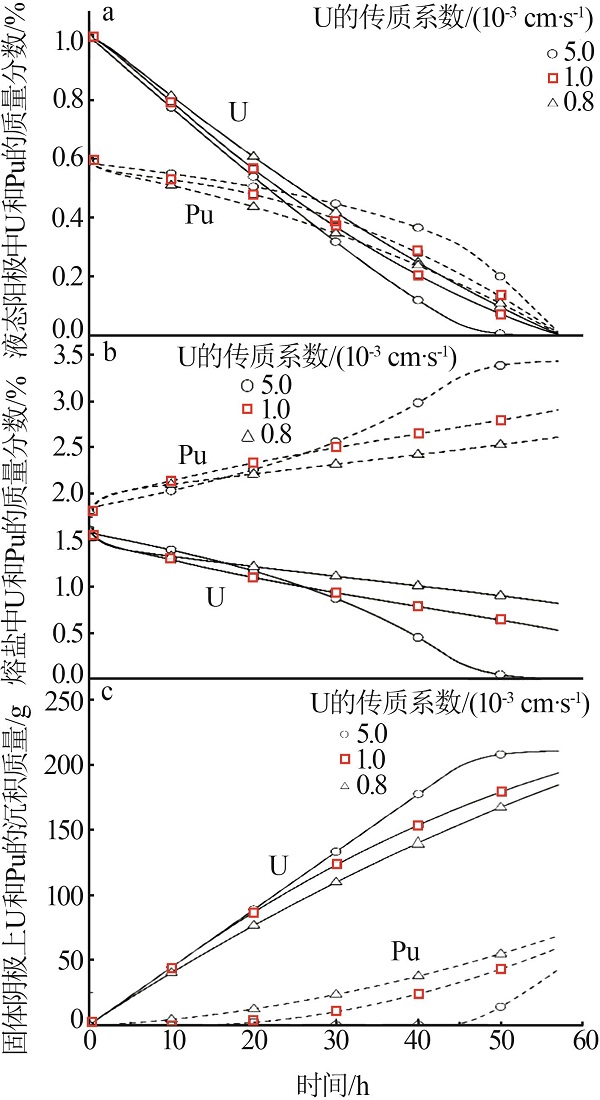

图4

图5

参考文献 18

1	唐浩,任一鸣,邵浪,等.熔盐电解法乏燃料干法后处理技术研究进展[J].核化学与放射化学,2017,39(6):385-396.
	TANG Hao, REN Yiming, SHAO Lang, et al.Development of pyroprocessing of spent nuclear fuel by molten salts electrolysis[J].Journal of Nuclear and Radiochemistry,2017,39(6):385-396.
2	LIU Yichuan, LIU Yalan, JIANG Shilin, et al.Recent progress on chemical species of uranium in molten chlorides[J].Acta Chimica Sinica,2021,79(12):1425-1437.
3	林如山,何辉,唐洪彬,等.我国乏燃料干法后处理技术研究现状与发展[J].原子能科学技术,2020,54(S1):115-125.
	LIN Rushan, HE Hui, TANG Hongbin, et al.Progress and development of dry reprocessing technology of spent fuel in China[J].Atomic Energy Science and Technology,2020,54(S1):115-125.
4	伍思达,林如山,张磊,等.干法后处理废盐中活泼裂片元素的净化工艺研究进展[J].无机盐工业,2022,54(4):81-87.
	WU Sida, LIN Rushan, ZHANG Lei, et al.Research progress on purification process for active crack elements in waste salt by dry post-treatment[J].Inorganic Chemicals Industry,2022,54(4):81-87.
5	叶国安,郑卫芳,何辉,等.我国核燃料后处理技术现状和发展[J].原子能科学技术,2020,54(S1):75-83.
	YE Guoan, ZHENG Weifang, HE Hui, et al.Status and development of technology on reprocessing spent nuclear fuel in China[J].Atomic Energy Science and Technology,2020,54(S1):75-83.
6	JOHNSON I.The thermodynamics of pyrochemical processes for liquid metal reactor fuel cycles[J].Journal of Nuclear Materials,1988,154(1):169-180.
7	NAWADA H P, BHAT N P.Thermochemical modelling of electrotransport of uranium and plutonium in an electrorefiner[J].Nu-clear Engineering and Design，1998,179(1):75-99.
8	GHOSH S, REDDY B P, NAGARAJAN K, et al.PRAGAMAN：A computer code for simulation of electrotransport during moltensalt electrorefining[J].Nuclear Technology,2010,170(3):430-443.
9	KOBAYASHI T, TOKIWAI M.Development of trail，a simulation code for the molten salt electrorefining of spent nuclear fuel[J].Journal of Alloys and Compounds,1993,197(1):7-16.
10	HOOVER R, PHONGIKAROON S, SIMPSON M, et al.Development of computational models for the mark-Ⅳ electrorefiner：Effect of uranium，plutonium，and zirconium dissolution at the fuel basket-salt interface[J].Nuclear Technology,2010,171: 276-284.
11	CUMBERLAND R M, YIM M S.Development of a 1D transient electrorefiner model for pyroprocess simulation[J].Annals of Nuclear Energy,2014,71: 52-59.
12	TOMCZUK Z, ACKERMAN J P, WOLSON R D, et al.Uranium transport to solid electrodes in pyrochemical reprocessing of nuclear fuel[J].Journal of the Electrochemical Society,1992,139(12):3523-3528.
13	ZHANG Jinsuo.Kinetic model for electrorefining，part I：Model development and validation[J].Progress in Nuclear Energy,2014,70: 279-286.
14	顾徐波.乏燃料熔盐电解精炼中主要镧系元素性质研究[D].上海：上海交通大学，2020.
	GU Xubo.Study on the properties of main lanthanides in spent fuel molten salt electrorefining[D].Shanghai：Shanghai Jiao Tong University，2020.
15	张磊,王有群,谢书宝,等.LiCl-KCl、NaCl-KCl和KCl熔盐体系中Ce（Ⅲ）的电化学行为[J].核化学与放射化学,2021,43(5):379-386.
	ZHANG Lei, WANG Youqun, XIE Shubao, et al.Electrochemical behavior of Ce（Ⅲ） in LiCl-KCl，NaCl-KCl and KCl molten salt[J].Journal of Nuclear and Radiochemistry,2021,43(5):379-386.
16	XIAO Yiqun, WANG Youqun, LIN Rushan, et al.Electrochemical behavior of Zr（Ⅳ） on Mo electrode in LiCl-KCl molten salt[J].Journal of Nuclear and Radiochemistry,2018,40(2):100-104.
17	程方园.LiCl-KCl熔盐体系中La、Pr和U的电化学行为研究[D].哈尔滨：哈尔滨工程大学，2021.
	CHENG Fangyuan.Electrochemical behavior of La，Pr，and U in LiCl-KCl molten salt system[D].Harbin：Harbin Engineering University，2021.
18	ZHANG Jinsuo, LAHTI E A, ZHOU Wentao.Thermodynamic properties of actinides and rare earth fission products in liquid cadmium[J].Journal of Radioanalytical and Nuclear Chemistry,2015,303(3):1637-1648.

	UCl₃	PuCl₃
E_ap （V，vs.Cl₂/Cl^-）	-2.453	-2.756
E_ap Cd（V，vs.Cl₂/Cl^-）	-2.551	-2.566
Cd中的活度系数	82.62	1.74×10^-4
K^m /（cm?s^-1）	4.9×10^-3	4.18×10^-3
K^Cd/（cm?s^-1）	5.9×10^-3	5.9×10^-3
