硝酸型废退锡水的分离特性与蒸馏强化偏锡酸回收

doi:10.19964/j.issn.1006-4990.2021-0603

摘要/Abstract

摘要：

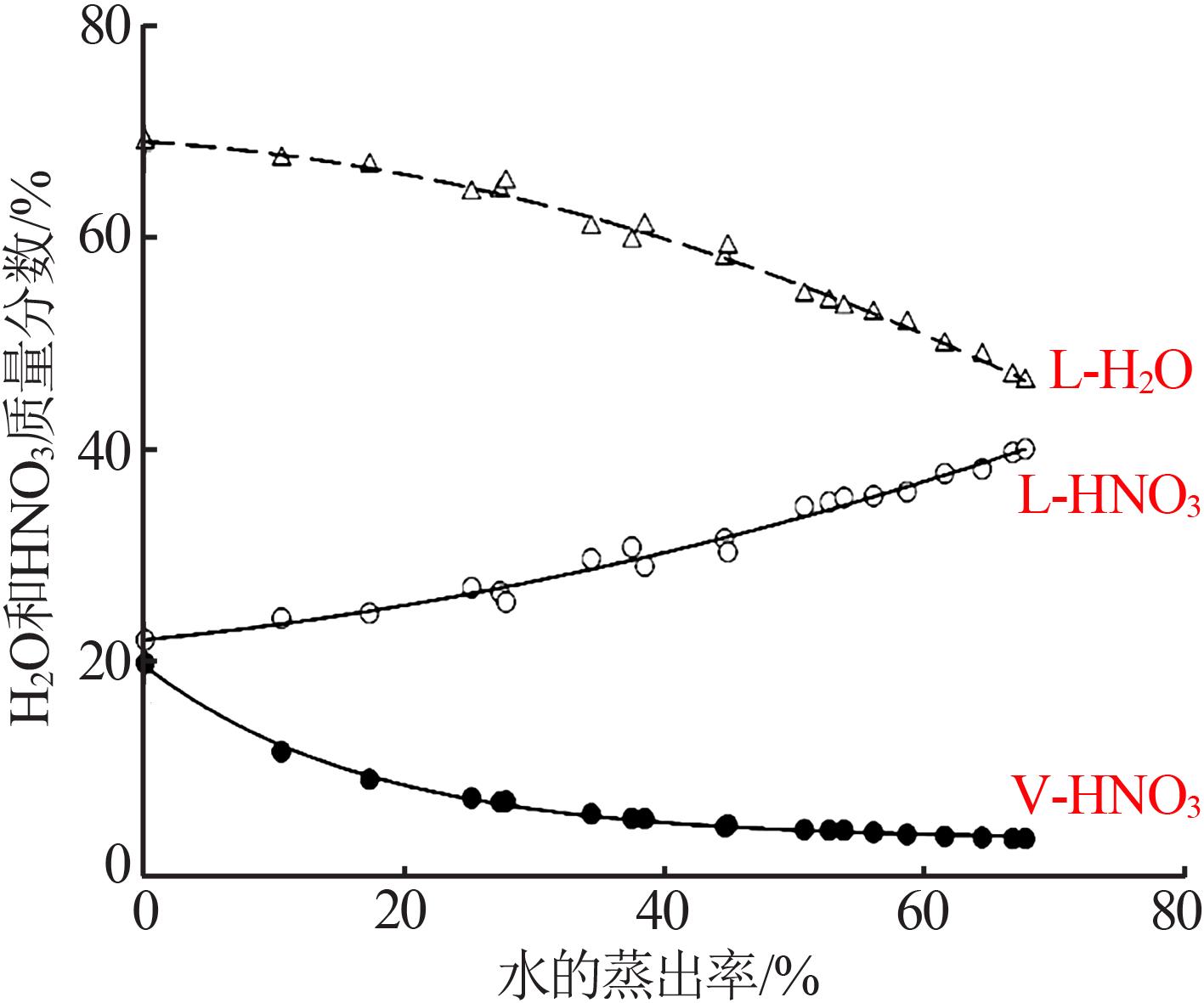

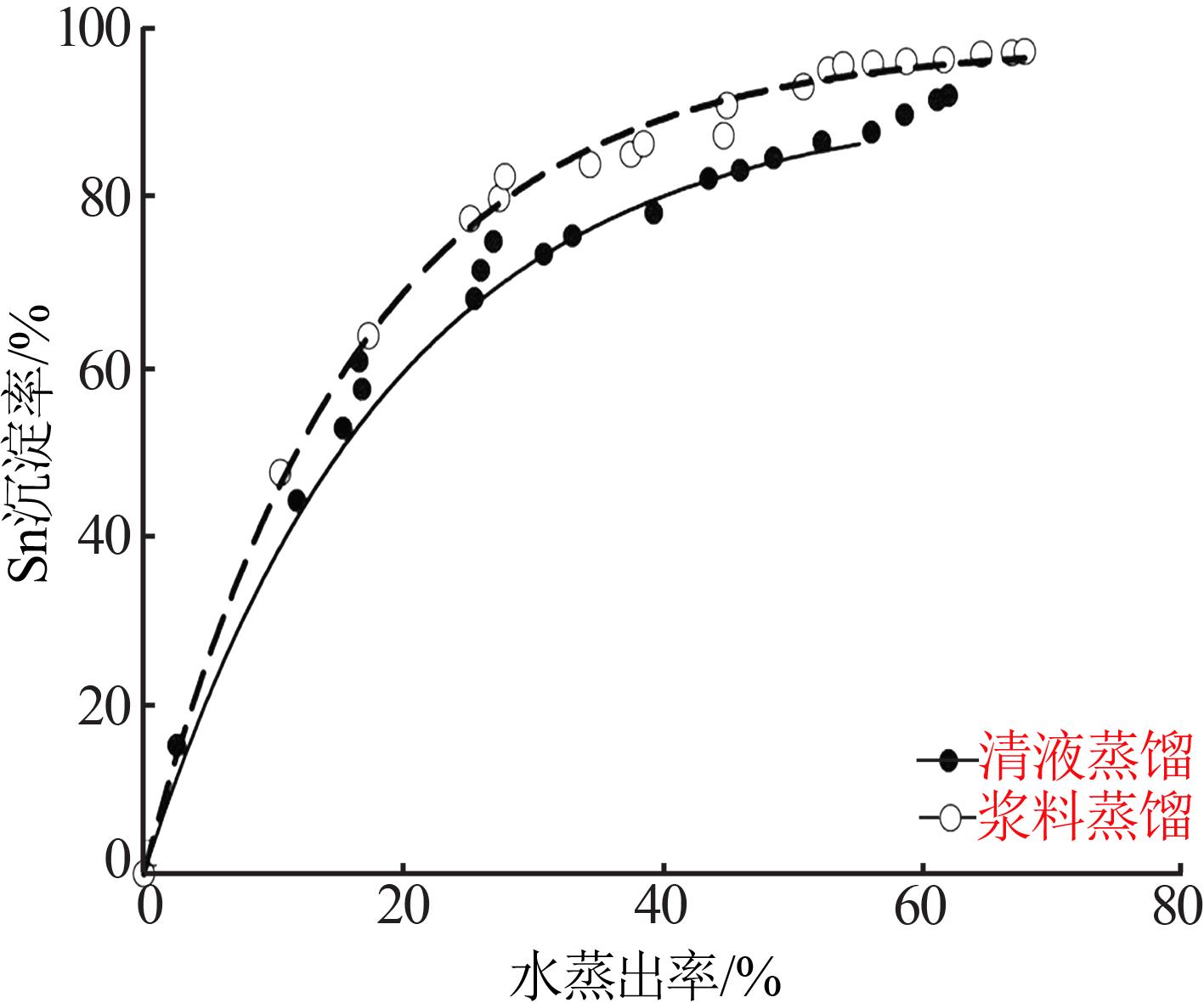

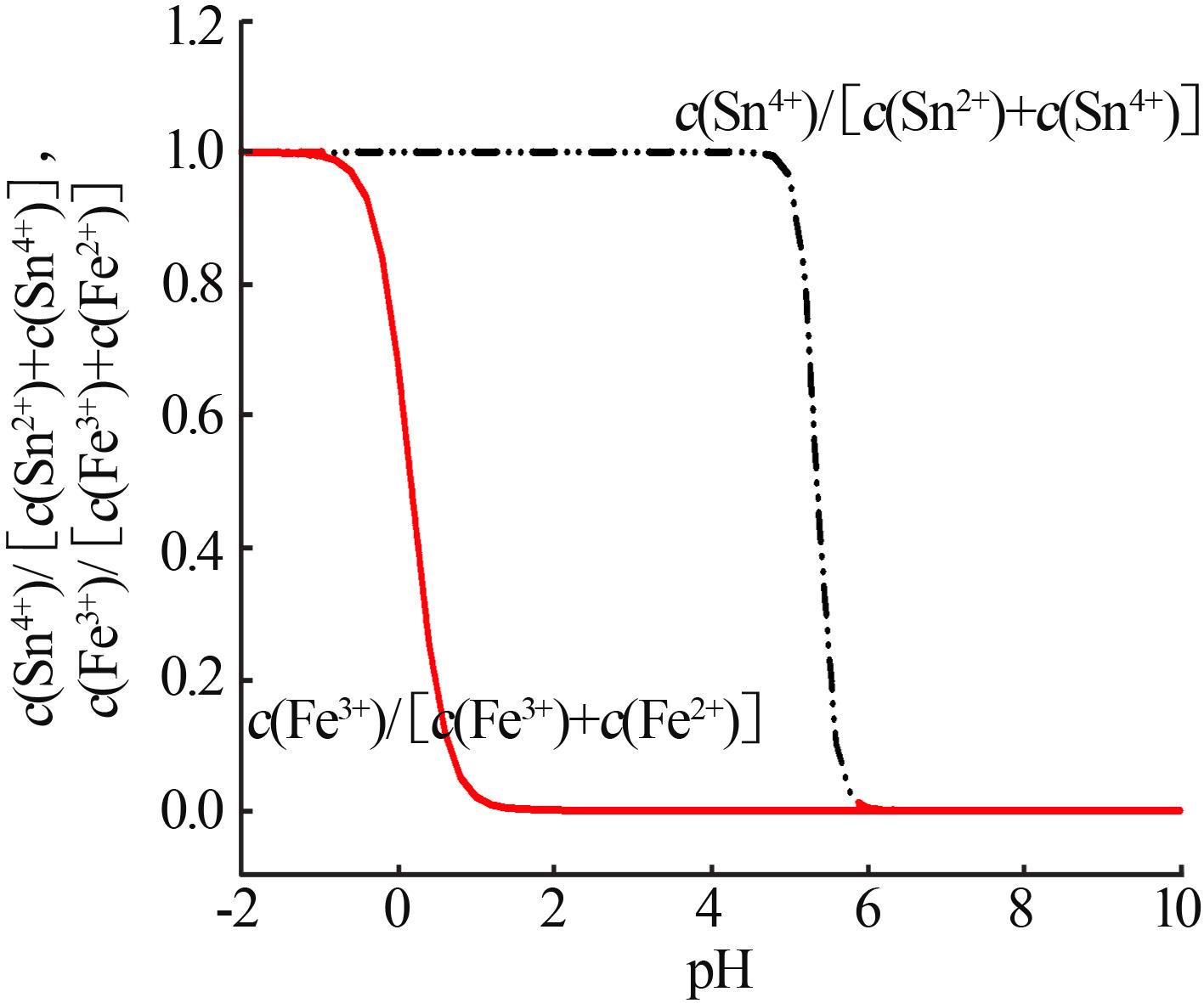

针对电路板硝酸型废退锡液再生和锡提取技术的改进，对硝酸型废退锡水的物理化学特征、氧化还原与沉淀反应规律、真空蒸馏特性进行了理论分析和实验研究。结果表明：硝酸溶液中三价铁离子的存在可以将锡离子氧化为四价；硝酸浓度的提高可促进β型偏锡酸沉淀的形成；蒸馏是硝酸的浓缩过程，当水的蒸出率达到67.75%时，硝酸质量分数提高到40.04%，锡的质量分数降到了0.04%。废退锡水中锡以β型偏锡酸形式析出，析出率达到97.36%。经过蒸馏强化所获得沉淀物具有更好的沉淀特性；蒸馏底液保留了退锡水的有效成分，可作为再生退锡水。

关键词: 废退锡水, β型偏锡酸, 退锡水再生, 沉淀反应, 蒸馏

Abstract:

Aiming at the improvements of regeneration technology and tin extraction mothed of nitric acid type tin stripping waste solution for PCB industries，the physical and chemical characteristics，the behaviors of redox and precipitation reactions，and vacuum distillation characteristics of waste tin stripping solution were theoretically analyzed and experimentally studied.The results showed that Fe³⁺ in nitric acid solution could oxidize tin ion to tetravalent.The increase of nitric acid concentration promoted the precipitation formation of β-type meta stannic acid.Vacuum distillation was the concentration process of nitric acid.When the evaporation rate of water reached 67.75%，the mass ratio of nitric acid increased to 40.04% and the mass ratio of tin decreased to 0.04%.Tin in the waste tin stripping water was precipitated in the form of β-metastannic acid，and the precipitation rate reached 97.36%.The precipitate β-metastannic acid obtained by distillation had better precipitation characteristics.The distillation bottom liquid retained the effective components of tin stripping liquid and could be used to mix tin stripping liquid.

Key words: tin stripped waste liquid, β-metastannic acid, tin stripping solution regeneration, precipitation reaction, vacuum distillation

中图分类号:

TQ134.32

金分丽,查正炯,王永成,周桓. 硝酸型废退锡水的分离特性与蒸馏强化偏锡酸回收[J]. 无机盐工业, 2022, 54(8): 101-106.

JIN Fenli,ZHA Zhengjiong,WANG Yongcheng,ZHOU Huan. Separation characteristics of nitric acid type tin stripping waste solution and distillation enhanced recovery of meta stannic acid[J]. Inorganic Chemicals Industry, 2022, 54(8): 101-106.

图/表 12

表1

表2

图1

表3

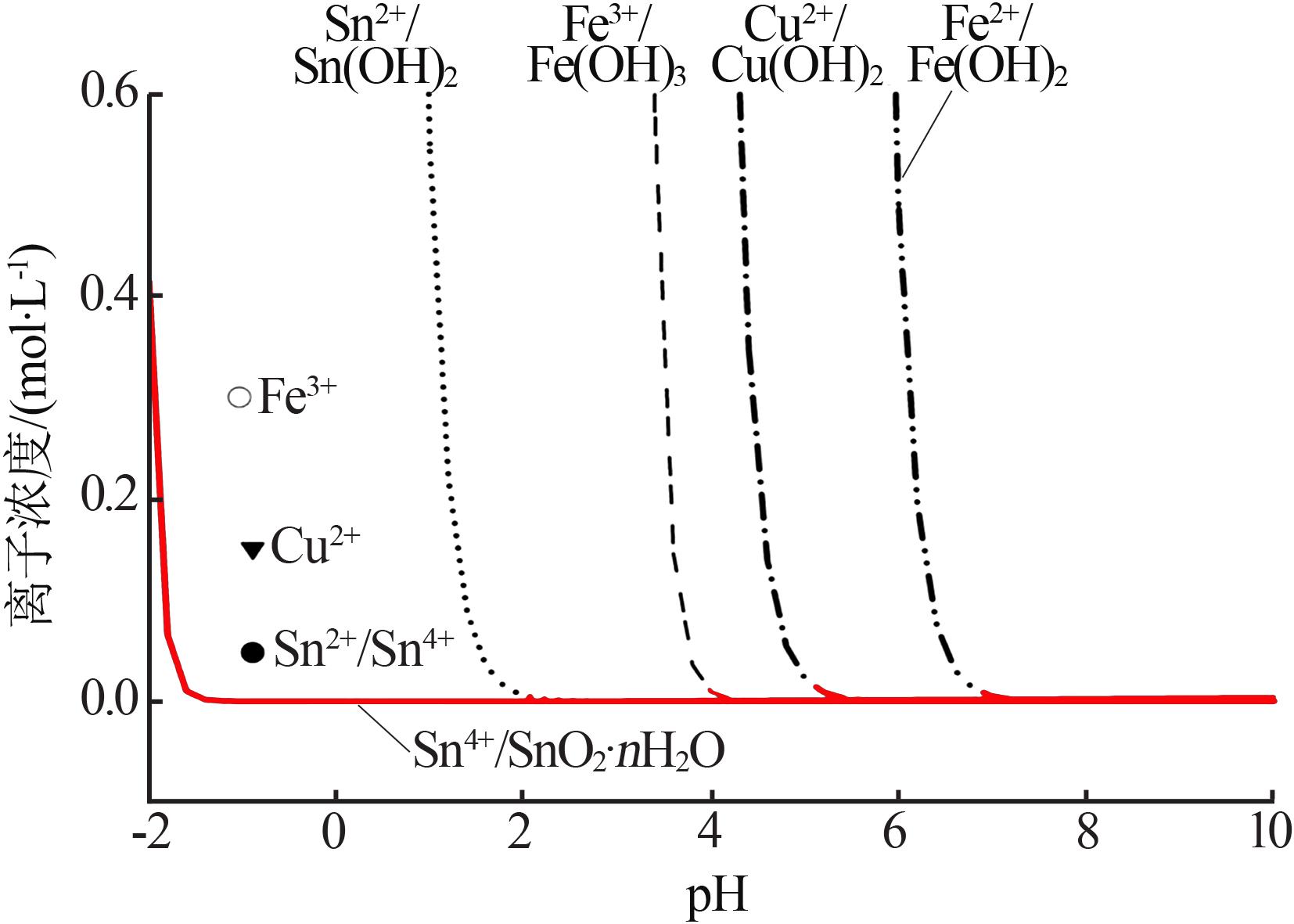

图2

表4

表5

表6

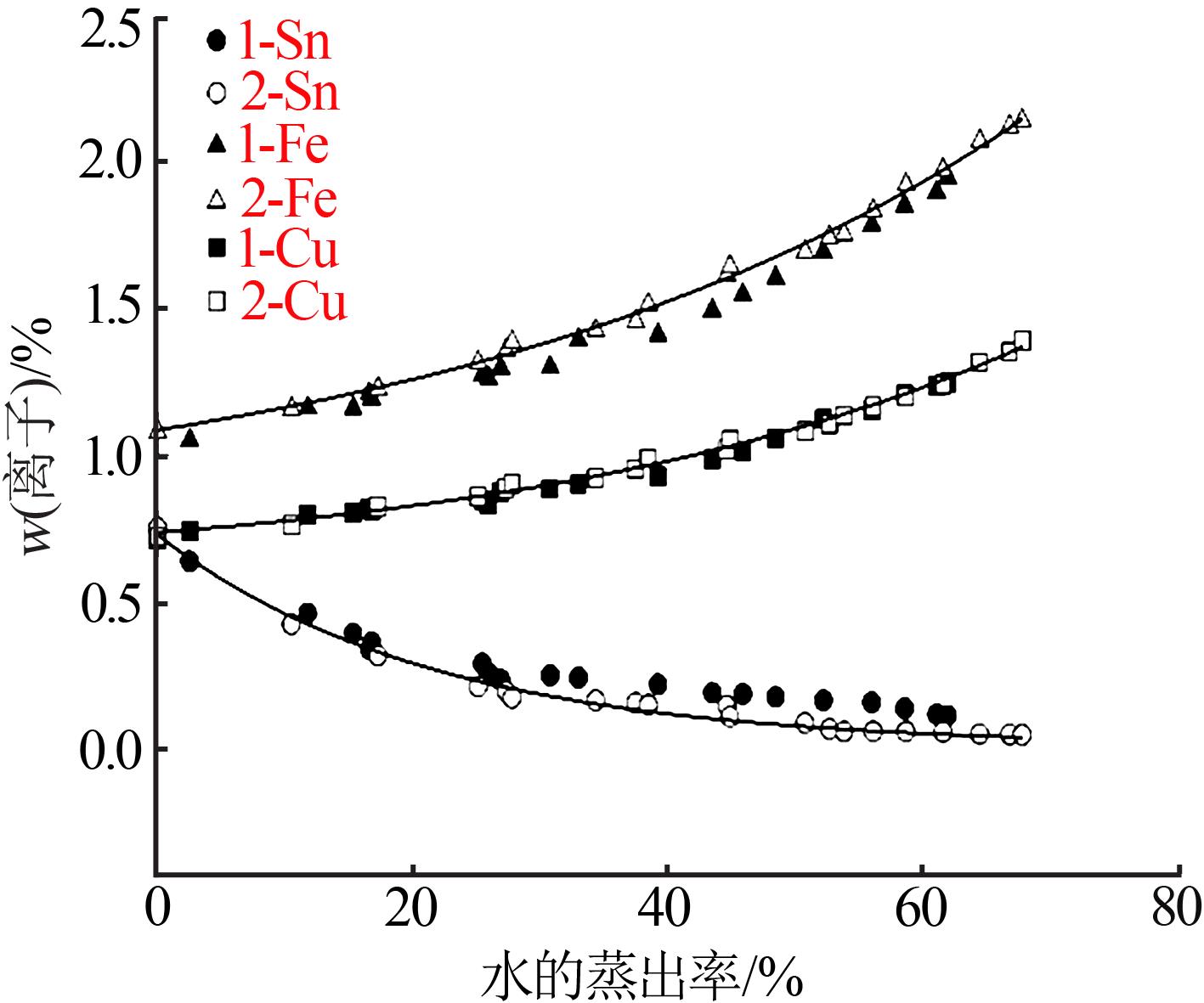

图3

图4

图5

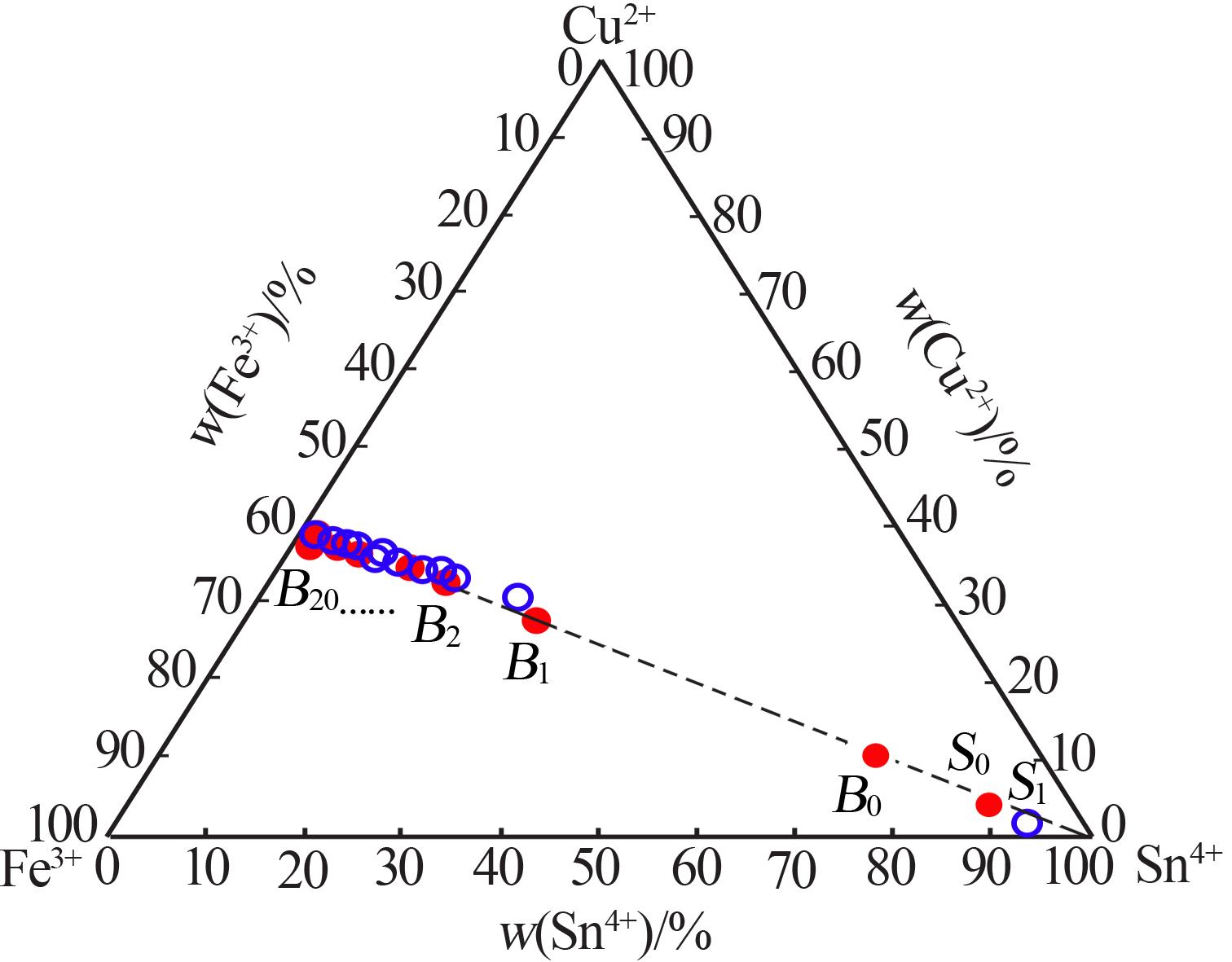

图6

参考文献 11

1	李耀威，戚锡堆.印刷线路板废退锡液处理技术研究进展［J］.工业安全与环保，2008，34（6）：15-17.
	LI Yaowei， QI Xidui.Research progress in treatment techniques of spent tin stripper from printed circuit board［J］.Industrial Safety and Environmental Protection，2008，34（6）：15-17.
2	KERR C.Sustainable technologies for the regeneration of acidic tin stripping solutions used in PCB fabrication［J］.Transactions of the IMF，2004，82（1/2）：B7-B12.
3	尹张强，杨颖颖，邱成伟，等.印制电路板制程中在线退锡液回收利用的实践［J］.印制电路信息，2020，28（5）：62-66.
	YIN Zhangqiang， YANG Yingying， QIU Chengwei，et al.A practical on the recovery and utilization of tin stripping solution in PCB manufacturing process［J］.Printed Circuit Information，2020，28（5）：62-66.
4	张利，刘兴勇.硝酸型PCB退锡废水回收利用工艺研究［J］.广州化工，2012，40（12）：81-82，117.
	ZHANG Li， LIU Xingyong.Study on the retrieve and utilizing of nitric spent tin stripper from printed circuit board［J］.Guangzhou Chemical Industry，2012，40（12）：81-82，117.
5	张惠敏，李德良，黎定标，等.废退锡液中硝酸和锡的综合回收［J］.膜科学与技术，2006，26（5）：86-89.
	ZHANG Huimin， LI Deliang， LI Dingbiao，et al.Studies of recovering tin and nitric acid from the spent solder stripper［J］.Membrane Science and Technology，2006，26（5）：86-89.
6	YANG Jianguang， LEI Jie， PENG Siyao，et al.A new membrane electro⁃deposition based process for tin recovery from waste printed
	circuit boards［J］.Journal of Hazardous Materials，2016，304：409-416.
7	SCOTT K， CHEN X， ATKINSON J W，et al.Electrochemical recycling of tin，lead and copper from stripping solution in the manufacture of circuit boards［J］.Resources，Conservation and Recycling，1997，20（1）：43-55.
8	ROY S， BUCKLE R.The recovery of copper and tin from waste tin stripping solution：Part Ⅱ：Kinetic analysis of synthetic and real process waste［J］.Separation and Purification Technology，2009，68（2）：185-192.
9	SILVA-MARTÍNEZ S， ROY S.Copper recovery from tin stripping solution：Galvanostatic deposition in a batch⁃recycle system［J］.Separation and Purification Technology，2013，118：6-12.
10	LI Bin， PAN Dean， JIANG Yuhui，et al.Recovery of copper and tin from stripping tin solution by electrodeposition［J］.Rare Metals，2014，33（3）：353-357.
11	TANG Chaobo， DENG Xinjie， CHEN Yongming，et al.Electrochemical dissolution and recovery of tin from printed circuit board in methane-sulfonic acid solution［J］.Hydrometallurgy，2021，205.Doi：10.1016/j.hydromet.2021.105726 . doi: 10.1016/j.hydromet.2021.105726

项目	pH	密度/（g·L^-1）	w（SnO₂）/%	w［Fe（NO₃）₃］/%	w［Cu（NO₃）₂］/%	w（HNO₃）/%	w（H₂O）/%
悬浊液	-0.49	1 368.2	9.763	3.920	1.600	21.318	63.399
澄清液	-0.49	1 190.0	0.948	3.583	1.386	23.617	70.467
湿固相	—	—	33.130	4.810	2.170	15.220	44.660

序号	氧化还原反应	ΔG^{（298 K）}/ （kJ·mol^-1）	反应判断
1	Sn+HNO₃+5H₂O=［Sn（H₂O）₆］²⁺+HNO₂	-186.79	自发
2	［Sn（H₂O）₆］²⁺→［Sn（H₂O）₆］⁴⁺	29.70	不自发
3	Sn²⁺+2HNO₃+2H⁺→Sn⁴⁺+2NO₂+2H₂O	114.67	不自发
4	Cu + HNO₃+H⁺=Cu⁺+ NO₂+H₂O	-27.10	自发
5	Cu⁺+HNO₃+H⁺→Cu²⁺+NO₂+H₂O	-61.57	自发
6	Sn²⁺+2 Cu^{2 +}→Sn⁴⁺+2 Cu⁺	-1.32	自发
7	Fe²⁺+NO₃^-+2H⁺→Fe³⁺+NO₂+H₂O	-1.879	自发
8	Sn²⁺+2Fe³⁺→Sn⁴⁺+2Fe²⁺	-118.70	自发
9	2Sn²⁺+O₂+4H⁺→2Sn⁴⁺+2H₂O	-175.73	自发
10	Sn²⁺+H₂O₂+2H⁺→Sn⁴⁺+2H₂O	-71.40	自发

序号	沉淀反应	ΔG^（298K）/ （kJ·mol^-1）	沉淀终点计算值*（pH）	沉淀终点测定值* 实测pH
11	Sn⁴⁺+2H₂O→SnO₂ +4H⁺	-47.84	>-1.60	—
12	Sn ²⁺+2OH^-→Sn（OH）₂	-149.91	>1.86	1.8
13	Fe³⁺ +3OH^-→Fe（OH）₃	-182.87	>3.98	3.5
14	Cu²⁺ +2OH^-→Cu（OH）₂	-112.20	>5.16	10.0
15	Fe²⁺ +2OH^-→Fe（OH）₂	-93.11	>6.83	—

m（废退锡水）/g	通氧气时间/h	m（H₂O₂）/ g	m（硝酸）/ g	pH	w（Sn⁴⁺）/ %
33.53	3	5	—	-0.66	0.717
33.03	—	—	1.43	-0.66	0.594
32.69	—	—	2.75	-0.71	0.523
32.80	—	—	5.50	-0.75	0.249
32.75	—	—	10.97	-0.85	0.137
32.68	—	—	16.44	-0.91	0.113

溶液质量/g	总蒸失率/%	水蒸出率/ %	pH	w（Sn⁴⁺）/ %	w（Fe³⁺）/ %	w（Cu²⁺）/ %	w（HNO₃）/ %	w（H₂O）/ %	w（馏出液的硝酸）/%	锡的析出率/%
1 005.71	0.00	0.00	-0.66	0.75	1.08	0.71	23.62	68.90	—	0.000
1 005.71	0.00	0.00	-0.55	0.64	1.05	0.74	25.33	67.75	—	0.00
1 030.83	2.02	2.52	-0.56	0.46	1.16	0.80	25.45	67.01	13.86	15.16
932.49	8.82	11.76	-0.57	0.39	1.16	0.81	27.97	64.50	8.21	44.15
933.23	11.43	15.32	-0.58	0.36	1.20	0.81	27.63	64.68	7.59	52.76
906.75	12.50	16.79	-0.59	0.33	1.21	0.82	26.67	65.56	7.43	57.38
894.68	12.40	16.57	-0.60	0.28	1.28	0.85	30.64	61.24	7.88	60.68
849.21	18.61	25.44	-0.61	0.25	1.27	0.83	31.94	60.05	5.82	68.08
856.45	18.99	25.92	-0.62	0.23	1.30	0.87	30.21	61.51	5.95	71.43
833.75	19.72	26.88	-0.63	0.24	1.30	0.88	33.10	58.58	6.08	74.85
832.22	22.38	30.77	-0.65	0.24	1.40	0.90	31.63	59.59	5.28	73.38
776.80	23.91	32.98	-0.68	0.21	1.41	0.93	36.02	55.05	4.96	75.51
766.73	28.26	39.22	-0.71	0.18	1.50	0.99	36.17	54.38	4.38	78.23
724.27	31.25	43.46	-0.74	0.18	1.55	1.02	36.45	53.78	4.18	82.28
698.91	32.92	45.86	-0.77	0.17	1.61	1.06	36.64	53.22	4.00	83.30
673.75	34.72	48.44	-0.80	0.16	1.70	1.13	37.00	52.27	3.87	84.75
638.25	37.32	52.16	-0.83	0.15	1.79	1.16	38.58	50.21	3.69	86.68
604.82	39.95	55.98	-0.86	0.13	1.86	1.21	39.11	49.24	3.45	87.82
583.64	41.75	58.54	-0.89	0.11	1.90	1.24	40.72	47.36	3.40	89.86
569.74	43.51	61.05	-0.94	0.11	1.96	1.25	40.63	47.21	3.32	91.62
