稀土钕掺杂氧化锌纳米材料的制备及对罗丹明B的降解研究

doi:10.11962/1006-4990.2019-0139

摘要/Abstract

摘要：

采用直接沉淀法对纳米氧化锌做稀土掺杂改性,制备了钕掺杂纳米氧化锌,并采用X射线衍射、扫描电子显微镜、固体荧光光谱等测试手段对产品做了分析与表征,考察掺杂对氧化锌的物相、晶体结构、荧光性质的影响,将其应用于废水中罗丹明B的光催化降解。结果表明：钕掺杂可大幅度提高纳米氧化锌在汞灯照射下的光催化性能。随着掺杂量增加,掺杂氧化锌纳米材料的光催化降解性能逐渐升高,掺加7%（物质的量分数）钕的纳米氧化锌对罗丹明B的去除率可达89.62%。

关键词: 氧化锌, 光催化, 掺杂, 罗丹明B, 稀土钕

Abstract:

The antimony-doped nano-zinc oxide was prepared after the nano-zinc oxide was doped with rare earth by direct precipitation method.The products were analyzed and characterized by X-ray diffraction,scanning electron microscopy and solid-state fluorescence spectroscopy.The effect of doping on the phase,crystal structure and fluorescence properties of zinc oxide was investigated,which was applied to the photocatalytic degradation of rhodamine B in wastewater.The results showed that Nd doping could greatly improve the photocatalytic performance of nano-ZnO under mercury lamp irradiation.With the increase of doping amount,the photocatalytic degradation performance of doped ZnO nanomaterials increased gradually.The removal rate of Rhodamine B by 7%（amount-of substance fraction） Nd-doped nano-ZnO was 89.62%.

Key words: ZnO, photocatalytic, doping, Rhodamine B, rare earth Nd

中图分类号:

TQ132.41

黄礼丽,赵深茂,邓跃全. 稀土钕掺杂氧化锌纳米材料的制备及对罗丹明B的降解研究[J]. 无机盐工业, 2019, 51(8): 88-92.

Huang Lili,Zhao Shenmao,Deng Yuequan. Preparation of rare earth Nd-doped ZnO nano-materials and its degradation of Rhodamine B[J]. Inorganic Chemicals Industry, 2019, 51(8): 88-92.

图/表 5

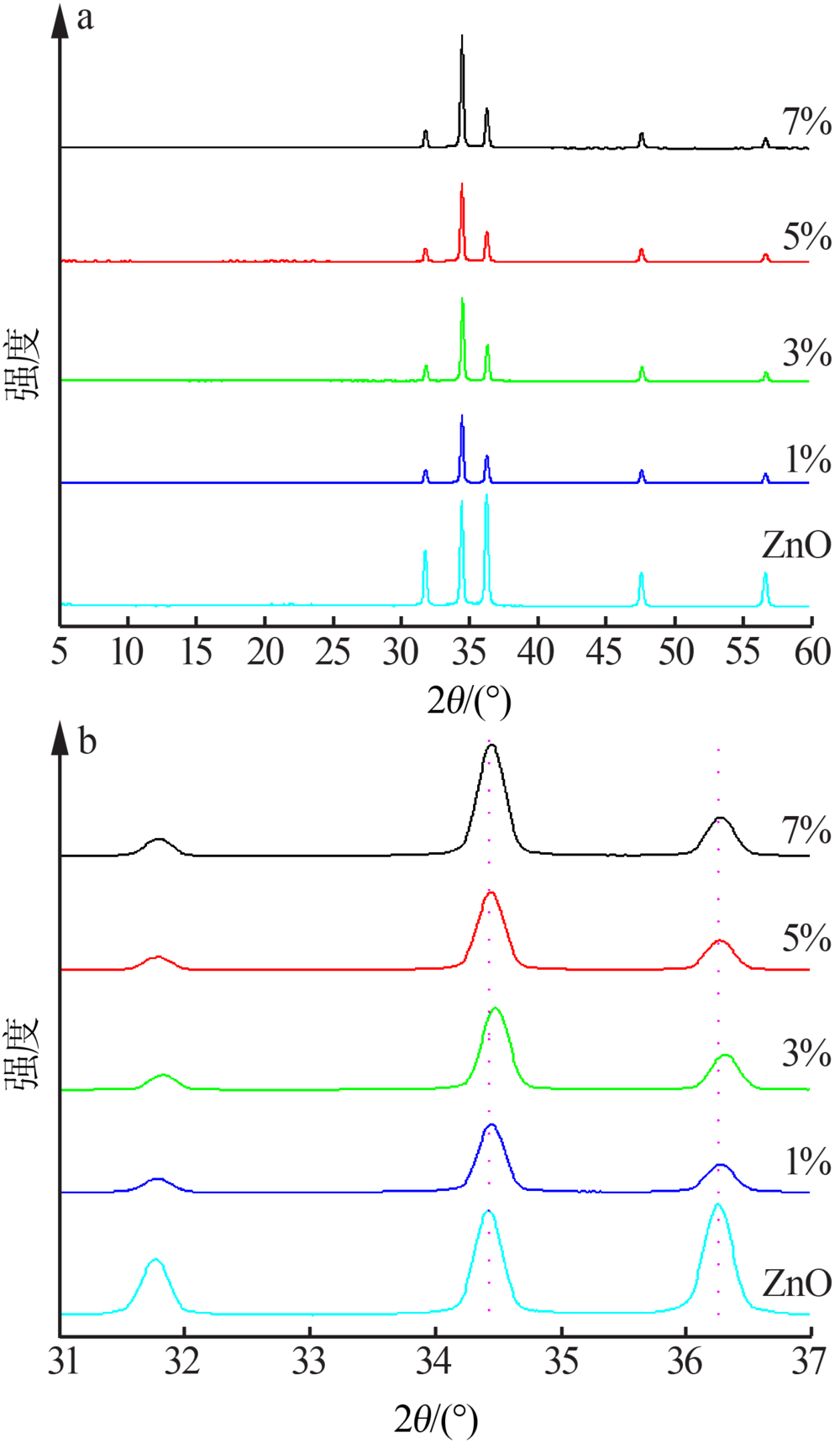

图1

表1

图2

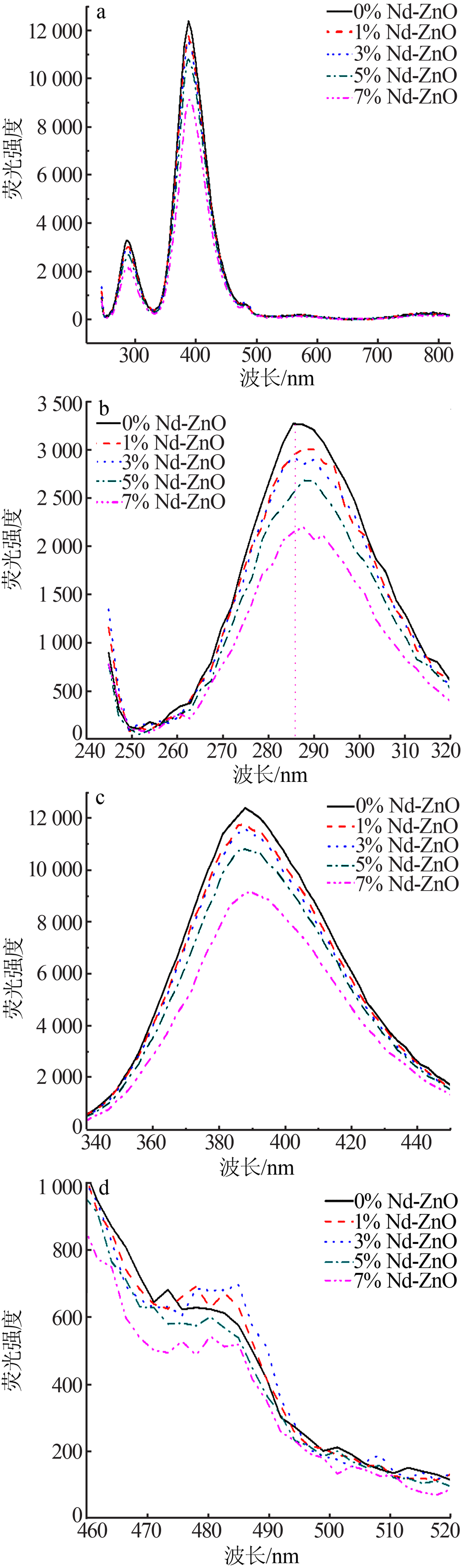

图3

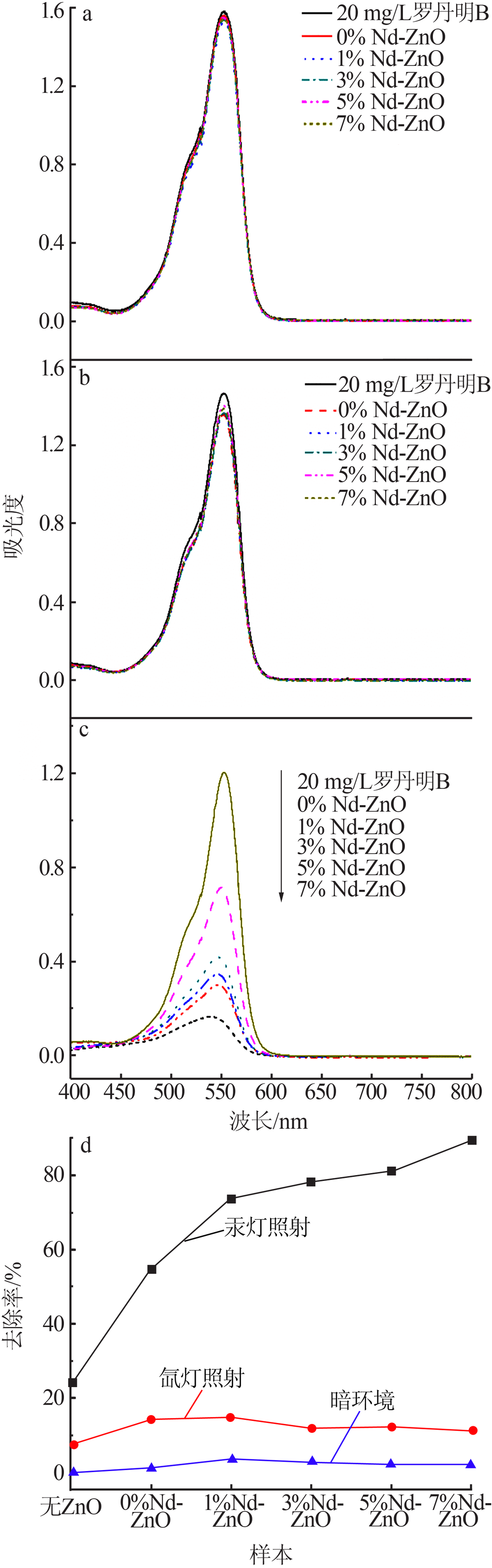

图4

参考文献 18

[1]	陈梅兰 . 罗丹明B的危害及其在食品中快速检测方法的建立[D]. 福州:福州大学, 2014.
[2]	González-Muñoz M J, Rodríguez M A, Luque S , et al. Recovery of heavy metals from metal industry waste waters by chemical precipitation and nanofiltration[J]. Desalination, 2006,200(1/2/3):742-744.
[3]	Zularisam A W, Ismail A F, Salim R . Behaviours of natural organic matter in membrane filtration for surface water treatment:A review[J]. Desalination, 2006,194(1):211-231.
[4]	Martínez-Huitle C A, Brillas E . Decontamination of wastewaters containing synthetic organic dyes by electrochemical methods:A general review[J]. Applied Catalysis B Environmental, 2009,87(3/4):105-145.
[5]	Guibal E, Roussy J . Coagulation and flocculation of dye-containing solutions using a biopolymer(Chitosan)[J]. Reactive & Functional Polymers, 2007,67(1):33-42.
[6]	Ali I, Gupta V K . Advances in water treatment by adsorption technology[J]. Nature Protocols, 2006,1(6):2661-2667.
[7]	高文秋, 赵斯琴, 吴哈申 , 等. 微波法改性煤系高岭土的制备及其性能[J]. 无机盐工业, 2016,48(12):72-74.
[8]	王艳, 斯钦德力根, 吴鹏超 , 等. 金-钯/二氧化锆催化剂合成及其光催化性能研究[J]. 无机盐工业, 2017,49(12):72-75.
[9]	Pera-Titus M, GarcíA-Molina V, Baños M A , et al. Degradation of chlorophenols by means of advanced oxidation processes:A general review[J]. Applied Catalysis B Environmental, 2004,47(4):219-256.
[10]	Zangeneh H, Zinatizadeh A A L, Habibi M , et al. Photocatalytic oxidation of organic dyes and pollutants in wastewater using different modified titanium dioxides:A comparative review[J]. Journal of Industrial & Engineering Chemistry, 2015,26:1-36.
[11]	贡昀, 董延茂, 朱广爱 , 等. 还原石墨烯/硫化镉纳米棒复合材料制备及其光催化性能[J]. 无机盐工业, 2018,50(9):76-78.
[12]	余长林, 杨凯, 余济美 , 等. 稀土Ce掺杂对ZnO结构和光催化性能的影响[J]. 物理化学学报, 2011,27(2):505-512.
[13]	季璐璐, 许雪棠, 黄经发 , 等. BiOBr微纳米材料的制备及其光催化降解含酚废水的研究[J]. 无机盐工业, 2018,50(8):78-81.
[14]	雷爱华 . 氧化锌纳米材料的可控合成、表征及光催化性能研究[D]. 长沙:湖南大学, 2012.
[15]	Zhang X W, Zhang X L, Wang X , et al. Enhancing the photocatalytic activity and photostability of zinc oxide nanorod arrays via graphitic carbon mediation[J]. Chinese Journal of Catalysis, 2018,39(5):973-981.
[16]	Zhang C L, Shao M F, Ning F Y , et al. Au nanoparticles sensitized ZnO nanorod@nanoplatelet core-shell arrays for enhanced photoelectrochemical water splitting[J]. Nano Energy, 2015,12:231-239.
[17]	Liu J P, Li Y Y, Ding R M , et al. Carbon/ZnO nanorod array electrode with significantly improved lithium storage capability[J]. Journal of Physical Chemistry C, 2009,113(13):5336-5339.
[18]	石梦姣 . ZnO微/纳结构的制备及其荧光、光催化性能研究[D]. 郑州:郑州大学, 2014.

样品	a/nm	c/nm	V/nm³
ZnO	0.325 070	0.520 874	0.047 67
1%掺杂ZnO	0.324 993	0.520 498	0.047 61
3%掺杂ZnO	0.324 695	0.520 041	0.047 48
5%掺杂ZnO	0.324 994	0.520 605	0.047 62
7%掺杂ZnO	0.324 871	0.520 267	0.047 55

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
