白酒酒糟与污水污泥共气化制氢反应特性及协同性分析

doi:10.19964/j.issn.1006-4990.2022-0255

摘要/Abstract

摘要：

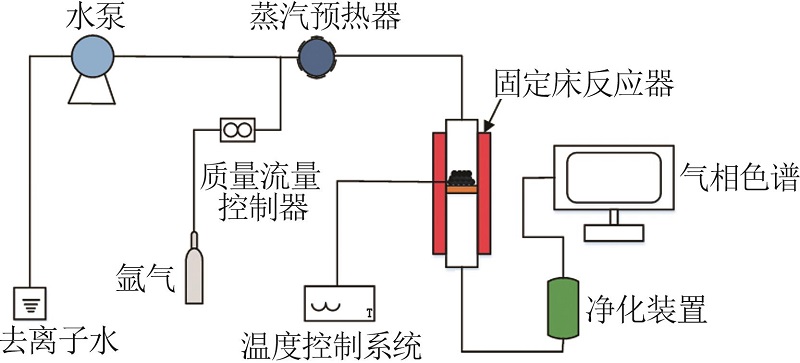

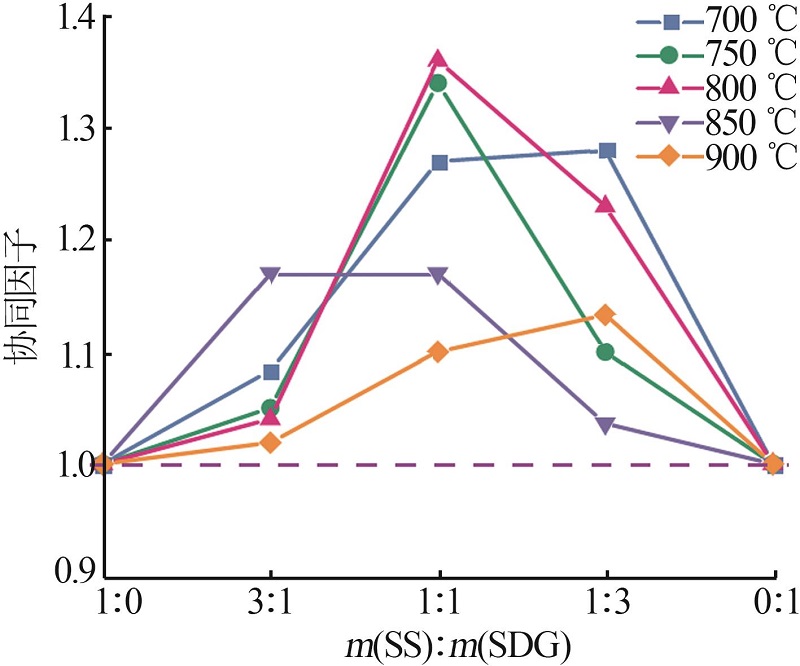

利用固定床为反应器、水蒸气为气化剂进行了污水污泥（SS）和白酒酒糟（SDG）的气化实验，通过分析二者的掺混比和反应温度对二者气化特性的影响，推导了二者共气化的协同作用及协同机理。结果表明，污水污泥比白酒酒糟气化反应活性更强，白酒酒糟比污水污泥合成气选择性更高，二者在气化中存在互补作用。污水污泥与白酒酒糟共气化时，随着共混物中白酒酒糟比例的提高，氢气含量逐渐提高、一氧化碳含量逐渐降低；提高反应温度和增大污水污泥比例，可以提升气化反应的活性。当反应温度为800 ℃、污水污泥与白酒酒糟的质量比为1∶1时，污水污泥与白酒酒糟共气化具有最大的协同因子（1.36）。污水污泥和白酒酒糟中的钾和钙对气化反应产生了协同催化效果，催化机理为钾和钙的氧化还原循环。

关键词: 污水污泥, 白酒酒糟, 共气化, 富氢合成气, 协同效应

Abstract:

Experiments on the gasification of sewage sludge（SS） and spirit-based distillers′ grains（SDG） were conducted using a fixed bed as the reactor and water vapor as the gasification agent.The effects of blending ratio and reaction temperature on the gasification characteristics of SS and SDG were investigated，and the synergistic effects and synergistic mechanisms of SS and SDG co-gasification were analyzed.The results showed that SS had stronger gasification reaction activity than SDG，SDG had higher selectivity than SS syngas，and there were complementary effects in gasification.When SS and SDG were co-gasified，the H₂ content was gradually increased and CO content was gradually decreased as the proportion of SDG increasing in the blends.Increasing the temperature and increasing the proportion of SS could enhance the gasification reaction activity.When the temperature was 800 ℃ and m（SS）∶m（SDG）=1∶1，SS and SDG co-gasification had the maximum synergistic factor of 1.36.K and Ca in SS and SDG produced synergistic catalytic effect on the gasification reaction，and the catalytic mechanism was the K and Ca redox cycle.

Key words: sewage sludge, spirit-based distillers′ grains, co-gasification, hydrogen-rich syngas, synergy

中图分类号:

王君良, 赵爱明, 敖先权, 李松鸿, 曹阳. 白酒酒糟与污水污泥共气化制氢反应特性及协同性分析[J]. 无机盐工业, 2023, 55(3): 118-125.

WANG Junliang, ZHAO Aiming, AO Xianquan, LI Songhong, CAO Yang. Characteristics and synergistic analysis of co-gasification of spirit-based distillers′grains with sewage sludge for hydrogen production[J]. Inorganic Chemicals Industry, 2023, 55(3): 118-125.

图/表 10

表 1

表 2

图1

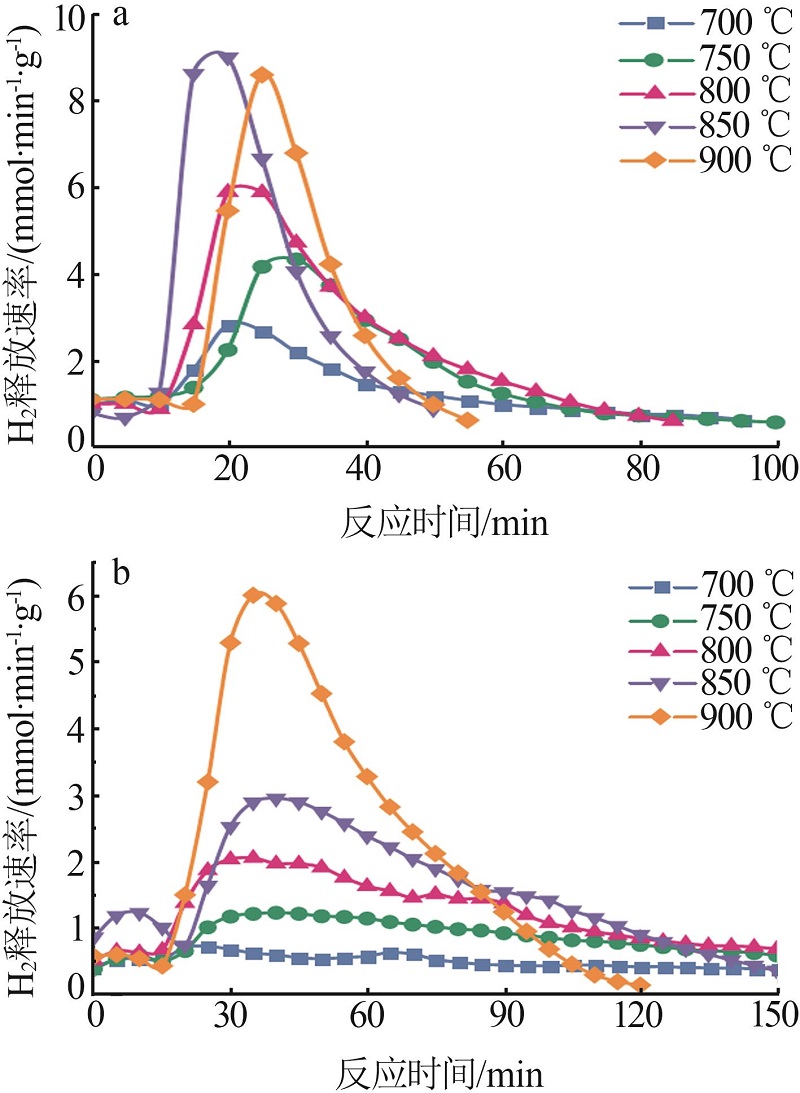

图2

表 3

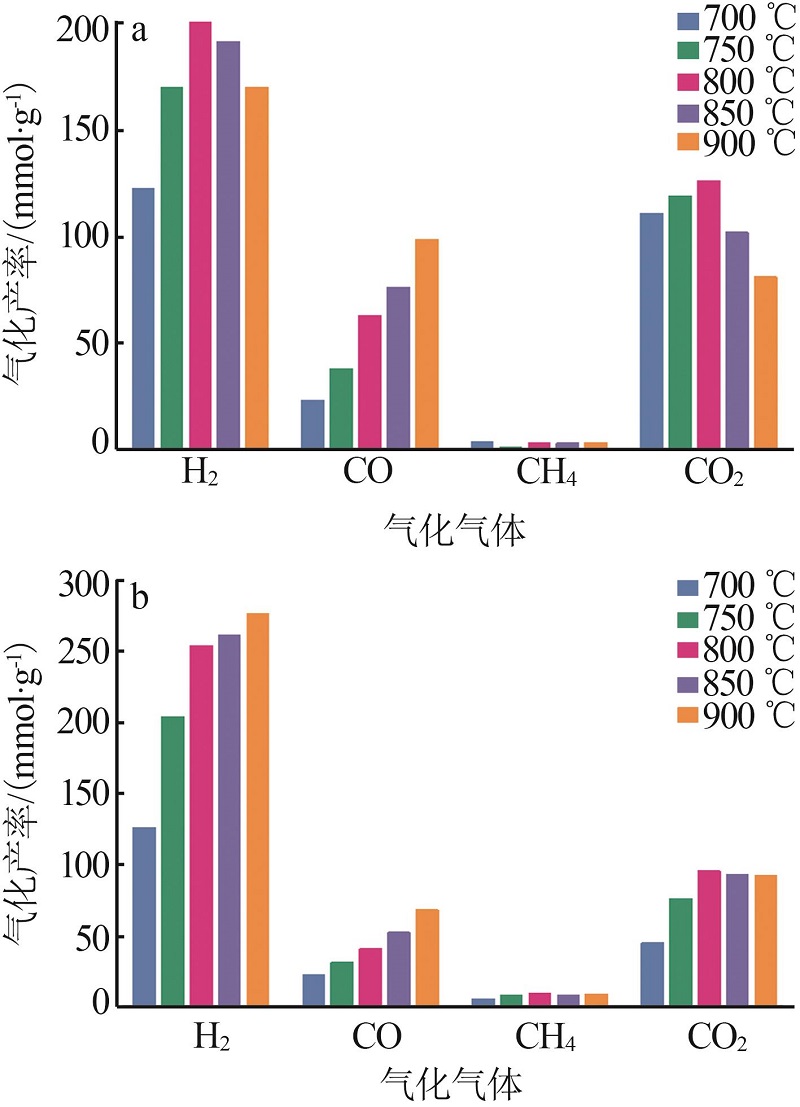

图3

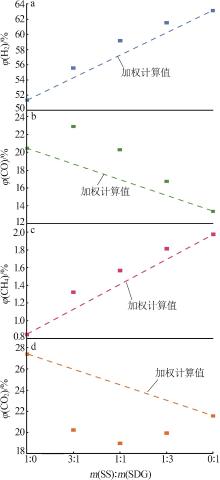

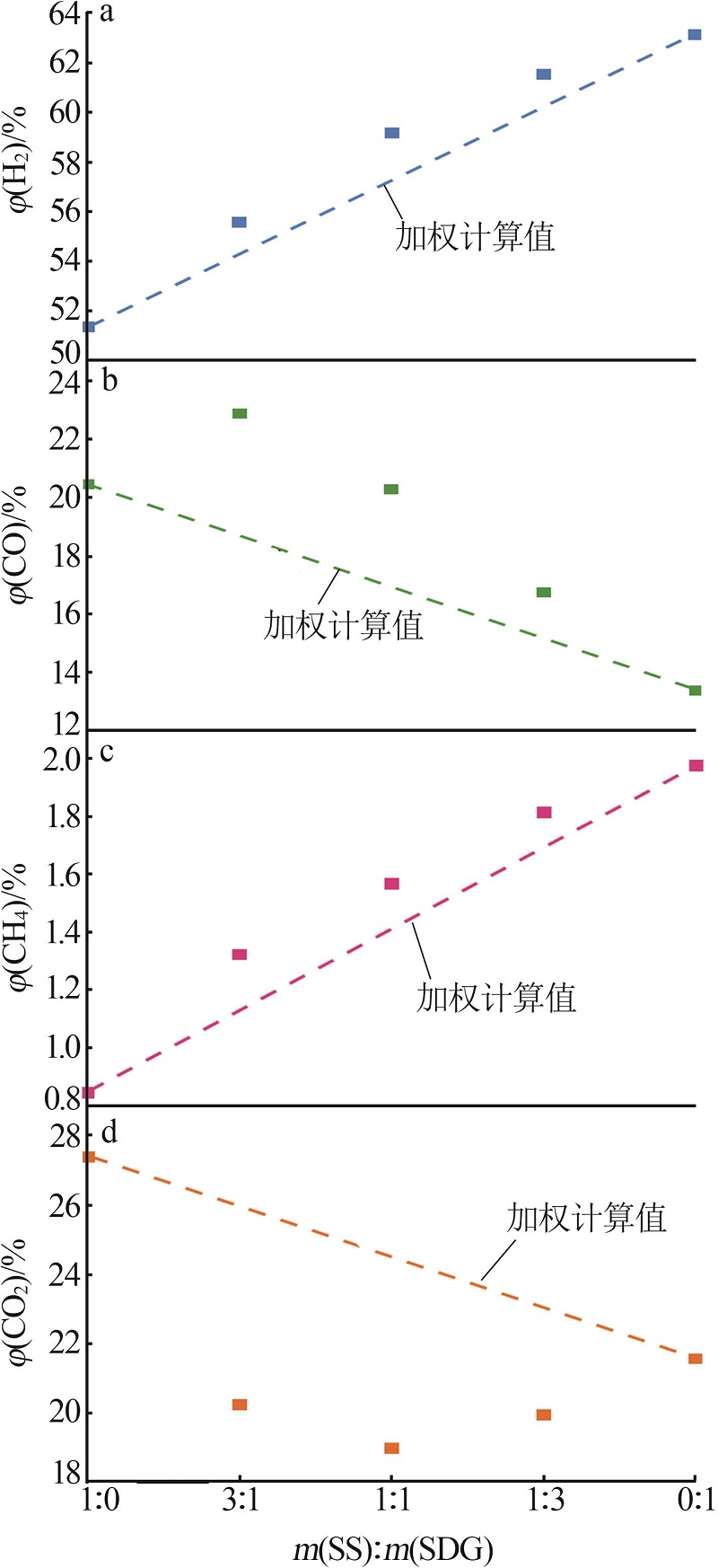

图4

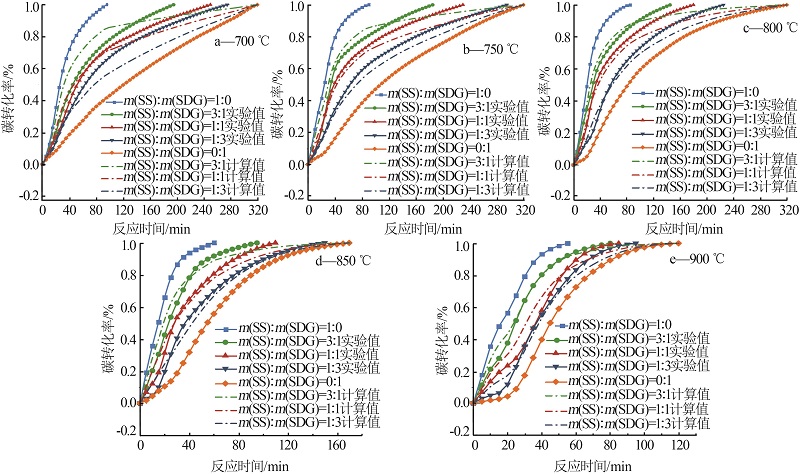

图5

表4

图6

参考文献 34

1	SINIGAGLIA T， LEWISKI F， MARTINS M E S，et al.Production，storage，fuel stations of hydrogen and its utilization in automotive applications-a review[J].International Journal of Hydrogen Energy，2017，42（39）:24597-24611.
2	REN Jianwei.Current research trends and perspectives on materials-based hydrogen storage solutions:A critical review[J].International Journal of Hydrogen Energy，2017，42（1）:289-311.
3	TERRELL E， THEEGALA C S.Thermodynamic simulation of syngas production through combined biomass gasification and methane reformation[J].Sustainable Energy & Fuels，2019，3（6）:1562-1572.
4	ABE J O， POPOOLA A P I， AJENIFUJA E，et al.Hydrogen energy，economy and storage:Review and recommendation[J].International Journal of Hydrogen Energy，2019，44（29）:15072-15086.
5	ACAR C.Review and evaluation of hydrogen production options for better environment[J].Journal of Cleaner Production，2019，218:835-849.
6	GOLDEMBERG J.Renewable energy:Traditional biomass vs.modern biomass[J].Energy Policy，2004，32（6）:711-714.
7	KAN Xiang.Box-Behnken design based CO₂ co-gasification of horticultural waste and sewage sludge with addition of ash from waste as catalyst[J].Applied Energy，2019，242:1549-1561.
8	HEIDENREICH S.New concepts in biomass gasification[J].Progress in Energy and Combustion Science，2015，46:72-95.
9	SEYITOGLU S S， DINCER I A K.Energy and exergy analyses of hydrogen production by coal gasification[J].International Journal of Hydrogen Energy，2017，42（4）:2592-2600.
10	LIU Jingyong.（Co-） combustion of additives，water hyacinth and sewage sludge:Thermogravimetric，kinetic，gas and thermodynamic modeling analyses[J].Waste Management，2018，81:211-219.
11	ZHOU Xiaobing， ZHENG Pu.Spirit-based distillers' grain as a promising raw material for succinic acid production[J].Biotechnology Letters，2013，35（5）:679-684.
12	AYOL A， TEZER YURDAKOS O， GURGEN A.Investigation of municipal sludge gasification potential:Gasification characteristics of dried sludge in a pilot-scale downdraft fixed bed gasifier[J].International Journal of Hydrogen Energy，2019，44（32）:17397-17410.
13	NIPATTUMMAKUL N， AHMED I， KERDSUWAN S，et al.High temperature steam gasification of wastewater sludge[J].Applied Energy，2010，87（12）:3729-3734.
14	吕记巍，敖先权，陈前林，等.煤气化可弃型催化剂[J].化学进展，2018，30（9）:1455-1462.
	LV Jiwei， AO Xianquan， CHEN Qianlin，et al.Disposable catalysts for coal gasification[J].Progress in Chemistry，2018，30（9）:1455-1462.
15	LV Jiwei.Steam co-gasification of different ratios of spirit-based distillers′ grains and anthracite coal to produce hydrogen-rich gas[J].Bioresource Technology，2019，283:59-66.
16	ZHAO Aiming.Spirit-based distillers′ grains and red mud synergistically catalyse the steam gasification of anthracite to produce hydrogen-rich synthesis gas[J].International Journal of Hydrogen Energy，2021，46（1）:314-323.
17	ALNOUSS A， MCKAY G， AL-ANSARI T.Production of syngas via gasification using optimum blends of biomass[J].Journal of Cleaner Production，2020，242.Doi:10.1016/j.jclepro.2019.118499.
18	ZHAI Ming.Gasification characteristics of sawdust char at a hightemperature steam atmosphere[J].Energy，2017，128:509-518.
19	CHEN Shiyi， SUN Zhao， ZHANG Qi，et al.Steam gasification of sewage sludge with CaO as CO₂ sorbent for hydrogen-rich syngas production[J].Biomass and Bioenergy，2017，107:52-62.
20	GAI Chao， GUO Yanchuan， LIU Tingting，et al.Hydrogen-rich gas production by steam gasification of hydrochar derived from sewage sludge[J].International Journal of Hydrogen Energy，2016，41（5）:3363-3372.
21	GIL M V.Biomass devolatilization at high temperature under N₂ and CO₂:Char morphology and reactivity[J].Energy，2015，91:655-662.
22	WEI Juntao， GUO Qinghua， GONG Yan，et al.Synergistic effect on co-gasification reactivity of biomass-petroleum coke blended char[J].Bioresource Technology，2017，234:33-39.
23	刘旭辉.煤催化加氢气化过程中焦结构演变特性及反应性研究[D].武汉:华中科技大学，2016.
	LIU Xuhui.Experimental study on the evolution of char structure and reactivity during coal catalytic hydrogasfication under high pressure[D].Wuhan:Huazhong University of Science and Technology，2016.
24	RADOVIC L R， JR P L W， JENKINS R G.Importance of catalyst dispersion in the gasification of lignite chars[J].Journal of Catalysis，1983，82（2）:382-394.
25	BROWN R C， LIUA Q， NORTON G.Catalytic effects observed during the co-gasification of coal and switchgrass[J].Biomass and Bioenergy，2000，18（6）:499-506.
26	SAKAWA M， SAKURAI Y， HARA Y.Influence of coal characteristics on CO₂ gasification[J].Fuel，1982，61（8）:717-720.
27	单良.煤焦化学链气化系统的优化及载氧体研究[D].大连:大连理工大学，2021.
	SHAN Liang.Optimization of coal char chemical looping gasification system and study of oxygen carrier[D].Dalian:Dalian University of Technology，2021.
28	DING Liang， ZHANG Yongqi， WANG Zhiqing，et al.Interaction and its induced inhibiting or synergistic effects during co-gasification of coal char and biomass char[J].Bioresource Technology，2014，173:11-20.
29	XU Shenqi， ZHOU Zhijie， XIONG Jie，et al.Effects of alkaline metal on coal gasification at pyrolysis and gasification phases[J].Fuel，2011，90（5）:1723-1730.
30	MLONKA-MĘDRALA A， MAGDZIARZ A， GAJEK M，et al.Alkali metals association in biomass and their impact on ash melting behaviour[J].Fuel，2020，261.Doi:10.1016/j.fuel.2019.116421.
31	BAN Yanpeng， LIU Quansheng， ZHOU Huacong，et al.Direct production of hydrogen-enriched syngas by calcium-catalyzed steam gasification of Shengli lignite/chars:Structural evolution[J].International Journal of Hydrogen Energy，2020，45（15）:8357-8368.
32	SABER J M.A mechanism for sodium oxide catalyzed CO₂ gasification of carbon[J].Journal of Catalysis，1988，109（2）:329-346.
33	姜明泉.煤焦碱金属催化水蒸汽气化—产氢行为和催化剂性能的研究[D].上海:华东理工大学，2013.
	JIANG Mingquan.The study on alkali-catalyzed gasification of coal char:Behaviors of hydrogen production and performances of the catalysts[D].Shanghai:East China University of Science and Technology，2013.
34	FORMELLA K， LEONHARDT P， SULIMMA A，et al.Interaction of mineral matter in coal with potassium during gasificati- on[J].Fuel，1986，65（10）:1470-1472.

反应温度/℃	SS合成气选择性/%	SDG合成气选择性/%
700	55.9	74.7
750	63.5	73.8
800	67.0	73.8
850	71.7	75.7
900	76.0	77.4

m（SS）∶ m（SDG）	反应性指数
m（SS）∶ m（SDG）	700 ℃	750 ℃	800 ℃	850 ℃	900 ℃
1∶0	0.013 8	0.016 6	0.017 9	0.026 2	0.023 7
3∶1	0.006 3	0.006 9	0.009 2	0.016 2	0.017 7
1∶1	0.004 9	0.005 6	0.007 4	0.011 7	0.014 6
1∶3	0.004 4	0.004 5	0.005 6	0.008 9	0.013 3
0∶1	0.003 2	0.003 4	0.004 0	0.007 8	0.011 1
