化学浴沉积法制备氢氧化镍及其催化过一硫酸盐降解亚甲基蓝

doi:10.19964/j.issn.1006-4990.2020-0635

摘要/Abstract

摘要：

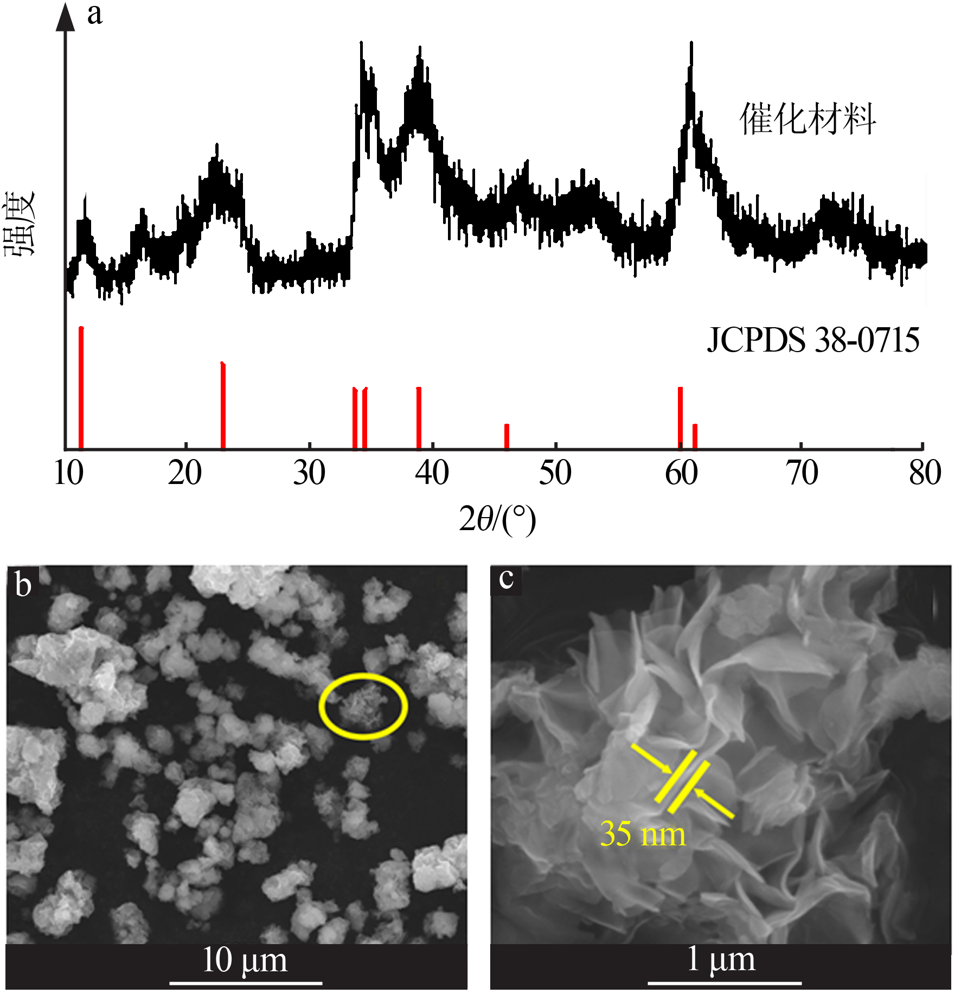

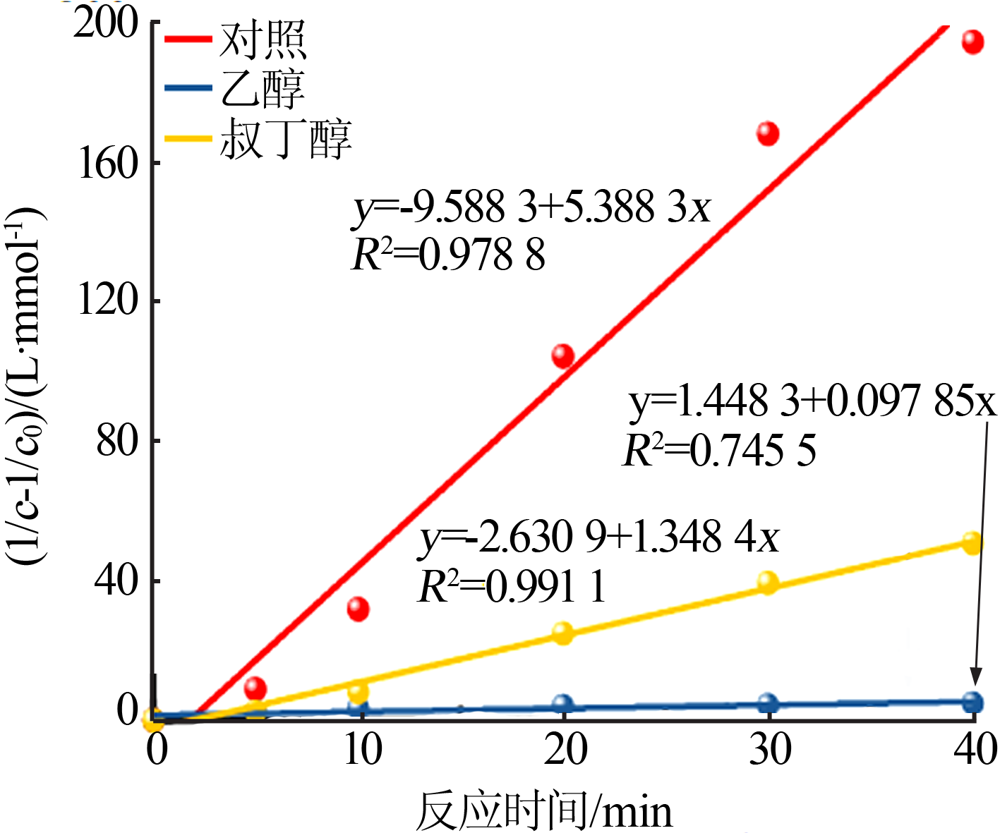

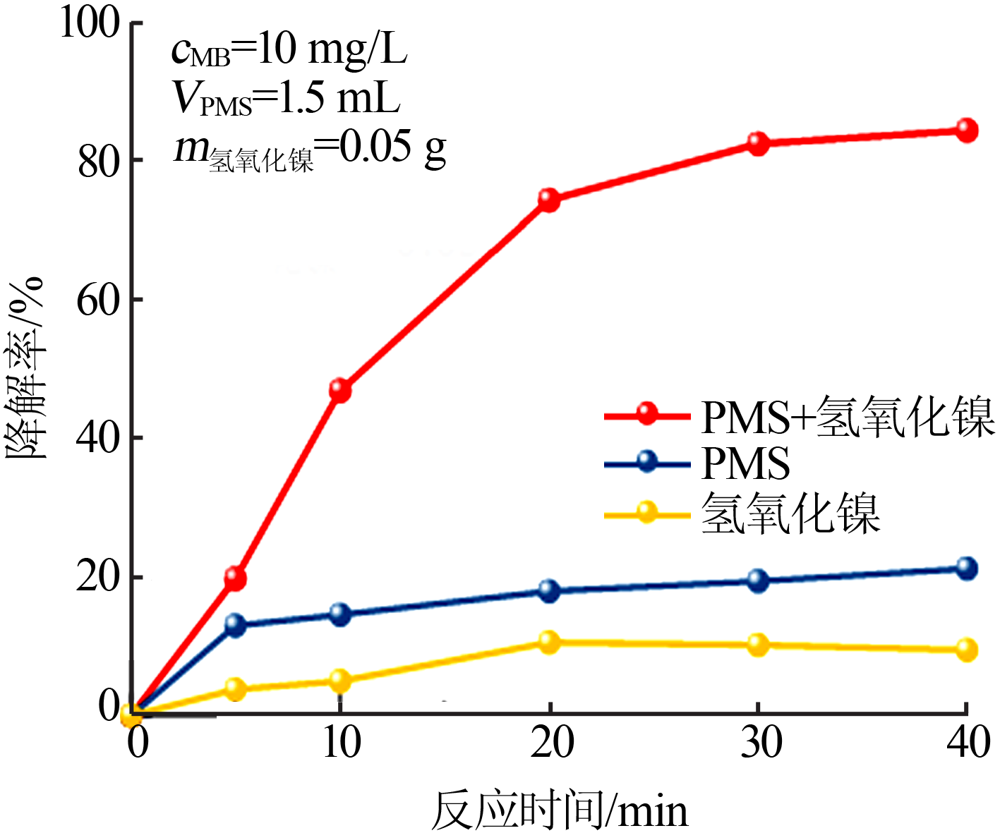

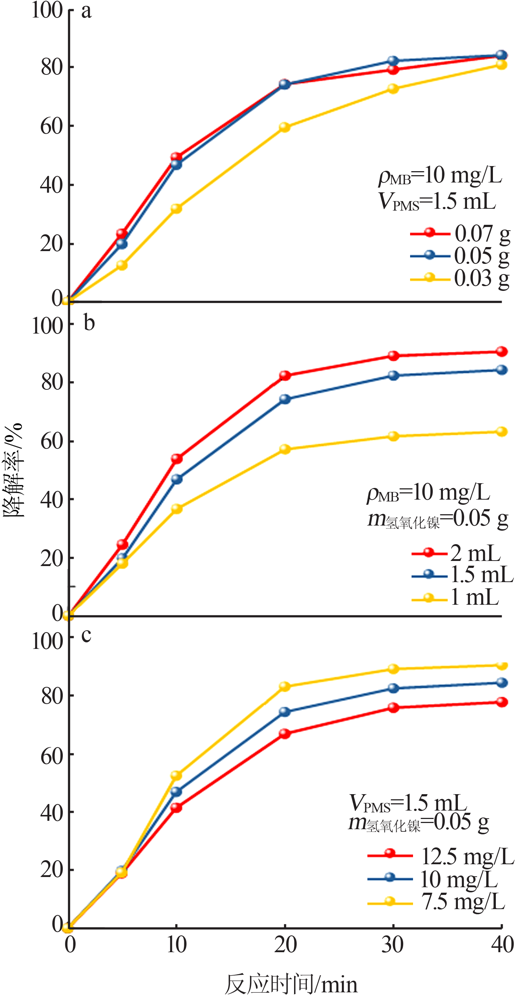

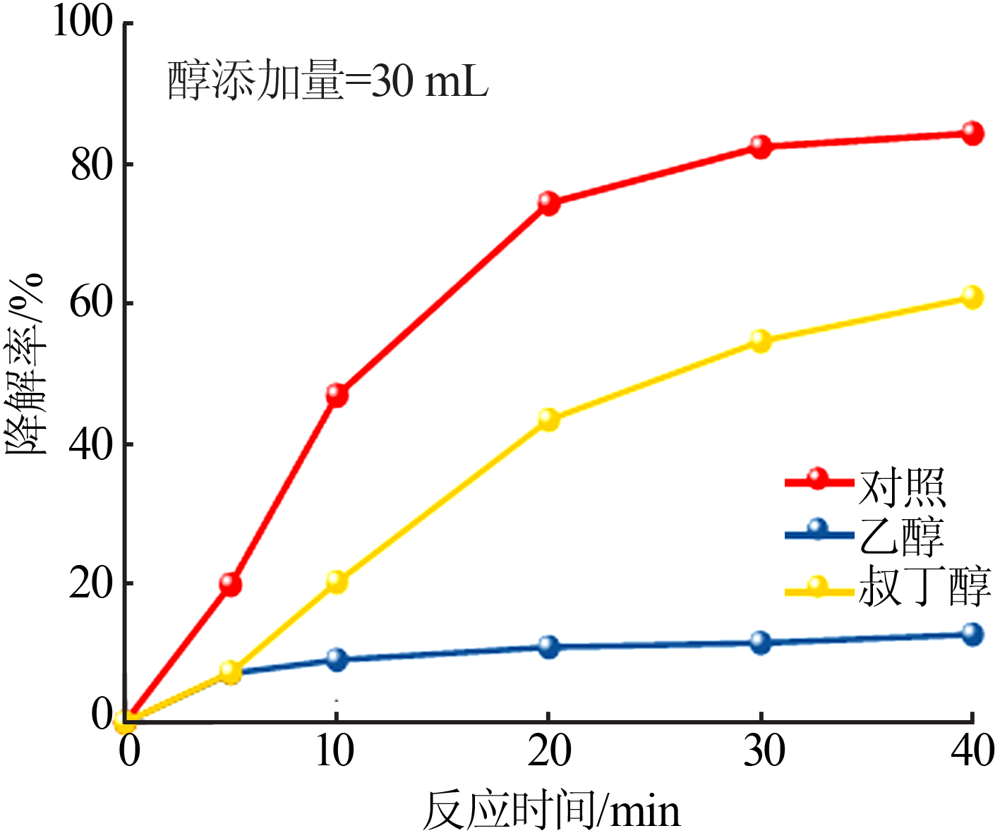

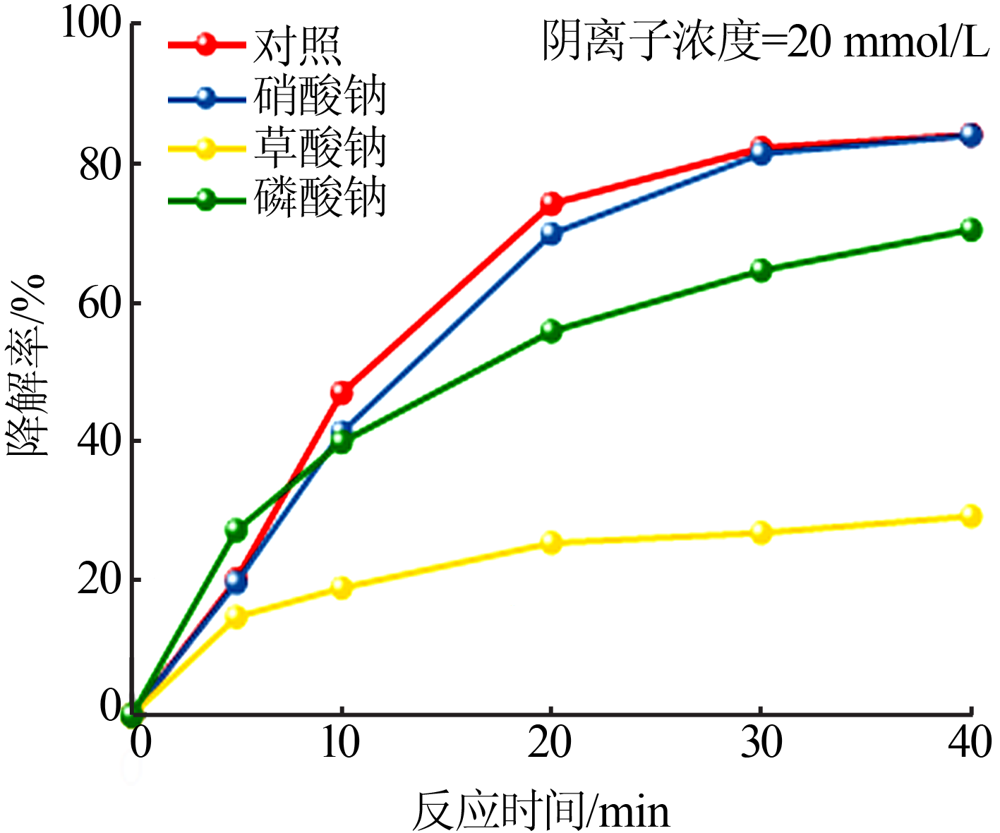

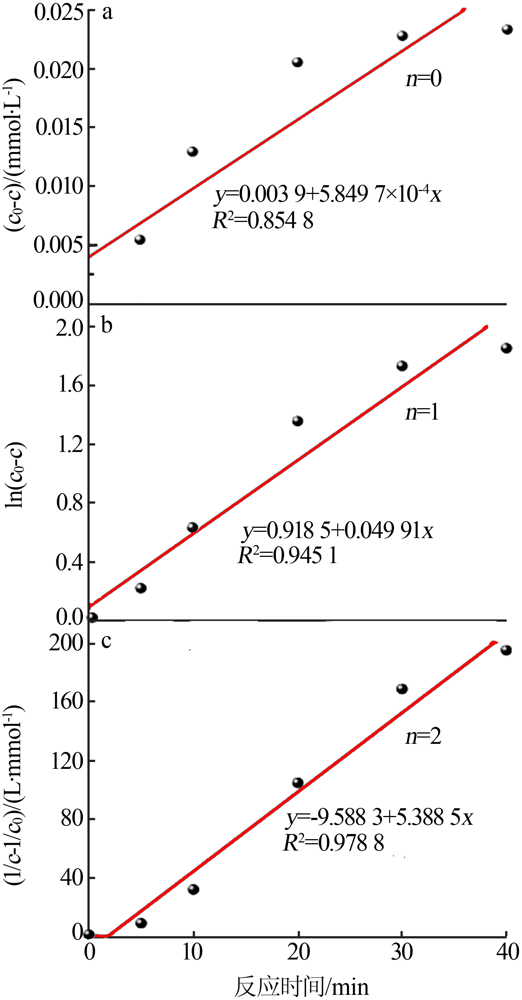

采用简单的化学浴沉积法（CBD）制备出水合氢氧化镍[Ni（OH）₂·0.75H₂O]粉体。该粉体具有微/纳构造特征,整体呈现出无规则微米级颗粒状形貌,由纳米片自组装而成。考察了水合氢氧化镍作为催化剂活化单过硫酸氢钾（PMS）降解亚甲基蓝（MB）溶液的性能。结果表明,Ni（OH）₂·0.75H₂O/PMS 复合体系具有良好的降解MB溶液的能力,其对MB的降解率可达84.33%;而相同条件下Ni（OH）₂·0.75H₂O或PMS单一体系对MB的降解率仅为9.46%和21.19%。MB 溶液的降解率随反应体系中PMS用量的增加而提高,随MB初始浓度的增加而降低,随催化剂用量的增加先增加而后维持不变。Ni（OH）₂/PMS体系中引入C₂O₄^2-或PO₄^3-阴离子会抑制MB溶液的降解,抑制率分别为65.77%和16.44%,但NO₃^-的引入对MB的降解无抑制。自由基俘获结果证实,·SO₄^-是参与直接氧化降解MB的主要活性中间体;动力学分析表明氢氧化镍催化活化PMS降解MB溶液的反应为二级反应,其表观反应速率常数k=5.39 L/（mmol·min）。

关键词: 化学浴沉积法, 氢氧化镍, 单过硫酸氢钾, 催化降解, 亚甲基蓝

Abstract:

Powder nickel hydroxide hydrate（Ni（OH）₂·0.75H₂O）was successfully prepared by a simple chemical bath depo-sition（CBD） method.The sample exhibited a micro/nano hierarchical structure.Namely,these powders presented irregular granule appearance with micron-size,which were actually made up of many nano-flakes.The performance of powdered nickel hydroxide hydrate used as catalyst for decomposition of methylene blue（MB） in aqueous solution with potassium monopersul-fate（PMS） was investigated.The results showed that the Ni（OH）₂·0.75H₂O/PMS composite system had an outstanding cata-lytic ability in MB degrading.The degradation rate of MB was 84.33%.Under the same conditions,the degradation rates of MB by Ni（OH）₂·0.75H₂O or PMS were only 9.46% and 21.19%,respectively.The degradation rate of MB solution increased with the increase of the amount of PMS in the reaction system and decreased with the increase of the initial concentration of MB,which also increased firstly and then remained unchanged with the increase of the amount of catalyst.The introduction of C₂O₄^2- 或 PO₄^3- anion into Ni（OH）₂/PMS system could inhibit the degradation of MB solution,and the inhibition rates were 65.77% and 16.44%,respectively,but the introduction of NO₃^- had no inhibition on the degradation of MB.The results of free radical capture confirmed that ·SO₄ ^- was the main active intermediate involved in the direct oxidative degradation of MB.Kinetic analysis showed that the degradation of MB solution by PMS catalyzed by nickel hydroxide was a second-order reaction,and its apparent reaction rate constant k=5.39 L/（mmol·min）.

Key words: chemical bath deposition method, nickel hydroxide, potassium monopersulfate, catalytic degradation, methylene blue

中图分类号:

TQ138.13

夏强,廖小刚,李纲. 化学浴沉积法制备氢氧化镍及其催化过一硫酸盐降解亚甲基蓝[J]. 无机盐工业, 2021, 53(10): 119-124.

Xia Qiang,Liao Xiaogang,Li Gang. Degradation of methylene blue by catalytic peroxymonosulfate with Ni（OH）₂synthesized through chemical bath deposition method[J]. Inorganic Chemicals Industry, 2021, 53(10): 119-124.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 19

[1]	Wang Jianlong, Chen Hai. Catalytic ozonation for water and waste-water treatment:Recent advances and perspective[J]. Science of The Total Environment, 2020, 704.Doi: 10.1016/j.scitotenv.2019.135249. doi: 10.1016/j.scitotenv.2019.135249
[2]	Ghauch A, Tuqan A M. Oxidation of bisoprolol in heated persulfate/H₂O systems:Kinetics and products[J]. Chemical Engineering Jo-urnal, 2012, 183:162-171.
[3]	Wang Jianlong, Wang Shizong. Activation of persulfate(PS) and pero-xymonosulfate(PMS) and application for the degradation of emerg-ing contaminants[J]. Chemical Engineering Journal, 2018, 334:1502-1517. doi: 10.1016/j.cej.2017.11.059
[4]	施周, 曾寒轩, 邓林. 钴铁镍三元水滑石催化PMS降解水中刚果红[J]. 环境工程学报, 2017, 11(9):4903-4909.
[5]	汪志. 单过硫酸氢钾复合盐(Oxone)活化技术研究进展[J]. 化学工程与装备, 2019(10):238-240.
[6]	Wang Jiaqi, Hasaer B, Yang Min, et al. Anaerobically-digested slu-dge disintegration by transition metal ions-activated peroxymono-sulfate(PMS) :Comparison between Co²⁺,Cu²⁺,Fe²⁺ and Mn²⁺[J]. Science of the Total Environment, 2020, 713.Doi: 10.1016/j.scito-tenv.2020.136530. doi: 10.1016/j.scito-tenv.2020.136530
[7]	施周, 衣启航, 卜令君. 镍铁氧体催化过硫酸氢钾对奥卡西平的降解研究[J]. 湖南大学学报:自然科学版, 2016, 43(6):124-129.
[8]	Liu Yangxian, Wang Yan, Wang Qian, et al. Simultaneous removal of NO and SO₂ using vacuum ultraviolet light(VUV)/heat/peroxy-monosulfate(PMS)[J]. Chemosphere, 2018, 190:431-441. doi: S0045-6535(17)31592-8 pmid: 29024887
[9]	周骏, 肖九花, 肖冬雪, 等. 热/可见光联合活化单过氧硫酸氢盐光敏降解罗丹明B[J]. 应用化工, 2015, 44(3):397-400.
[10]	翟俊, 柳沛松, 赵聚姣. 过一硫酸盐碱催化处理染料废水[J]. 中国环境科学, 2020, 40(2):647-652.
[11]	Farshid Ghanbari, Masoumeh Khatebasreh, Mostafa Mahdavianpo-ur, et al. Oxidative removal of benzotriazole using peroxymonosul-fate/ozone/ultrasound:Synergy,optimization,degradation inter-mediates and utilizing for real wastewater[J]. Chemosphere, 2020, 244.Doi: 10.1016/j.chemosphere.2019.125326. doi: 10.1016/j.chemosphere.2019.125326
[12]	张笑丛, 王琮, 吴松海. 不同形貌氧化钴活化过一硫酸盐降解硝基酚[J]. 化学工业与工程, 2020, 37(6).Doi: 10.13353/j.issn.1004.9533.20200112. doi: 10.13353/j.issn.1004.9533.20200112
[13]	Jian Songzan, Sun Shengrui, Zeng Yi, et al. Highly efficient persul-fate oxidation process activated with NiO nanosheets with domina-ntly exposed{110} reactive facets for degradation of RhB[J]. App-lied Surface Science, 2020, 505.Doi: 10.1016/j.apsusc.2019.1443318. doi: 10.1016/j.apsusc.2019.1443318
[14]	Yan Pengwei, Shen Jimin, Wang Shuyu, et al. Removal of 2,6-di-chlorophenol in water by CuO activated peroxymonosulfate:Effici-ency,mechanism and degradation pathway[J]. Separation and Puri-fication Technology, 2021, 254.Doi: 10.1016/j.seppur.2020.117630. doi: 10.1016/j.seppur.2020.117630
[15]	Sun Zhiming, Liu Xiaorui, Dong Xiongbo, et al. Synergistic activa-tion of peroxymonosulfate via in situ growth FeCo₂O₄ nanoparticles on natural rectorite:Role of transition metal ions and hydroxyl groups[J]. Chemosphere, 2021, 263.Doi: 10.1016/j.chemosphere.2020.127965. doi: 10.1016/j.chemosphere.2020.127965
[16]	Tian Xike, Tian Chen, Nie Yulun, et al. Controlled synjournal of dan-delion-like NiCo₂O₄ microspheres and their catalytic performance for peroxymonosulfate activation in humic acid degradation[J]. Chemical Engineering Journal, 2018, 331:144-151. doi: 10.1016/j.cej.2017.08.115
[17]	张明明, 李静, 龚焱, 等. 铁酸锰纳米球修饰石墨相氮化碳光催化活化过一硫酸盐去除双酚A[J]. 环境工程学报, 2019, 13(1):9-19.
[18]	Kosmulski Marek. Compilation of PZC and IEP of sparingly solu-ble metal oxides and hydroxides from literature[J]. Advances in Co-lloid and Interface Science, 2009, 152(1/2):14-25.
[19]	曾琪静, 文方, 杨静. 高级氧化技术降解双酚A研究进展[J]. 应用化工, 2018, 47(11):2500-2504.
