空心钛酸钡的制备及其形成机理

doi:10.11962/1006-4990.2020-0141

摘要/Abstract

摘要：

以二氧化钛（TiO₂）和八水合氢氧化钡[Ba（OH）₂·8H₂O]为原料,采用水热合成法,成功制备出具有四方相晶型和空心形貌结构的钛酸钡粉体。利用透射式电子显微镜（TEM）和X射线衍射（XRD）对样品的形貌结构和晶型做了表征,通过研究反应过程中钛酸钡粉体的结构和晶型随时间的变化过程,对空心钛酸钡的形成机理做了详细的探讨,并考察了不同反应温度和钡浓度对钛酸钡粉体结晶和生长的影响。研究结果表明：反应温度和钡浓度会影响钛酸钡粉体的晶型和形貌,并以此提出了一种空心钛酸钡的形成机理;当反应温度为180 ℃、钡浓度为3.0 mmol/L时,能获得粒径分布均匀的四方相晶型的空心钛酸钡粉体。

关键词: 空心钛酸钡, 结晶, 二氧化钛

Abstract:

Barium titanate powders with tetragonal phase polymorph and hollow morphology were successfully synthesized by hydrothermal synthesis using titanium dioxide（TiO₂） and eight hydrated barium hydroxide [Ba（OH）₂·8H₂O] as raw materi-als.The morphologies,structure and polymorph of the products were characterized by transmission electron microscopy（TEM）and X-ray diffraction（XRD）,and the formation mechanism of hollow barium titanate were discussed in detail through the study of the dynamic change of the structure and polymorph of barium titanate powders with time in the reaction process.Effects of different reaction temperature and barium concentration on the crystallization and growth of barium titanate were also investigated.Results showed that the reaction temperature and the barium concentration affected the crystal structure and morphology of barium titanate powders,and then the formation mechanism of hollow barium titanate was proposed.Under the conditions of reaction temperature of 180 ℃ and barium concentration of 3.0 mmol/L,uniform particle size distribution of hol-low barium titanate powders with tetragonal phase polymorph could be obtained.

Key words: hollow barium titanate, crystallization, titanium dioxide

中图分类号:

TQ132.35

吴亚丽,吴怡含,张瑞敏,史晓宇,董鑫. 空心钛酸钡的制备及其形成机理[J]. 无机盐工业, 2021, 53(2): 51-54.

Wu Yali,Wu Yihan,Zhang Ruimin,Shi Xiaoyu,Dong Xin. Preparation and formation mechanism of hollow barium titanate[J]. Inorganic Chemicals Industry, 2021, 53(2): 51-54.

图/表 6

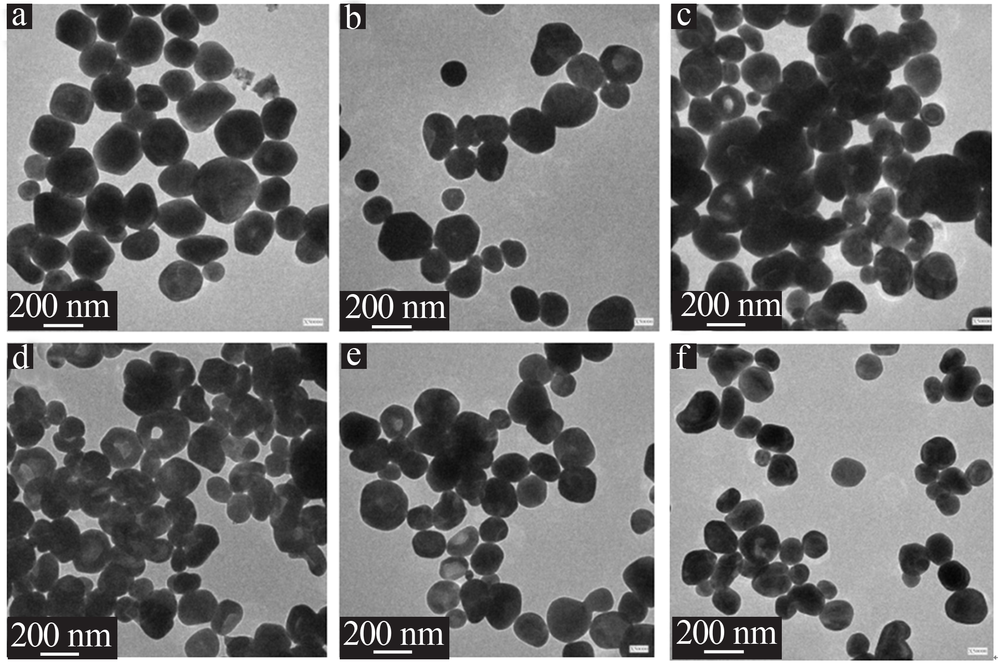

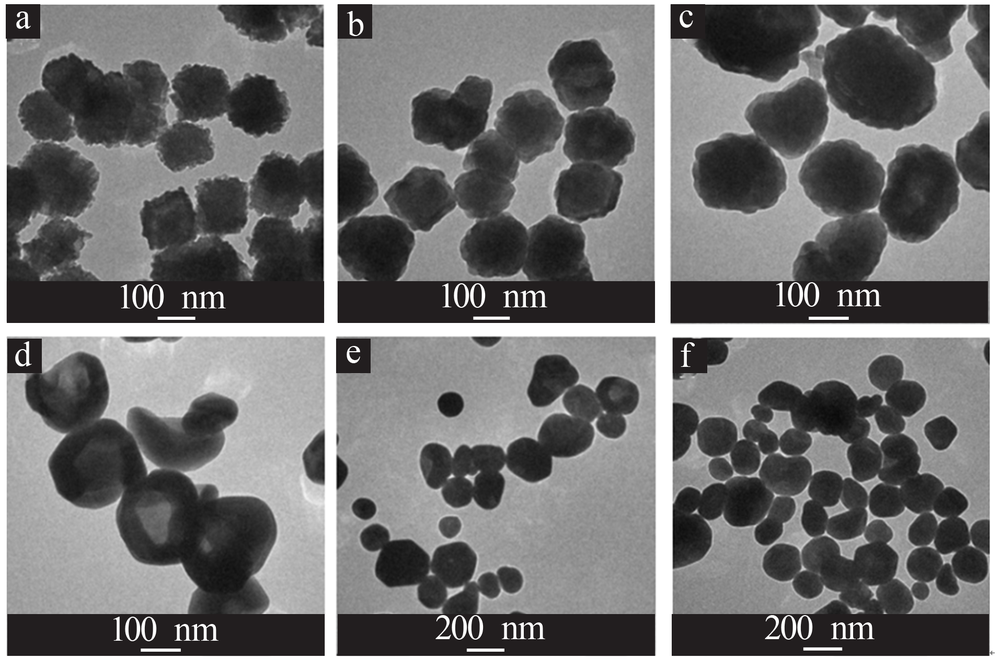

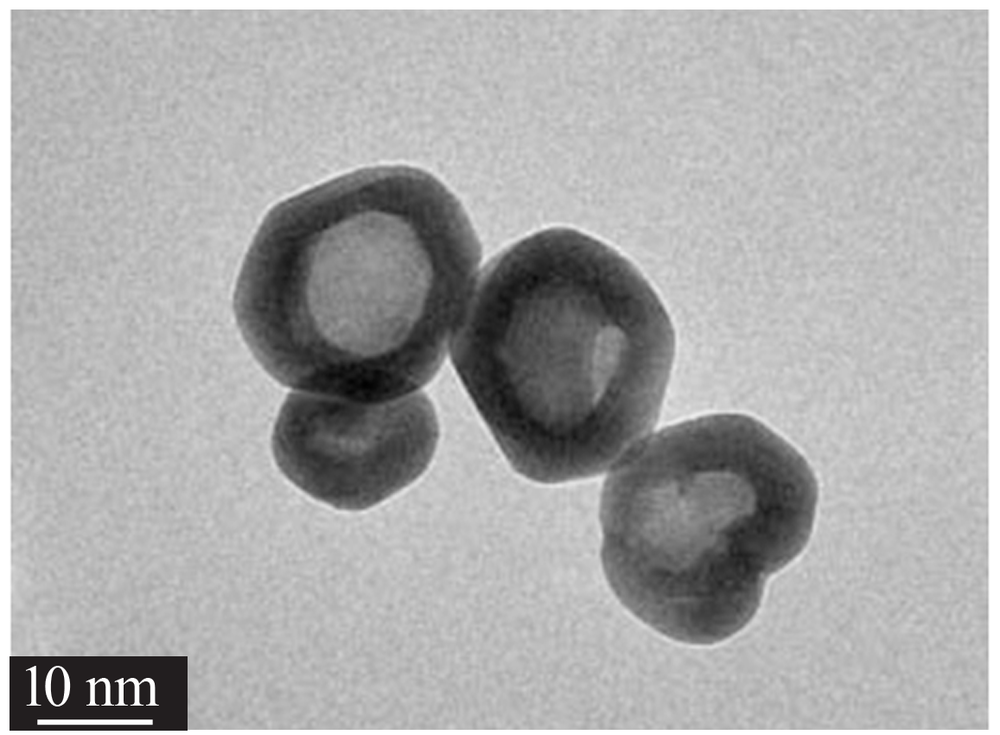

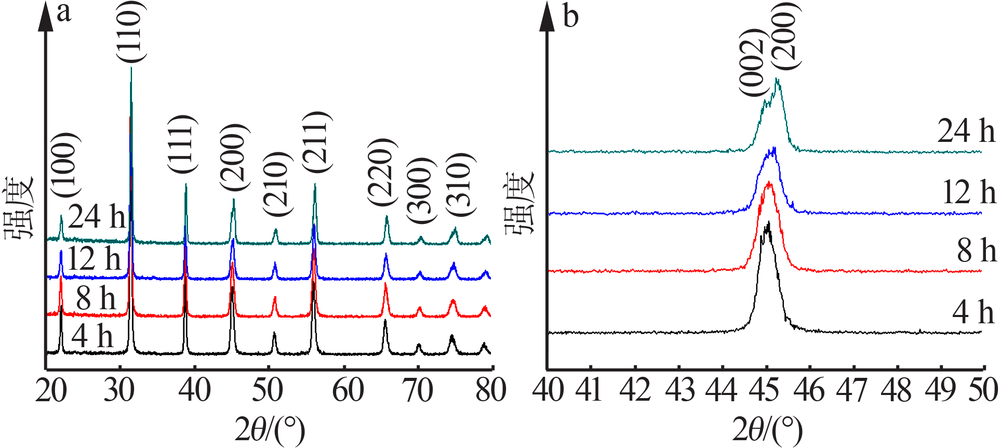

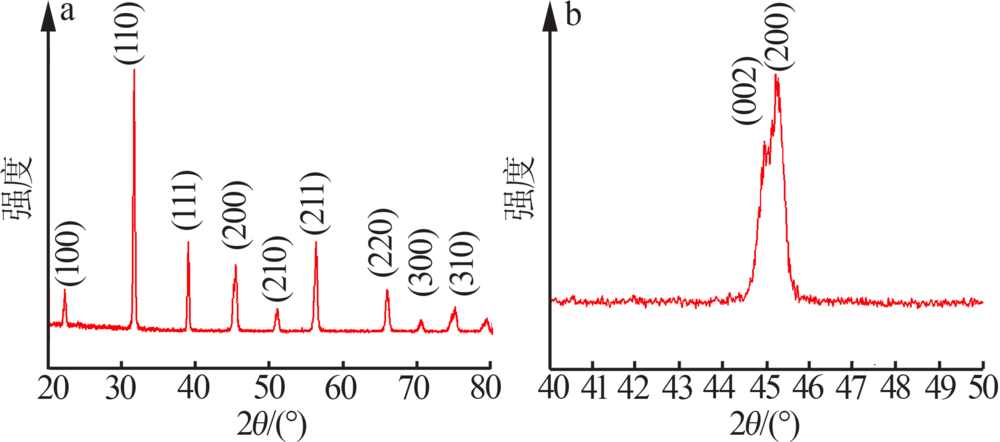

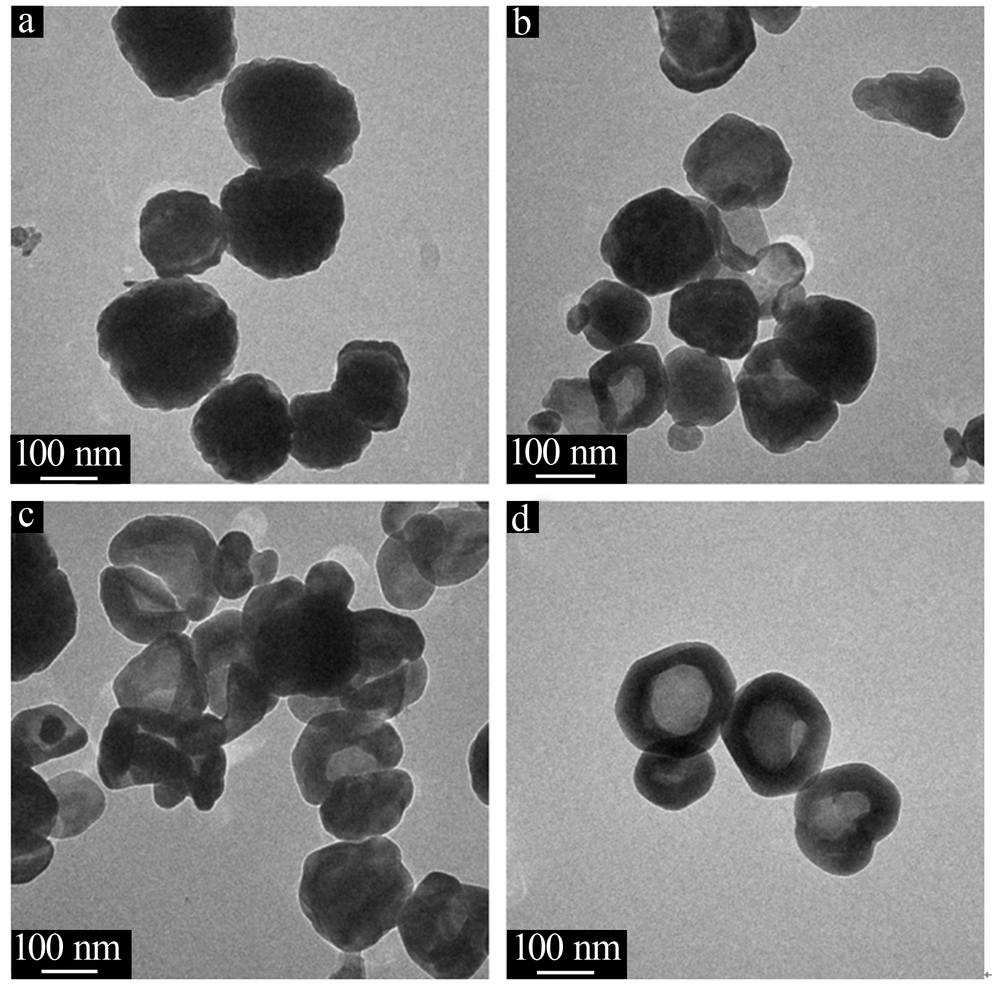

图1

图2

图3

图4

图5

图6

参考文献 14

[1]	Zhang Lei, Wen Jiaxin, Zhang Zixi, et al. Enhanced dielectric pro-perties of BaTiO₃ based on ultrafine powders by two stepcalcina-tion[J]. Physica B: Condensed Matter., 2019,560:155-161.
[2]	Bi Meihua, Hao Yanan, Zhang Jiameng, et al. Particle size effect of BaTiO₃ nanofillers on the energy storage performance of polymer nanocomposites[J]. Nanoscale, 2017,42(9):16386-16395.
[3]	Gomes M A, Lima A S, Eguiluz K I B, et al. Wet chemical synjournal of rare earth-doped barium titanate nanoparticles[J]. Journal of Ma-terials Science, 2016,51(10):4709-4727.
[4]	左悦, 成明亮, 张康, 等. BaTiO₃/NiFe₂O₄/PANI三元纳米复合材料的制备及吸波性能研究[J].化工新型材料, 2019(7):125-129.
[5]	展红全, 邓册, 吴传琦, 等. 新颖十二面体钛酸钡纳米晶体的水热生长机理[J]. 材料导报, 2019,33:98-101.
[6]	Bowland, C C, Sodano, H A. Hydrothermal synjournal of tetragonal phase BaTiO₃ on carbon fiber with enhanced electromechanical coupling[J]. Journal of Materials Science, 2017,52(13):7893-7906.
[7]	章秋晨, 朱归胜, 徐华蕊, 等. 微波固相法合成四方相钛酸钡纳米粉体[J]. 功能材料, 2019,50(7):7008-7016.
[8]	凌云, 江伟辉, 刘健敏, 等. 非水解溶胶-凝胶法低温合成钛酸钡粉体[J]. 人工晶体学报, 2016,12:2801-2806.
[9]	Simon-Seveyrat L, Hajjaji A, Emziane Y, et al. Re-investigation of synhesis of BaTiO₃ by conventional solid-state reaction and oxalate coprecipitation route for piezoelectric applications[J]. Ceramics In-ternational, 2007,33(1):35-40.
[10]	徐军, 许杰, 孔旗. 钛酸钡和十三钛酸钡的水热法合成[J]. 武汉工程大学学报, 2015,37(6):42-45.
[11]	Pithan C, Hennings D, Waser R. Progress in the synjournal of nano-crystalline BaTiO₃ powders for MLCC[J]. International Journal of Applied Ceramic Technology. 2005,2(1):1-14.
[12]	展红全, 罗志云, 李小红, 等. 钛酸钡纳米粉体的水热合成研究[J]. 中国陶瓷, 2015,51(4):13-16.
[13]	范海龙, 朱归胜, 徐华蕊, 等. 常压水热合成钛酸钡纳米粉体的微波煅烧性能[J]. 桂林电子科技大学学报, 2019,39(5):420-424.
[14]	戴梦炜, 王芸, 潘茂植, 等. 空心/多孔微球制备技术研究进展[J]. 材料导报, 2013,27(5):80-86.
