负载改性钾长石吸附废水中苯酚的研究

doi:10.11962/1006-4990.2020-0135

摘要/Abstract

摘要：

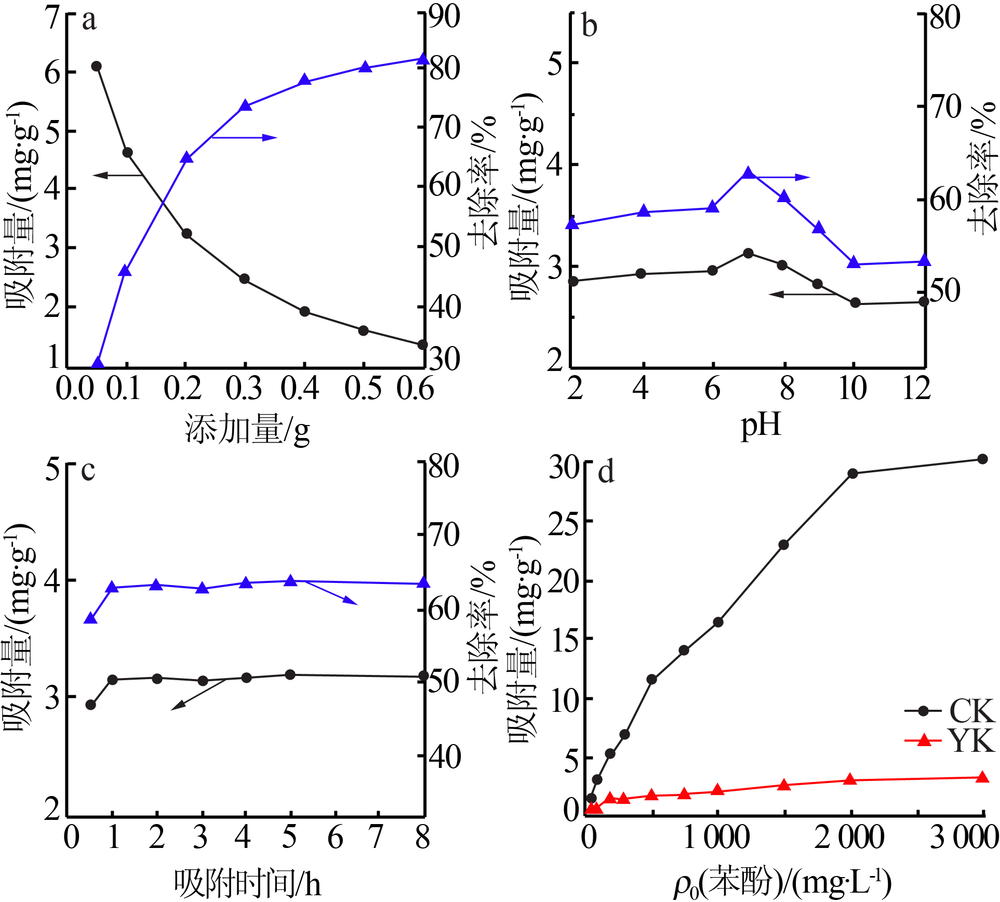

以钾长石为原料,采用氧化钙和硅酸钠对其进行负载,使其具有更多的微介孔结构,再用十六烷基三甲基溴化铵对其改性,合成得到的钾长石负载改性物（CK）对废水中苯酚进行吸附。考察了CK添加量、溶液初始pH、吸附时间、苯酚初始浓度等因素对CK吸附苯酚的影响,并结合动力学及热力学模型进行拟合探究其吸附机理。结果表明,苯酚去除率随着CK添加量的增加而增加;溶液呈中性时吸附效果较佳;吸附在1 h时开始趋于平衡;随着苯酚初始质量浓度（50~3 000 mg/L）的增加,CK对苯酚的吸附量可增至30.32 mg/g并趋于饱和,该值是原材料的9倍多。准二级动力学模型和Freundlich等温吸附模型能较好地描述CK对苯酚的吸附过程,说明该过程以化学吸附为主。Langmuir、Freundlich等温吸附模型均能说明钾长石经负载改性后有利于吸附废水中的苯酚。

关键词: 钾长石, 负载改性, 苯酚废水

Abstract:

Potassium feldspar was used as the raw material to loaded calcium oxide and sodium silicate for more micro-meso-porous,then it was modified with hexadecyl trimethyl ammonium bromide.The synthesized modifier loaded potassium feldspar （CK） was used to adsorb the phenol in wastewater.The effects of the amount of CK,initial pH of solution,adsorption time,initial concentration of phenol and other factors on the phenol adsorption of CK was investigated.In addation,the kinetic and thermodynamic models were used to investigate the adsorption mechanism.Results showed that the removal rate of phenol in-creased with the CK amount.The better adsorption effect was obtained in the neutral solution.Adsorption began to reach equi-librium at 1 h;with the increase of the initial concentration of phenol（50~3 000 mg/L）,the adsorption capacity of CK increa-sed to 30.32 mg/g and tended to saturation,which was 9 times higher than that of the raw material.Quasi-second-order kinetic model and Freundlich isothermal adsorption model can better describe the process of CK adsorption of phenol,which showed that chemical adsorption was the main process.Langmuir and Freundlich isothermal adsorption models showed that potassium feldspar was favorable to adsorb phenol in wastewater after loading modification.

Key words: potassium feldspar, load modification, phenol wastewater

中图分类号:

TQ131.13

韩琮,孙丽娜,张婷,朱慧霞,李玲. 负载改性钾长石吸附废水中苯酚的研究[J]. 无机盐工业, 2021, 53(2): 71-76.

Han Cong,Sun Lina,Zhang Ting,Zhu Huixia,Li Ling. Study on adsorption of phenol in wastewater by loading modified potassium feldspar[J]. Inorganic Chemicals Industry, 2021, 53(2): 71-76.

图/表 12

表1

图1

图2

图3

图4

表2

图5

图6

表3

图7

图8

表4

参考文献 22

[1]	丛轮刚, 南海娟, 王翠翠, 等. 煤化工综合废水处理技术及应用进展[J]. 环境工程, 2015,33(S1):20-24.
[2]	Zhang Na, Dang Ping, Sai Shijie, et al. Application of high-pressure flat membranes in coal chemical wastewater treatment[J]. Meteoro-logical and Environmental Research, 2019,10(5):63-65.
[3]	Pa Y K Y, Ayoko G A, Kurdi R, et al. Adsorption of phenolic compo-unds by organoclays:imp-lications for the removal of organic pollu-tants from aqueous media[J]. Journal of Colloid & Interface Science, 2013,406(18):196-208.
[4]	齐晓飞, 韩中坚. 煤化工行业酚类废水处理工艺探讨[J]. 上海化工, 2013,38(9):21-23.
[5]	舒世立, 和芹, 王磊, 等. 十六烷基三甲基溴化铵改性活性炭的制备及吸附苯酚研究[J]. 化学世界, 2018,59(12):801-808.
[6]	朱慧霞, 张婷, 韩琮, 等. 钾长石负载二氧化锰对Ni²⁺的吸附性能研究 [J]. 无机盐工业, 2020,52(1):44-48.
[7]	薛彦辉, 张桂斋, 胡满霞. 钾长石综合开发利用新方法[J].非金属矿,2005(4):48-50.
[8]	Tang J, Yang Z F, Yi Y J. Enhanced adsorption of methyl orange by vermiculite modified by cetyltrimethy lammonium bromide (CTMAB)[J]. Procedia Environmental Sciences, 2012,13.Doi: 10.1016/j.proenv.2012.01.207.
[9]	Yan Liangguo, Qin Lilu, Yu Haiqin, et al. Adsorption of acid dyes from aqueous solution by CTMAB modified bentonite:Kinetic and isotherm modeling[J]. Journal of Molecular Liquids, 2015,211:1074-1081. doi: 10.1016/j.molliq.2015.08.032
[10]	Zhu Runliang, Zhu Lizhong, Zhu Jianxi, et al. Sorption of naphtha-lene and phosphate to the CTMAB-Al13 intercalated bentoni-tes[J]. Journal of Hazardous Materials, 2009,168(2/3):1590-1594. doi: 10.1016/j.jhazmat.2009.03.057
[11]	Zhu Lizhong, Zhu Runliang. Simultaneous sorption of organic com-pounds and phosphate to inorganic-organic bentonites from wa-ter[J]. Separation and Purification Technology, 2006,54(1):71-76. doi: 10.1016/j.seppur.2006.08.009
[12]	Shu Yuehong, Li Laisheng, Zhang Qiuyun, et al. Equilibrium,ki-netics and thermodynamic studies for sorption of chlorobenzenes on CTMAB modified bentonite and kaolinite[J]. Journal of Hazar-dous Materials, 2009,173(1/2/3):47-53.
[13]	李晶, 邓昭平, 李霞. 氧化钙改性高岭土对垃圾渗滤液中氨氮的去除研究[J]. 化学通报, 2017,80(1):99-103.
[14]	张婷, 朱慧霞, 韩琮, 等. 碳羟基磷灰石/钾长石复合材料对镍的吸附性能研究[J]. 无机盐工业, 2020,52(2):30-34.
[15]	Zhou Y T, Nie H L, Branford W C, et al. Removal of Cu²⁺ from aque-ous solution by chitosan-coated magnetic nanoparticles modified with aketoglutaric acid [J]. Journal of Colloid and Interface Scien-ce, 2009,330(1):29-37.
[16]	陈望香, 李强, 闫俊杰, 等. CTMAB-磁性蛭石对邻苯二酚吸附特性的研究[J]. 工业水处理, 2019,39(4):58-61.
[17]	蓝梅, 王丽君, 张会宁, 等. 柠檬酸改性活性炭对水中Cr(Ⅳ)的吸附性能研究[J]. 水处理技术, 2018,44(9):80-85.
[18]	Gupta S S, Bhattacharyya K G. Removal of Cd(Ⅱ) form aqueous solution by kaolinite,montmorillonite and their poly(oxo zirconi-um) and tetrabutylammonium derivatives[J]. Journal of Hazard-ous Materials, 2006,128(2):247-257
[19]	Alshameri A, Yan C, Al-Ani Y, et al. An investigation into the ad-sorption removal of ammo-nium by salt activated Chinese(Hulao-du) natural zeolite:Kinetics,isotherms,and thermod-ynamics[J]. Journal of the Taiwan Institute of Chemical Engineers, 2014,45(2):554-564. doi: 10.1016/j.jtice.2013.05.008
[20]	Padmayathy V. Biosorption of nickel(Ⅱ) ions by baker′s yeast:Ki-netic thermodynamic and desorption studies[J]. Bioresource Tech-nology, 2007,99(8):3100-3109.
[21]	马宏飞, 李薇, 韩秋菊, 等. 废茶渣对Cr(Ⅵ)的等温吸附模型研究[J]. 科学技术与工程, 2012,12(25):323-325.
[22]	Jovanovic V, Dondur V, Damjanovic L, et al. lmproved materials for environmental application:Surfactant-modified zeoiltes[J]. Ma-terials Science Forum, 2006,518:223-228.

序号	因素				f/%
序号	A m（YK）∶ m（氧化钙）	B w（硅酸钠）/ %	C w（CTMAB）/ %	D 搅拌时间/ h	f/%
1	1∶0.3	4	1.2	0.5	52.85
2	1∶0.3	6	1.1	1.0	62.08
3	1∶0.3	8	1.0	2.0	51.55
4	1∶0.2	4	1.1	2.0	37.20
5	1∶0.2	6	1.0	0.5	41.47
6	1∶0.2	8	1.2	1.0	43.77
7	1∶0.4	4	1.0	1.0	43.47
8	1∶0.4	6	1.2	2.0	48.94
9	1∶0.4	8	1.1	0.5	53.75
K₁	55.49	44.51	48.52	49.36
K₂	40.81	50.83	51.01	49.77
K₃	48.72	49.69	45.50	45.90
R	14.68	6.32	5.51	3.87

样品	比表面积/（m²·g^-1）	总孔体积/（cm³·g^-1）	平均孔径/nm
YK	3.480 0	0.009 0	10.344 8
CK	72.034 5	0.172 2	9.562 1

准一级动力学方程	参数
准一级动力学方程	q_e/（mg·g^-1）	k₁/（mg·g^-1·min^-1）	R²
ln （q_m-q_t）=ln q_e-k₁t	0.076 0	0.004 1	0.361 0
准二级动力学方程	参数
准二级动力学方程	q_e /（mg·g^-1）	k₂/（g·g^-1·min^-1）	R²
t/q_t=1/k₂q_e²+t/q_e	3.196 9	0.193 5	0.999 9
颗粒内扩散方程	参数
颗粒内扩散方程	C	k_i /（mg·g^-1/2·min^-1/2）	R²
q_t=k_i t^1/2+C	3.026 2	0.060 8	0.309 3

Langmuir方程	参数
Langmuir方程	q_m /（mg·g^-1）	K_L/（L·mg^-1）	R²
ρ_e/q_e=ρ_e /q_m+1/K_Lq_m	47.824	0.000 6	0.961 1
Freundlich方程	参数
Freundlich方程	K_F /（mg·g^-1）	1/n	R²
ln q_e=ln K_F+ln ρ_e/n	0.095 2	0.746 7	0.985 2
