Au-Pd/ZrO2可见光下催化苯甲醇氧化反应条件探索

doi:10.11962/1006-4990.2019-0345

摘要/Abstract

摘要：

利用硼氢化钠还原法制备出Au-Pd/ZrO₂负载型双金属纳米催化剂,采用XRD、UV-vis DRS、TEM等手段对催化剂的结构、吸光能力、粒度、形貌等性能进行表征。结果显示,金、钯成功负载于二氧化锆上,且金、钯以球形颗粒均匀分散。可见光照射下,研究了Au-Pd/ZrO₂双金属纳米催化剂对苯甲醇氧化生产苯甲醛反应的适宜条件。实验结果显示,可见光照射下,反应时间为12 h、反应温度为（35±3） ℃、5.0 mL异丙醇为溶剂、50 mg Au-Pd（2:1）/ZrO₂为催化剂、1.0 mmol氢氧化钾为碱源的条件下,苯甲醇氧化生产苯甲醛产率最佳。

关键词: Au-Pd/ZrO₂, 双金属催化剂, 苯甲醇, 光催化, 苯甲醛

Abstract:

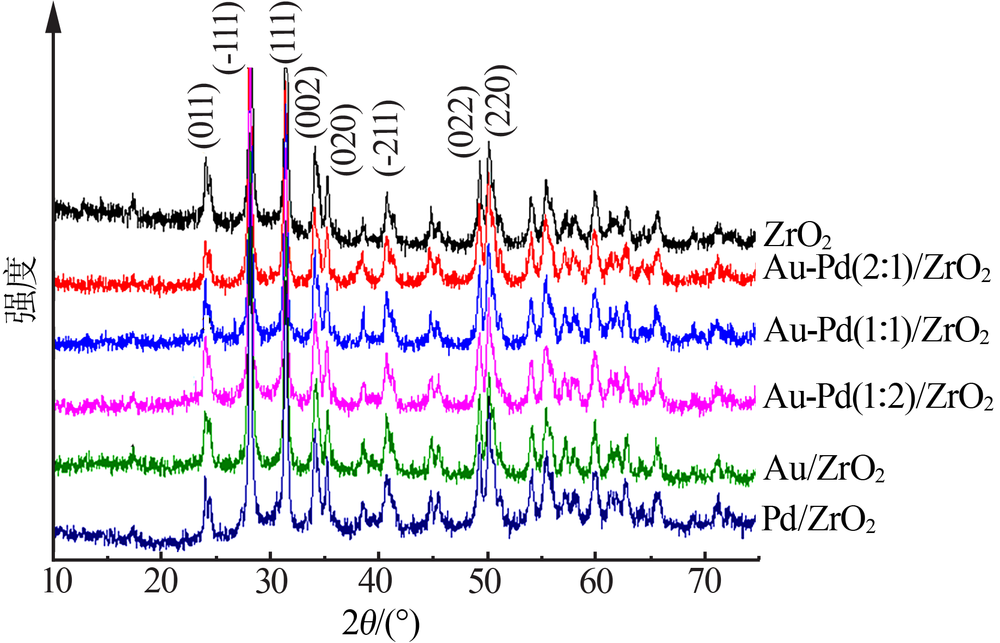

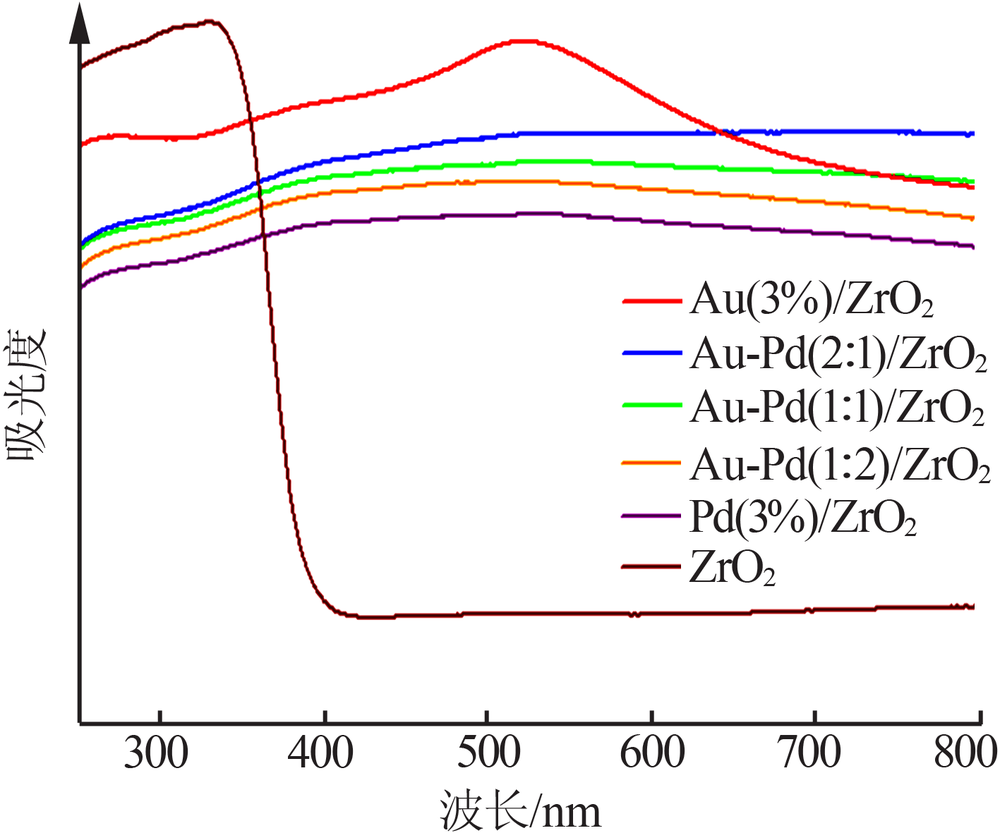

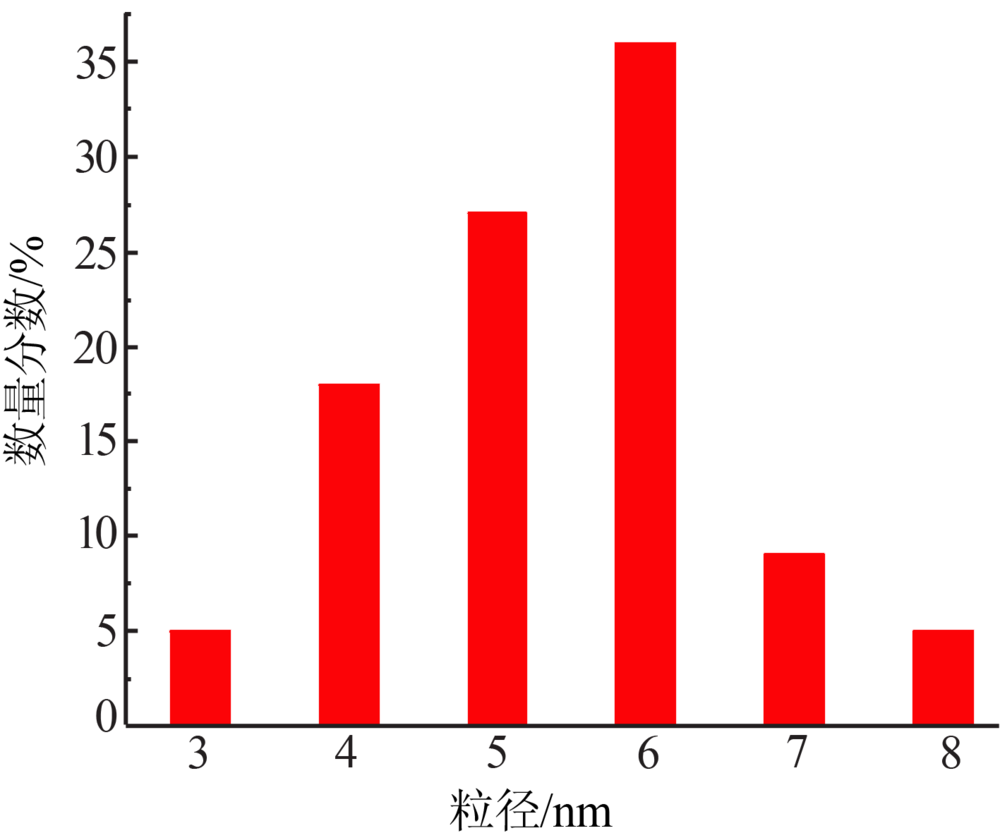

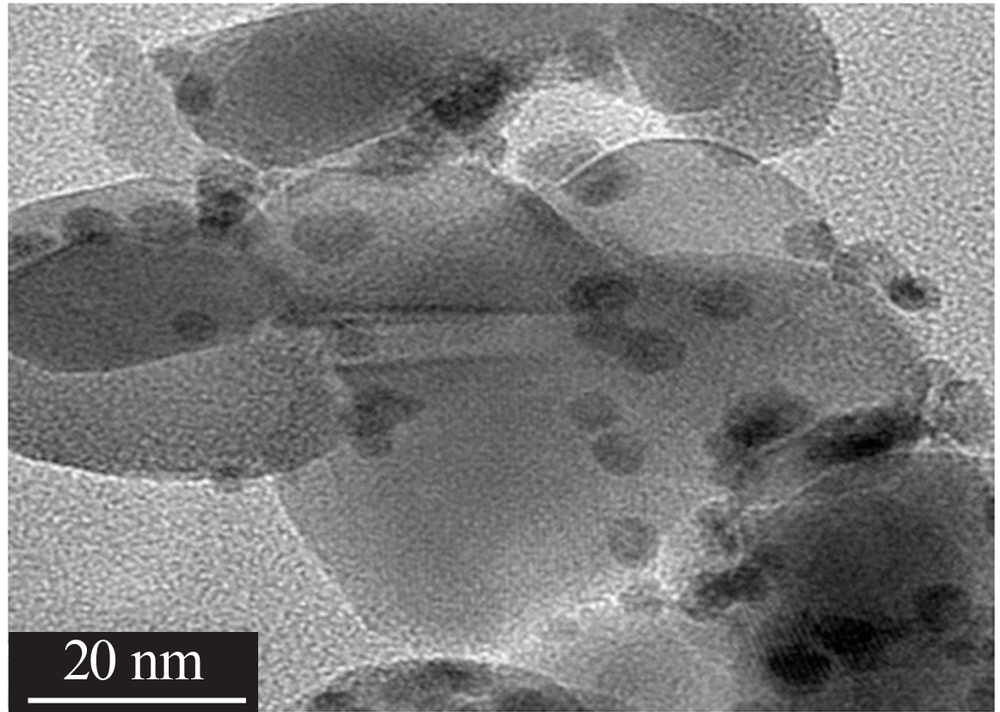

Au-Pd/ZrO₂ supported bimetallic nanocatalysts were prepared by the reduction method of NaBH₄.The structure,absorbance,particle size and morphology of the catalysts were characterized by means of X-ray diffraction（XRD）,UV-vis diffuse reflectance spectroscopy（UV-vis DRS） and transmission electron microscopy（TEM） etc..The results indicated that the Au and Pd were loaded on ZrO₂ successfully,and Au and Pa were uniformly dispersed as spherical particles.Under visible light irradiation,the suitable conditions were studied for the oxidation of benzyl alcohol to benzaldehyde by Au-Pd/ZrO₂ bimetallic nanocatalysts.The experiment results showed that the best yield of oxidation preparing benzaldehyde by benzyl al-cohol was obtained,under the conditions as follows：visible light irradiation,reaction time of 12 h,reaction temperature of （35±3） ℃,isopropanol of 5.0 mL as the solvent,Au-Pd（2:1）/ZrO₂ of 50 mg as the catalyst and NaOH of 1.0 mmol as the basic source.

Key words: Au-Pd/ZrO₂, bimetallic catalyst, benzyl alcohol, photocatalysis, benzaldehyde

中图分类号:

TQ134.12

白红亮,王俊生,王艳. Au-Pd/ZrO₂可见光下催化苯甲醇氧化反应条件探索[J]. 无机盐工业, 2020, 52(4): 100-103.

Bai Hongliang,Wang Junsheng,Wang Yan. Study on oxidation reacting conditions of benzyl alcohol catalyzed by Au-Pd/ZrO₂ under visible light[J]. Inorganic Chemicals Industry, 2020, 52(4): 100-103.

图/表 7

图1

图2

图3

图4

表1

表2

图5

参考文献 18

[1]	Huang G, Luo J, Deng C C , et al. Catalytic oxidation of toluene with molecular oxygen over mangmanese tetraphenlyporphyrin supported on chitosan[J]. Applied Catalysis A:General, 2008,338(1/2):83-86. doi: 10.1016/j.apcata.2007.12.027
[2]	Mitsudome T, Mikami Y, Funai H , et al. Oxidant-free alcohol dehy-drogenation using a reusable hydrotalcite-supported silver nano-particles catalyst[J]. Angew.Chem.Int.Ed., 2007,47(1):138-141.
[3]	Zhao G, Deng M, Jiang Y , et al. Microstructured Au/Ni-fiber cata-lyst;galvanic reaction preparation and catalytic performance for low-temperature gas-phase alcohol oxidation[J]. Journal of Cataly-sis, 2013,301:46-53.
[4]	Fan J, Dai Y, Li Y , et al. Low-temperature,highly selective,gas-phase oxidation of benzyl alcohol over mesoporous K-Cu-TiO₂ with stable copper(Ⅰ) oxidation state[J]. Journal of the American Che-mical Society, 2009,131(43):15568-15569. doi: 10.1021/ja9032499 pmid: 19860474
[5]	Bond G C, Sermon P A . Gold catalysts for olefin hydrogenation[J]. Gold Bull., 1973,6(4):102-105.
[6]	Haruta M, Kobayashi T, Sano H , et al. Novel gold catalysts for the oxidation of carbon monoxide at a temperature far below 0 ℃[J]. Chem Lett., 1987,16(2):405-408.
[7]	Hutchings G J . Vapor phase hydorchlorination of acetylene:correla-tion of catalytic activity of supported metal chloride catalysts[J]. J.Catal., 1985,96(1):292-295.
[8]	Kawabata T, Shinozuka Y, Ohishi Y , et al. Nickel containing Mg-Al hydrotalcite-type anionic clay catalyst for the oxidation of alcohols with molecular oxygen[J]. J.Mol.Catal.A:Chem., 2005,236(1):206-215.
[9]	Pina C D, Falletta E, Rossi M . Update on selective oxidation using gold[J]. Chem.Soc.Rev., 2012,41(1):350-369. doi: 10.1039/c1cs15089h pmid: 21727977
[10]	McEwan L, Julius M, Roberts S , et al. A review of the use of gold ca-talysts in selective hydrogenation reactions Lynsey McEwana[J]. Gold Bull., 2010,43(4):298-306. doi: 10.1007/BF03214999
[11]	Yang X F, Wang A Q, Wang Y L , et al. Unusual selectivity of gold catalysts for hydrogenation of1,3-butadiene toward cis-2-butene:A joint experimental and theoretical investigation[J]. J.Phys.Chem.C, 2010,114(7):3131-3139.
[12]	Shimizu K, Sato R, Satsuma A . Direct C-C cross-coupling of secon-dary and primary alcohols catalyzed by a gamma-alumina-suppo-rted silver subnanocluster[J]. Angew.Chem.Int.Ed., 2009,48:3982-3986.
[13]	Chen X, Zheng Z, Ke X , et al. Supported silver nanoparticles as photocatalysts under ultraviolet and visible light irradiation[J]. Green Chem., 2010,12(3):414-419. doi: 10.1039/b921696k
[14]	Fang W H, Chen J S, Zhang Q H , et al. Hydrotalcite-supported gold catalyst for the oxidant-free dehydrogenation of benzyl alcohol:studies on support and gold size effects[J]. Chemistry A European Journal, 2011,17(4):1247-1256. doi: 10.1002/chem.201002469 pmid: 21243691
[15]	Shao M W, Wang H, Zhang M L , et al. The mutual promotional ef-fect of Au-Pd bimetallic nanoparticles on silicon nanowires:A study of preparation and catalytic activity[J]. Appl.Phys.Lett., 2008,93:243110.
[16]	Schunemann S, van Gastel M, Tüysüz H . A CsPbBr₃/TiO₂ compo-site for visible-light-driven photocatalytic benzyl alcohol oxidation[J]. ChemSusChem, 2018,11:2057-2061. doi: 10.1002/cssc.201800679 pmid: 29790659
[17]	Song T, Park J E, Chung Y K . Rhodium-catalyzed synjournal of im-ines and esters from benzyl alcohols and nitroarenes:Chang in ca-talyst reactivity depending on the presence or absence of the pho-shine ligand[J]. The Journal of Organic Chemistry, 2018,83(7):4197-4203. doi: 10.1021/acs.joc.8b00197 pmid: 29536727
[18]	Wu J B, Shi R P, Qin Z F , et al. Selective oxidation of methanol to methyl formate over bimetallic Au-Pd nanoparticles supported on SiO₂[J]. Journal of Fuel Chemistry and Technology, 2019,47(7):780-790.

序号	溶剂	产率/%（光照）	产率/%（暗）
1	均三甲苯	30.5	8.8
2	甲苯	34.2	10.6
3	异丙醇	62.0	20.5
4	N,N-二甲基甲酰胺	20.5	5.6
5	二甲基亚砜	18.8	3.2

序号	催化剂	碱	产率/%（光照）	产率/%（暗）
1	Au-Pd（2:1）/ZrO₂	Na₂CO₃	45.2	18.0
2	Au-Pd（2:1）/ZrO₂	K₂CO₃	48.4	20.2
3	Au-Pd（2:1）/ZrO₂	CsCO₃	56.2	25.0
4	Au-Pd（2:1）/ZrO₂	KOH	90.2	35.0
5	Au-Pd（2:1）/ZrO₂	NaOH	88.5	31.0
6	ZrO₂	KOH	8.0	3.2
7	Au/ZrO₂	KOH	50.6	20.8
8	Pd/ZrO₂	KOH	20.2	8.2
9	Au-Pd（1:1）/ZrO₂	KOH	62.0	20.2
10	Au-Pd（2:1）/ZrO₂	KOH	90.2	35.0
11	Au-Pd（1:2）/ZrO₂	KOH	78.0	31.0
