无机盐工业 ›› 2019, Vol. 51 ›› Issue (8): 37-39.doi: 10.11962/1006-4990.2018-0561

• 工业技术 • 上一篇    下一篇

硝酸与氯化钾直接制取硝酸钾工艺研究

史忠录,杜佩英,于雪峰,牛莉慧,汪万清

  1. 青海盐湖工业股份有限公司,青海省盐湖资源综合利用重点实验室,国家盐湖资源综合利用工程技术研究中心,青海省盐湖资源综合利用工程技术研究中心,青海格尔木 816099
  • 收稿日期:2019-02-25 出版日期:2019-08-10 发布日期:2020-06-15
  • 作者简介:史忠录(1976— ),男,本科,高级工程师,主要从事盐化工生产与技术研究工作;E-mail:237056776@qq.com。
  • 基金资助:
    青海省应用基础研究项目:反应萃取耦合制备熔盐级硝酸钾过程研究(2018-ZJ-738)

Study on direct preparation of potassium nitrate from nitric acid and potassium chloride

Shi Zhonglu,Du Peiying,Yu Xuefeng,Niu Lihui,Wang Wanqing

  1. Qinghai salt lake industry Co.,Ltd.,Key Laboratory of Comprehensive Utilization of Qinghai Salt Lake Resources,National Engineering Research Center for Comprehensive Utilization of Salt Lake Resources,Qinghai Salt Lake Resource Comprehensive Utilization Engineering Technology Research Center,Golmud 816099,China
  • Received:2019-02-25 Online:2019-08-10 Published:2020-06-15

摘要:

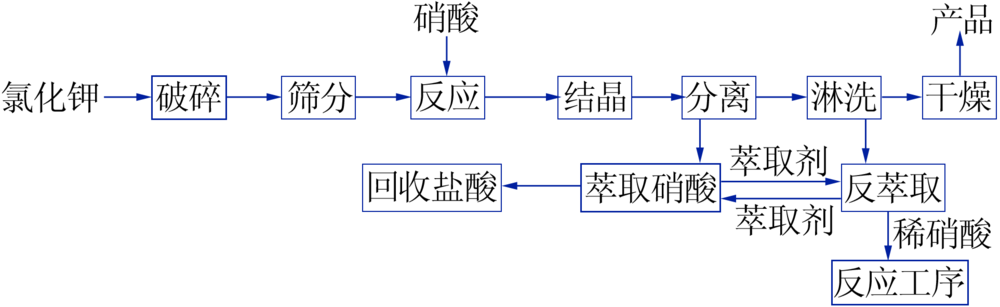

利用青海盐湖工业股份有限公司(简称“公司”)自产的硝酸和氯化钾制取高纯度熔盐级硝酸钾,通过反应结晶得到的固相即为产品硝酸钾;过滤后的母液通过萃取法将反应生成的盐酸和过量的硝酸分离,萃取时先萃取硝酸,萃取出的稀硝酸作为原料和氯化钾反应可以重复利用,萃取出的盐酸作为副产物可以在公司内部其他单位当作原料使用,这样既可以降低企业生产成本,同时也起到保护环境的作用,并为企业创造更大的经济效益。

关键词: 萃取, 熔盐级, 硝酸钾

Abstract:

High purity molten salt grade potassium nitrate was prepared by the reaction of nitric acid and potassium chloride self-produced by Qinghai salt lake industry Co.,Ltd.(referred to as “Company”).The solid phase obtained by reaction crystallization of highpurity molten salt grade potassium nitrate was potassium nitrate product.The hydrochloric acid produced by the reaction was separated from the excess nitric acid in the filtered mother liquor by extraction.Nitric acid was extracted first,and the extracted dilute nitric acid could be reused as a raw material by reaction with potassium chloride.Extracted hydrochloric acid as a by-product could be used as a raw material in other units within the Company.It could not only reduce the production costs of the enterprise,but also protect the environment and could create greater economic benefits for the enterprise.

Key words: extraction, molten salt grade, potassium nitrate
